Asus P8P67 LX User Manual

1-13 Chapter 1: Product introduction

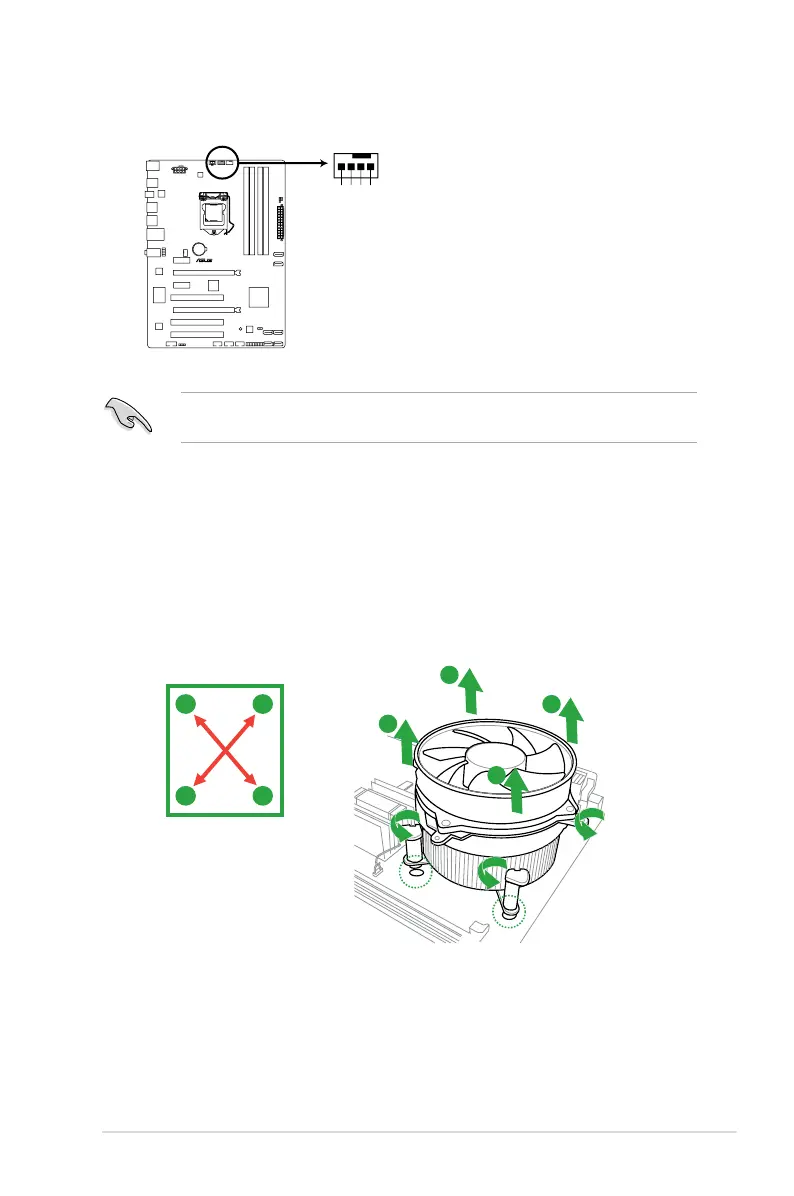

3. Connect the CPU fan cable to the connector on the motherboard labeled CPU_FAN.
Do not forget to connect the CPU fan connector! Hardware monitoring errors can occur if
you fail to plug this connector.
1.6.3 Uninstalling the CPU heatsink and fan
To uninstall the CPU heatsink and fan:
1. Disconnect the CPU fan cable from the connector on the motherboard.
2. Rotate each fastener counterclockwise.
3. Pull up two fasteners at a time in a diagonal sequence to disengage the heatsink and
fan assembly from the motherboard.
A
A
B
B
A
A
B
B
P8P67 LX
CPU_FAN
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
P8P67 LX CPU fan connector

Asus P8P67 LX Specifications

General

Chipset	Intel P67
Socket	LGA 1155
Memory Type	DDR3
Maximum Memory	32GB
Storage Interfaces	4 x SATA 3Gb/s, 2 x SATA 6Gb/s
Form Factor	ATX
Memory Standard	DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4
Expansion Slots	2 x PCIe 2.0 x1, 3 x PCI
LAN	Realtek 8111E Gigabit LAN
Audio	8-Channel High Definition Audio
USB Ports	12 (6 x USB 2.0, 6 x USB 3.0)
