ASUS P8P67 LX 1-34
1.12 Onboard LEDs
1. Standby Power LED

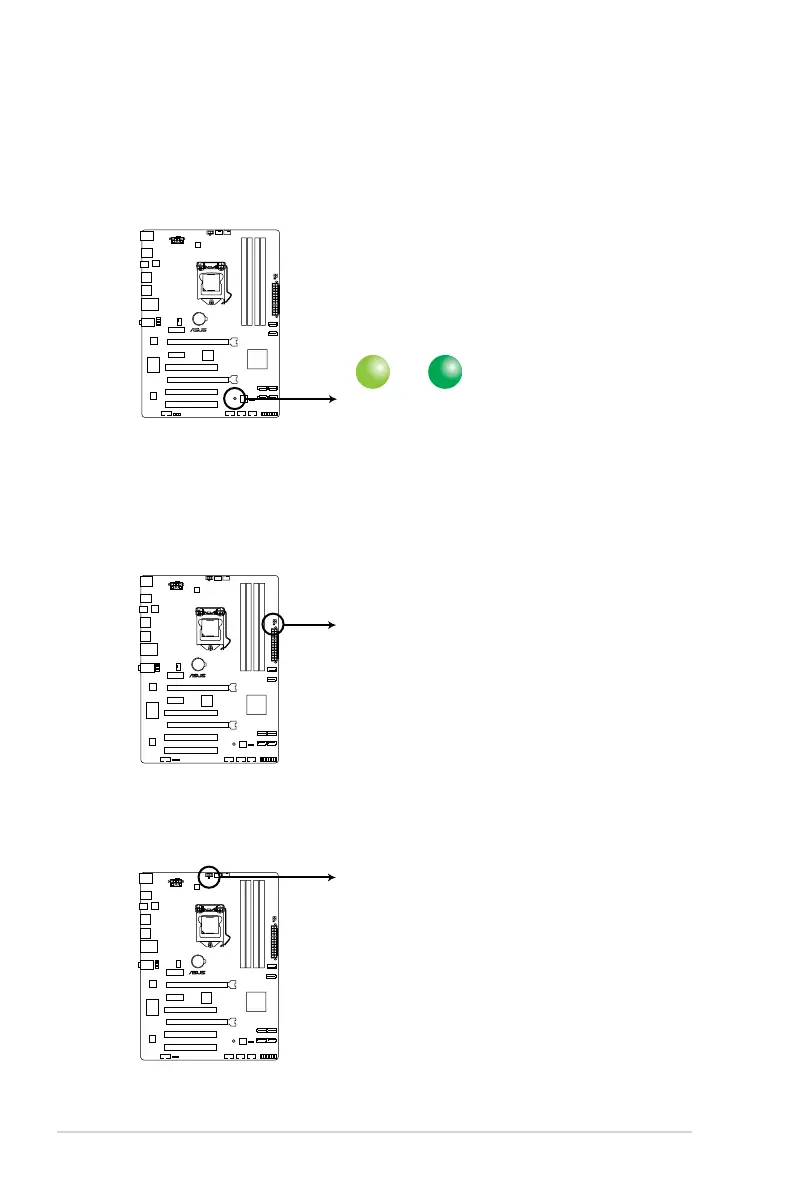

The motherboard comes with a standby power LED that lights up to indicate that the
system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should
shut down the system and unplug the power cable before removing or plugging in any
motherboard component. The illustration below shows the location of the onboard LED.
2. DRAM LED
DRAM LED checks the DRAM in sequence during motherboard booting process. If an
error is found , the LED next to the error device will continue lighting until the problem
is solved. This user-friendly design provides an intuitional way to locate the root
problem within a second.
3. Turbo Key II LED
The Turbo Key II LED lights when the Turbo Key II switch is turned to Enable.
P8P67 LX
P8P67 LX Turbo Key II LED
O2LED2
P8P67 LX
SB_PWR
ON
Standby Power Powered Off
OFF
P8P67 LX Onboard LED
P8P67 LX
P8P67 LX DRAM LED
DRAM LED
