Asus P8P67 LX User Manual

ASUS P8P67 LX 1-14
1.7 System memory
1.7.1 Overview
The motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Modules
(DIMM) sockets.
A DDR3 module has the same physical dimensions as a DDR2 DIMM but is notched
differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are developed for
better performance with less power consumption.

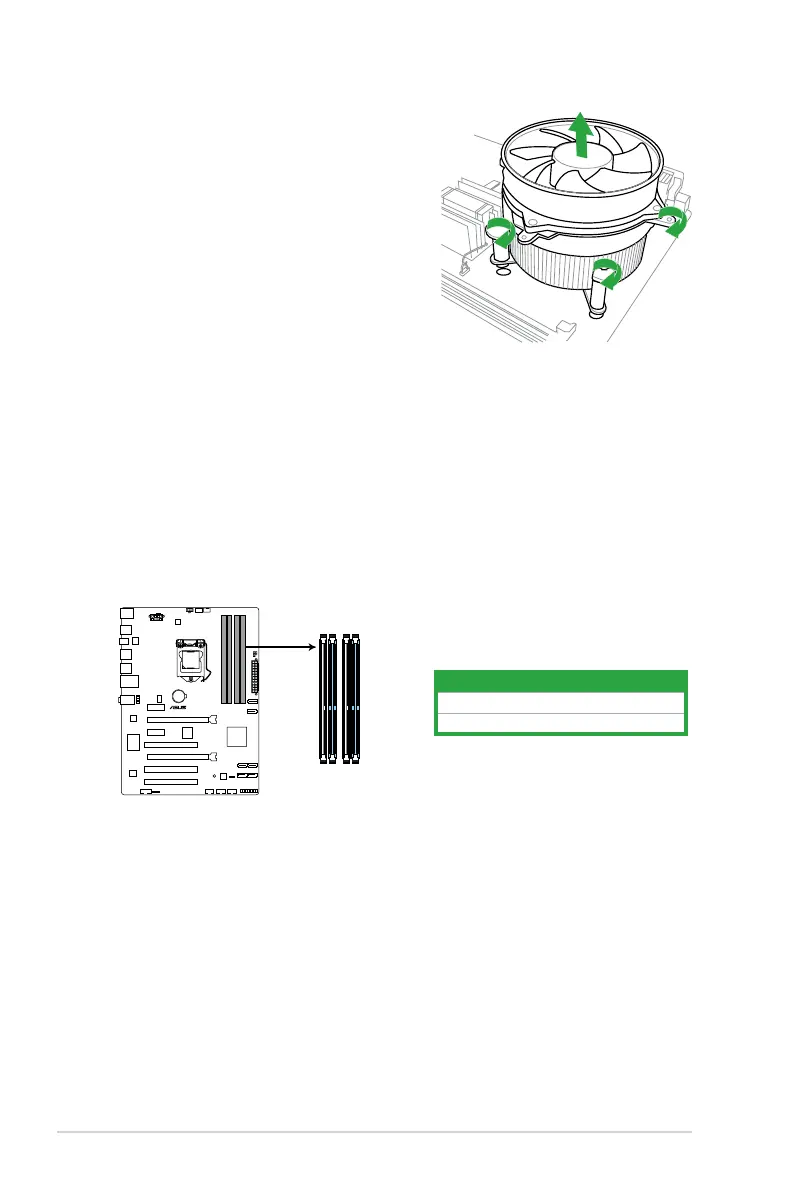

The gure illustrates the location of the DDR3 DIMM sockets:
Channel Sockets
Channel A DIMM_A1 and DIMM_A2
Channel B DIMM_B1 and DIMM_B2
4. Carefully remove the heatsink and fan
assembly from the motherboard.
5. Rotate each fastener clockwise to ensure
correct orientation when reinstalling.
P8P67 LX
P8P67 LX 240-pin DDR3 DIMM sockets
DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2

Asus P8P67 LX Specifications

General

Chipset	Intel P67
Socket	LGA 1155
Memory Type	DDR3
Maximum Memory	32GB
Storage Interfaces	4 x SATA 3Gb/s, 2 x SATA 6Gb/s
Form Factor	ATX
Memory Standard	DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4
Expansion Slots	2 x PCIe 2.0 x1, 3 x PCI
LAN	Realtek 8111E Gigabit LAN
Audio	8-Channel High Definition Audio
USB Ports	12 (6 x USB 2.0, 6 x USB 3.0)
