LAN port
SPEED
LED
ACT/LINK
LED
LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.

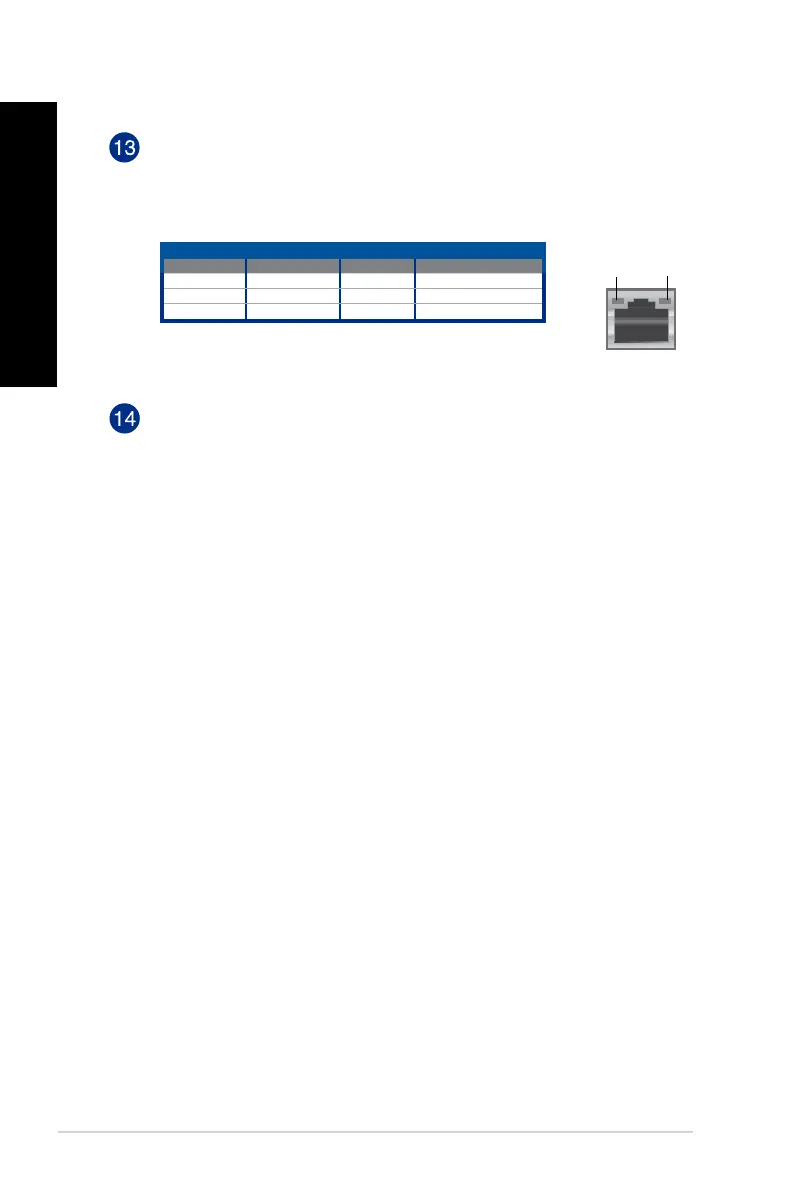

LAN port LED indications
VGA port. This port is for VGA-compatible devices such as a VGA monitor.
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
