Chapter 1: System introduction

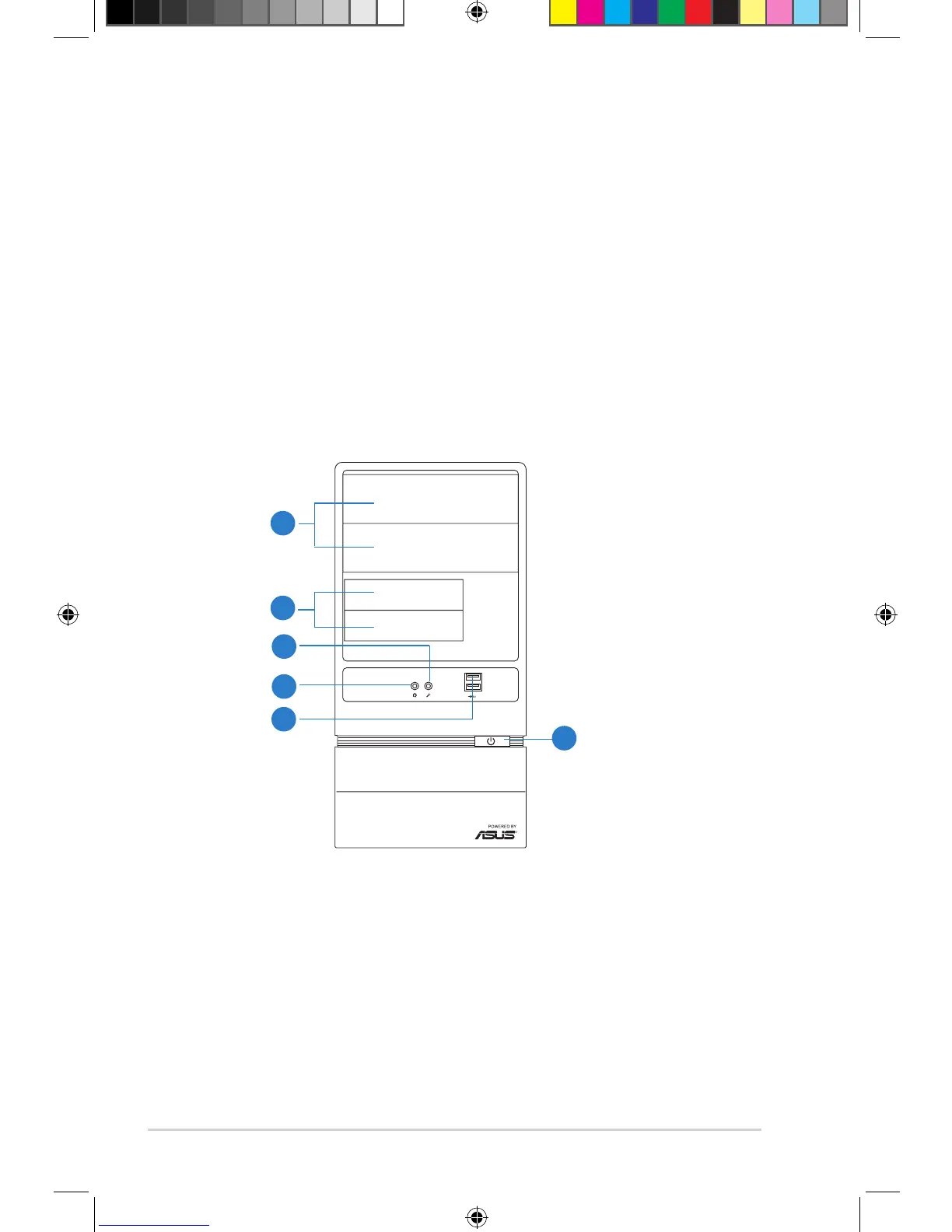

1. Two empty 5.25-inch drive bays. These bays are for 5.25-inch IDE/SATA optical
drives.
2. Two empty 3.5-inch drive bays. These bays are for 3.5-inch hard disk drives.
3. Microphone port. This Mic (pink) port connects a microphone.
4. Headphone port. This Line In (lime) port connects a headphone with a stereo mini-
plug.
5. USB 2.0 ports. These Universal Serial Bus 2.0 (USB 2.0) ports are available for
connecting USB 2.0 devices such as a mouse, printer, scanner, camera, PDA, and
others.
6. Power button. Press this button to turn the system on.
1.1 Welcome!
Thank you for choosing the ASUS V6-P8H61ELX!
The ASUS V6-P8H61ELX is an all-in-one barebone system with a versatile home
entertainment feature.
The system comes in a stylish casing and powered by the ASUS motherboard that supports
the Second Generation Intel
®
Core™ i7 / Core™ i5 / Core™ i3 processors in the 1155-land
package.
The system supports up to 16 GB of system memory using DDR3-1333/1066 DIMMs. High-
resolution graphics via integrated graphics controller or PCI Express x16 slot, Serial ATA,
USB 2.0, and 8-channel audio features take you ahead in the world of power computing.
1.2 Front panel
The front panel includes the optical drive bays, power button, and several I/O ports.
