Chapter 3: Motherboard info

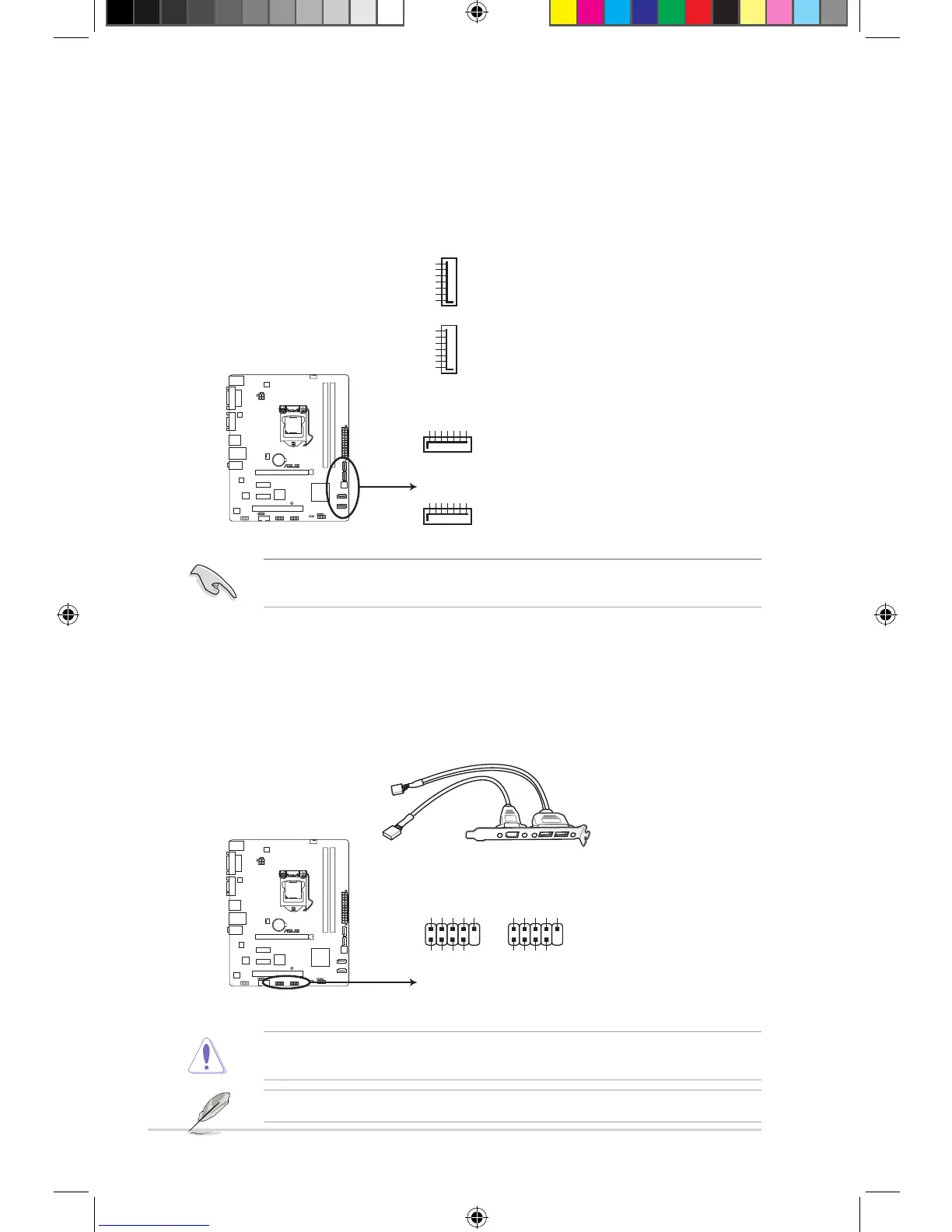

3.4 Connectors
1. Intel® H61 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1~4)
These connectors are for the Serial ATA signal cables for Serial ATA 3Gb/s or 6Gb/s
hard disk and optical disk drives.
2. USB connectors (10-1 pin USB56, USB78, USB910)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specication that supports up to
480 Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB module is purchased separately.
P8H61-M LX2
P8H61-M LX2 USB2.0 connectors
PIN 1
USB+5V USB_P10- USB_P10+ GND NC
USB+5V
USB_P9-
USB_P9+
GND
USB910
PIN 1
USB+5V USB_P8- USB_P8+ GND NC
USB+5V
USB_P7-
USB_P7+
GND
USB78
You must install Windows
®
XP Service Pack 3 or later version before using Serial ATA hard
disk drives.
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
SATA3G_2
SATA3G_1
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
GND RSATA_RXN3 RSATA_RXP3 GND RSATA_TXN3 RSATA_TXP3 GND
GND RSATA_RXN4 RSATA_RXP4 GND RSATA_TXN4 RSATA_TXP4 GND
SATA3G_3
SATA3G_4
P8H61-M LX2
P8H61-M LX2 SATA connectors
