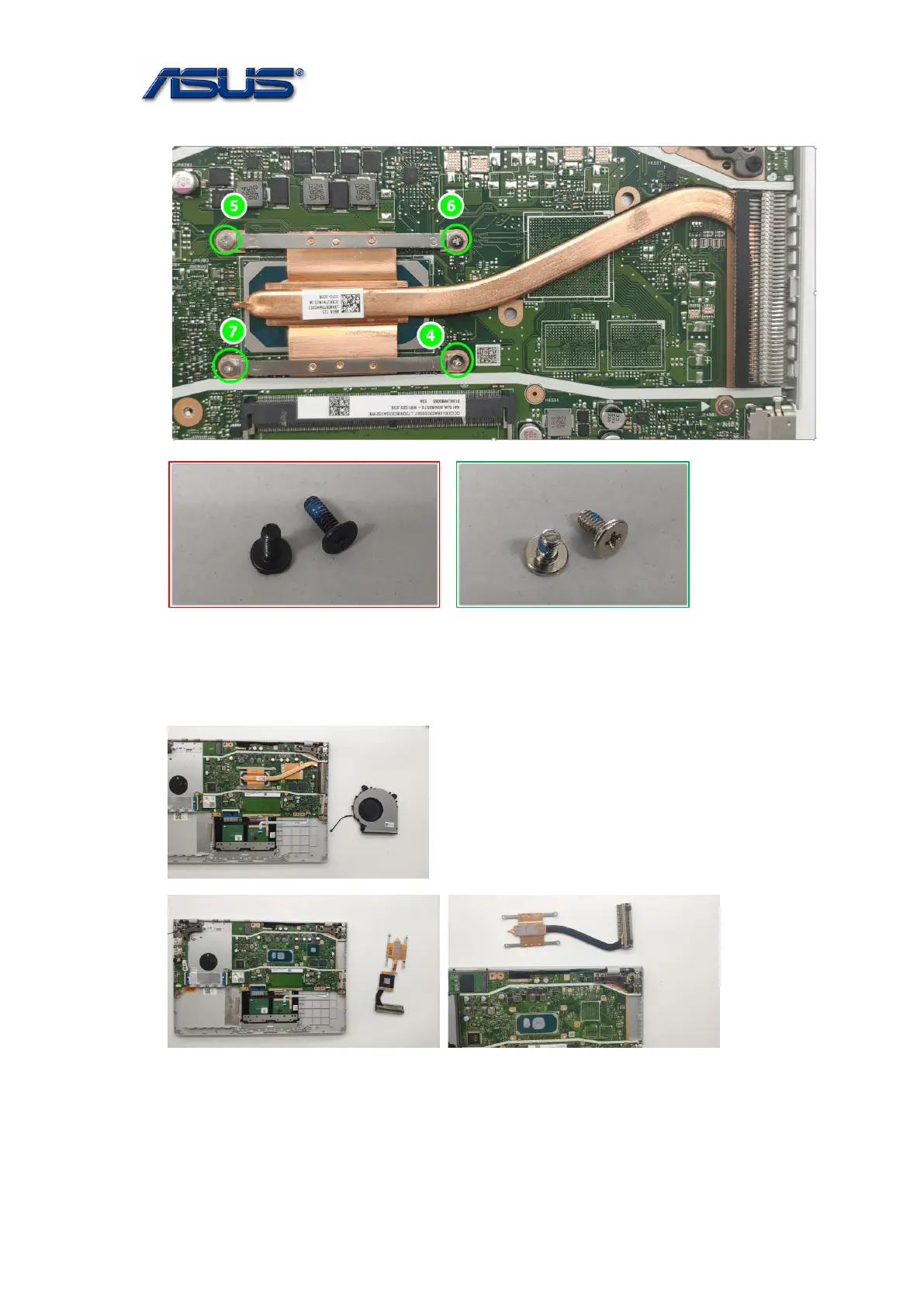

Disassembly Procedure
16
For X415JA Thermal
\
SCREW M2*5L (K) B-ZN,NY SCREW M2*3L D4.5 (K) W-NI NY
3. Disconnect Thermal and Fan Module.
