Disassembly Procedure
20
Touchpad Module

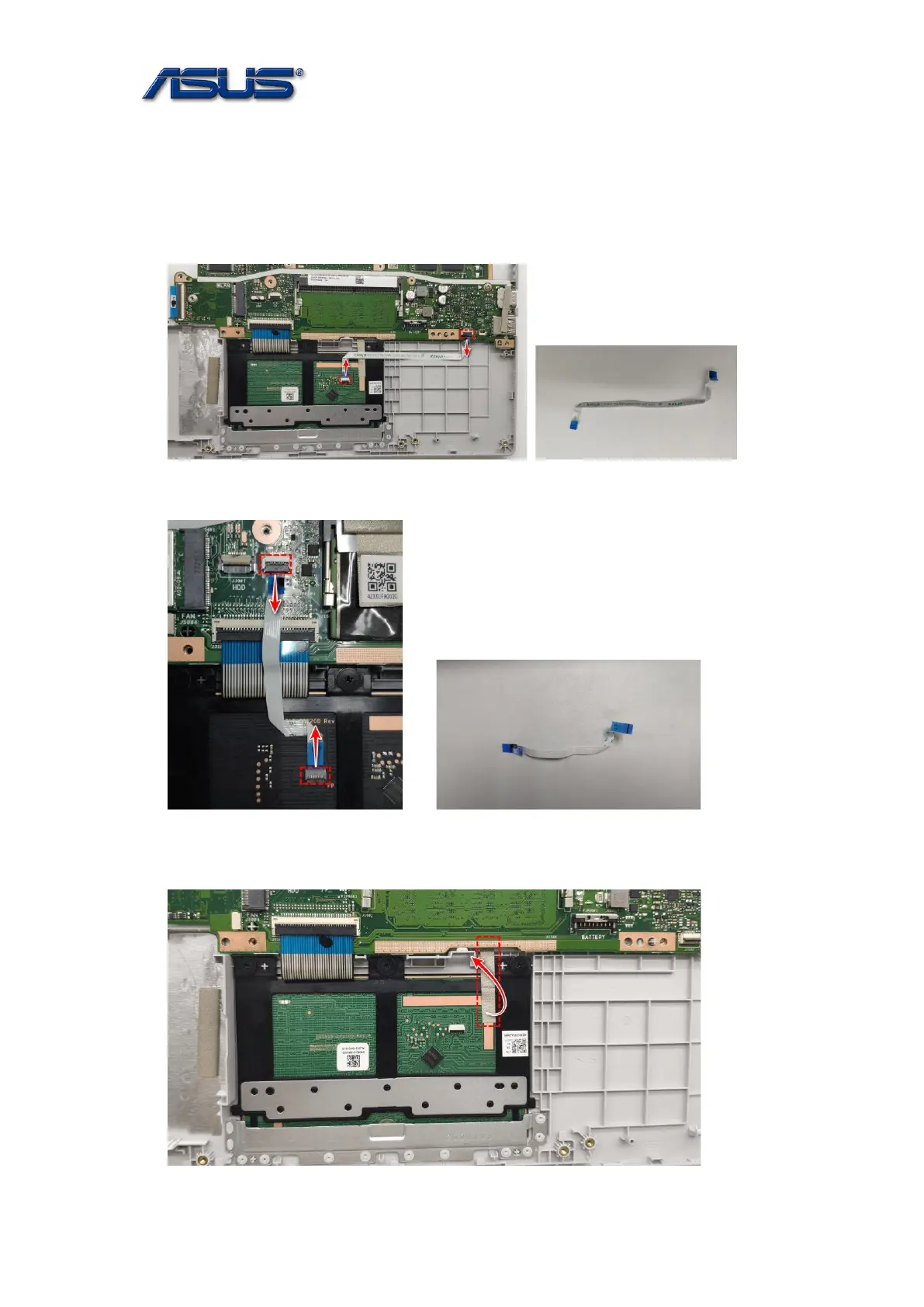

The illustrations below show how to remove the Touchpad Module.
1. Disconnect the TP FFC .
Insert FFC to the bottom until just accord with the line when lock the latch.
Disconnect the FP FFC (Optional by SKU)
2. Tear off the X530UN TP GASKET TAPE//CATERON.
Notice: The GASKET TAPE must be stuck well when assembled.
