5.3 Connecting Analog Speaker Systems

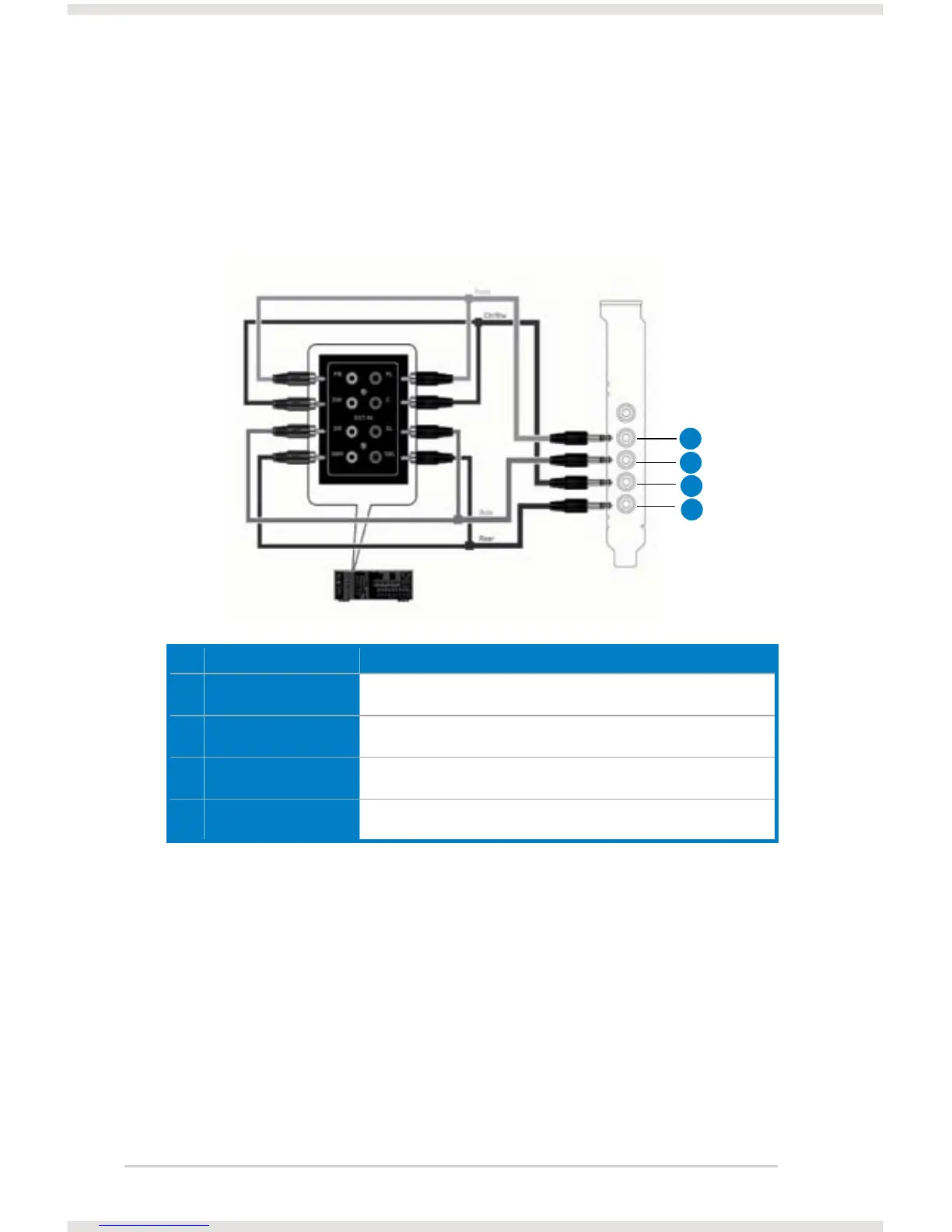

5.3.1 Connecting Analog Power Amplier
1
2
3
4
No Item Description
1 Front Out Connects to the “left front” and “right front” input ports of the analog
amplier with the mini-jack to RCA cable.
2 Side Surround Out Connects to the “left surround” and “right surround” input ports of the
analog amplier with the mini-jack to RCA cable.
3 Center/Subwoofer Connects to the “Center” and “subwoofer” input ports of the analog
amplier with the mini-jack to RCA cable.
4 Back Surround Out Connects to the “left back” and “right back” input ports of the analog
amplier with the mini-jack to RCA cable.
