Asus Z87-Deluxe/Dual User Manual

3-26
Chapter 3: BIOS setup
Chapter 3

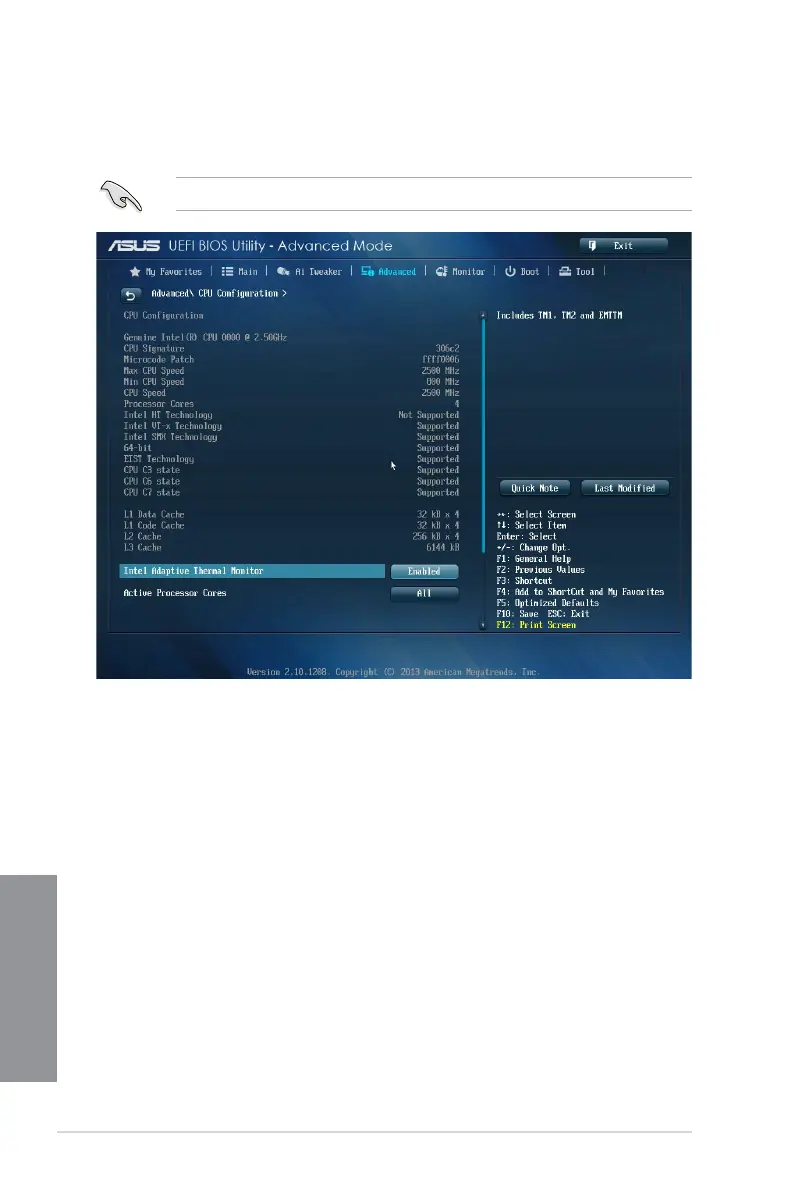

3.6.1 CPU Conguration
The items in this menu show the CPU-related information that the BIOS automatically
detects.
The items in this menu may vary based on the CPU installed.
Intel Adaptive Thermal Monitor [Enabled]
[Enabled] Enables the overheated CPU to throttle its clock speed to cool down.
[Disabled] Disables the CPU thermal monitor function.
Hyper-threading [Enabled]
[Enabled] Allows the operating system to schedule two threads or processes
simultaneously per activated core.
[Disabled] Allows the operating system to schedule one per activated core.
Active Processor Cores [All]
Allows you to choose the number of CPU cores to activate in each processor package.
Conguration options: [All] [1] [2] [3]
Limit CPUID Maximum [Disabled]
When set to [Enabled], this item allows the legacy OS to boot even without support for CPUs
with extended CPUID functions.
Conguration options: [Enabled] [Disabled]

Asus Z87-Deluxe/Dual Specifications

General

Form Factor	ATX
Socket	LGA 1150
Chipset	Intel Z87
Memory Slots	4
Max Memory	32GB
PCI Express 3.0 x16	2
PCI Express 2.0 x16	1
PCI Express x1	2
SATA 6Gb/s	6
RAID Support	0, 1, 5, 10
Audio	Realtek ALC1150 8-Channel High Definition Audio CODEC
Wireless	Wi-Fi 802.11 a/b/g/n/ac
Memory Standard	DDR3 1600/1333 MHz
USB 3.0	6
LAN	Gigabit Ethernet
Bluetooth	Bluetooth V4.0
