2.3 Motherboard rear and audio connections

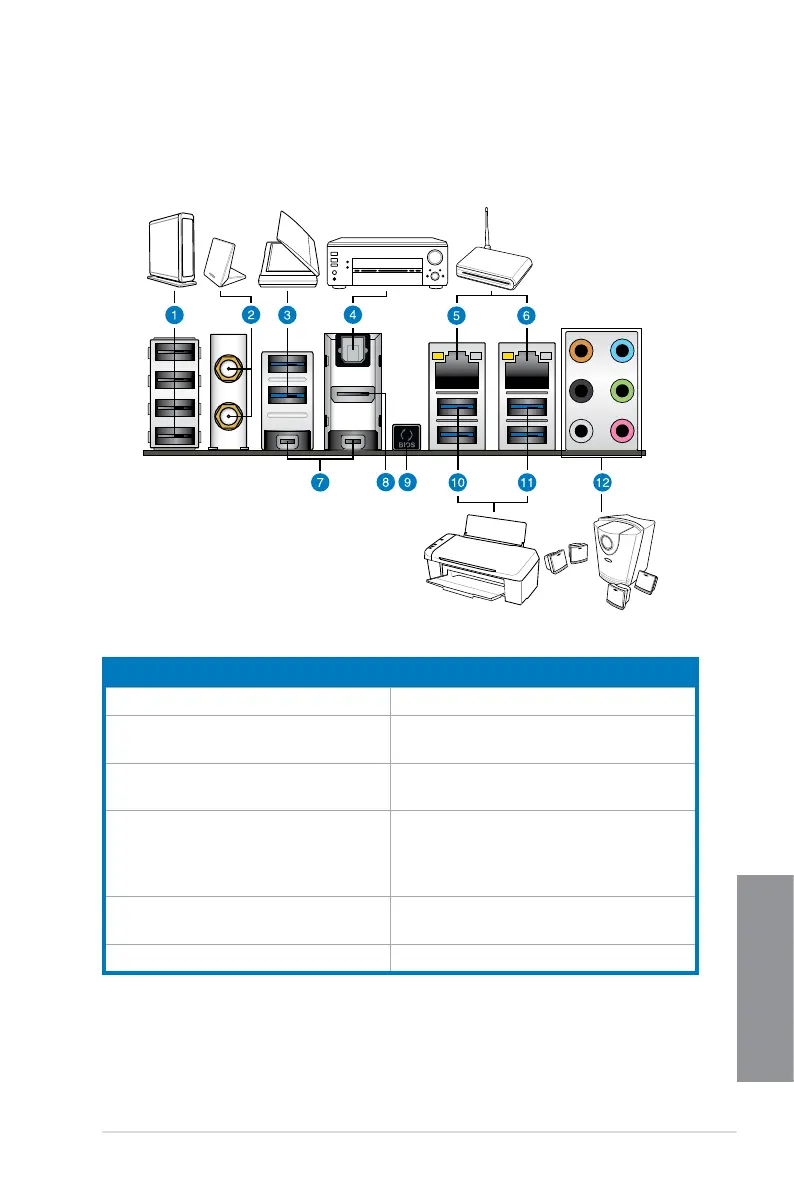

2.3.1 Rear I/O connection
*, ** and ***: Refer to the tables on the next page for Bluetooth/Wi-Fi module LEDs, LAN port LEDs, and audio port
denitions.
Rear panel connectors
1. USB 2.0 ports 7-10 7. Thunderbolt ports
2. Wi-Fi 802.11 a/b/g/n/ac
Bluetooth V4.0/3.0 + HS*
8. HDMI port
3. USB 3.0 ports E34 support ASUS
USB 3.0 Boost Turbo Mode.
9. USB BIOS Flashback button
4. Optical S/PDIF Out port 10. USB 3.0 ports 5-6, support ASUS USB
3.0 Boost Turbo Mode. Bottom port
supports USB BIOS Flashback and
USB Charger+.
5. Intel
®
LAN (RJ-45) port** 11. USB 3.0 ports E12, support ASUS USB
3.0 Boost Turbo Mode.
6. Realtek
®
LAN (RJ-45) port** 12. Audio I/O ports***

Asus Z87-Deluxe/Dual Specifications

General

Form Factor	ATX
Socket	LGA 1150
Chipset	Intel Z87
Memory Slots	4
Max Memory	32GB
PCI Express 3.0 x16	2
PCI Express 2.0 x16	1
PCI Express x1	2
SATA 6Gb/s	6
RAID Support	0, 1, 5, 10
Audio	Realtek ALC1150 8-Channel High Definition Audio CODEC
Wireless	Wi-Fi 802.11 a/b/g/n/ac
Memory Standard	DDR3 1600/1333 MHz
USB 3.0	6
LAN	Gigabit Ethernet
Bluetooth	Bluetooth V4.0
