Asus Z87-Deluxe/Dual User Manual

ASUS Z87-DELUXE/DUAL
2-1
Chapter 2
Basic installation
2
2.1 Building your PC system
2.1.1 Motherboard installation
The diagrams in this section are for reference only. The motherboard layout may vary with
models, but the installation steps are the same for all models.

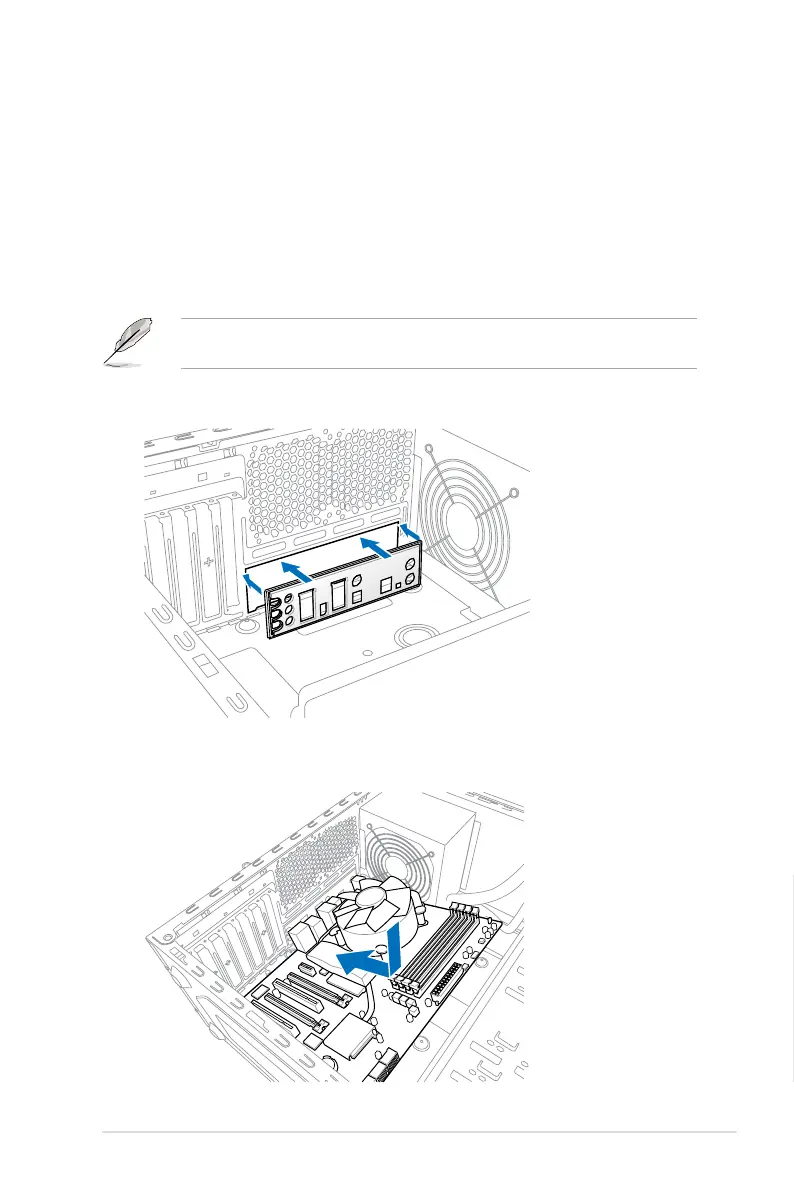

1. Install the ASUS Q-Shield to the chassis rear I/O panel.
Chapter 2: Basic installation
2. Place the motherboard into the chassis, ensuring that its rear I/O ports are aligned to
the chassis’ rear I/O panel.

Asus Z87-Deluxe/Dual Specifications

General

Form Factor	ATX
Socket	LGA 1150
Chipset	Intel Z87
Memory Slots	4
Max Memory	32GB
PCI Express 3.0 x16	2
PCI Express 2.0 x16	1
PCI Express x1	2
SATA 6Gb/s	6
RAID Support	0, 1, 5, 10
Audio	Realtek ALC1150 8-Channel High Definition Audio CODEC
Wireless	Wi-Fi 802.11 a/b/g/n/ac
Memory Standard	DDR3 1600/1333 MHz
USB 3.0	6
LAN	Gigabit Ethernet
Bluetooth	Bluetooth V4.0
