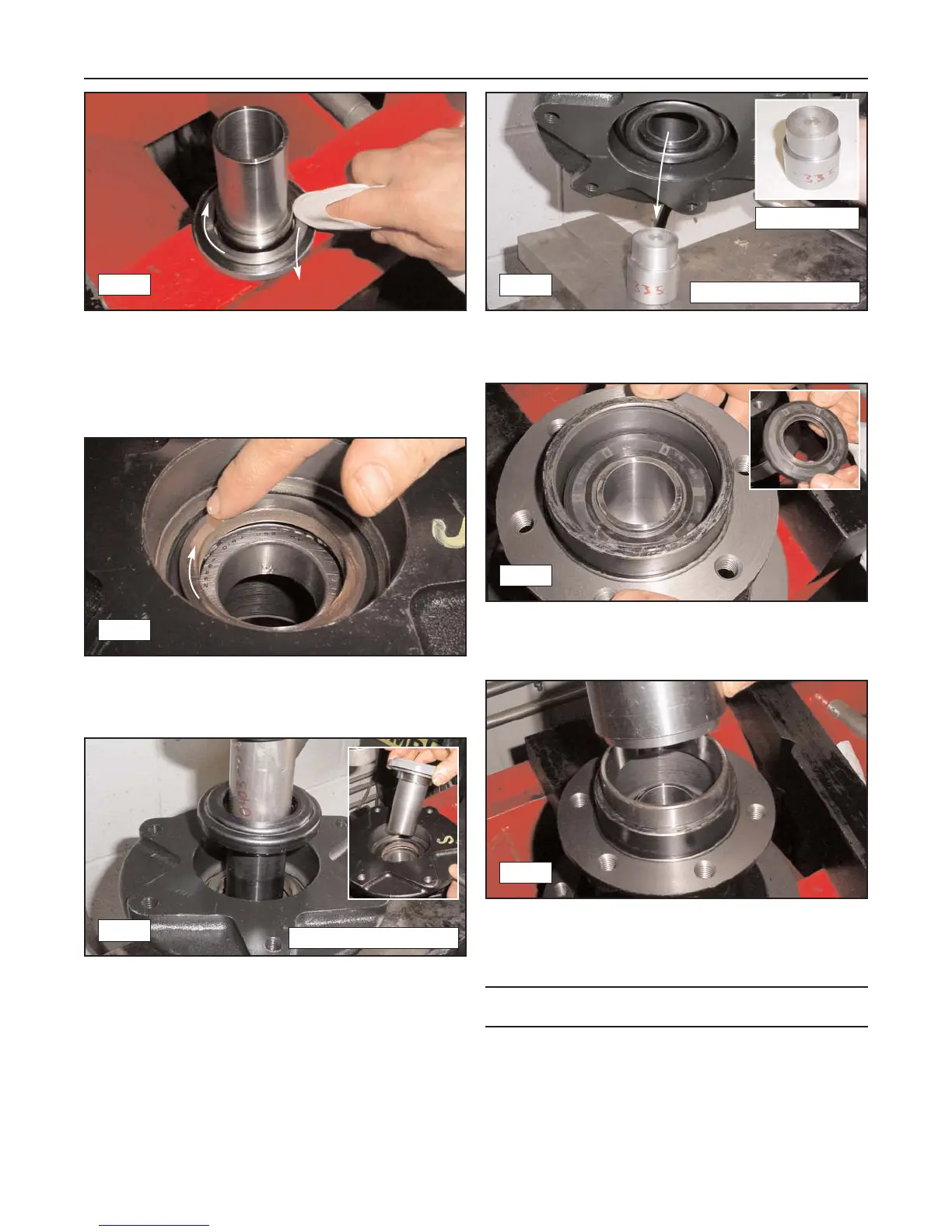

16. Once the seals are in place, wipe the mating sur-
faces of the face seals with a clean shop cloth and
alcohol in a circular motion ending in a gentle
sweep from the inside to the outside of the face
until clear of the face.This will ensure a clean mat-
ing surface and a good seal. (fig. 13-51, 13-52)
17. Apply a very thin coating of fresh 10W30 engine
oil onto the now clean seal faces (faces only) in a
circular motion. (fig. 13-53)
18. Press the bearing sleeve assembly (with face seal
clean, installed, and oiled) into the hub with tool
0403-336 until seated. (fig. 13-54)
19. Flip the hub over, support the bearing sleeve from
the bottom with tool 0403-335 and set it onto the
press for center seal installation. (fig. 13-55)
20. Install the center seal into the hub. Work the lip
around the bearing sleeve with your fingers prior
to pressing it into place. (fig. 13-56)
21. Install the race into the hub as shown above the
seal. When the race is pressed into place, it will
push the seal into position. (fig. 13-57)
Note: See step 22 for tool information and race instal-
lation instructions.
13-11
Rubber Track Loader
13. Undercarriage
13-52
13-53
13-54
13-55
13-56
13-57
Part #: 0403-335
PT-70 use tool #: 0403-375
PT-70 use tool #: 0403-374
