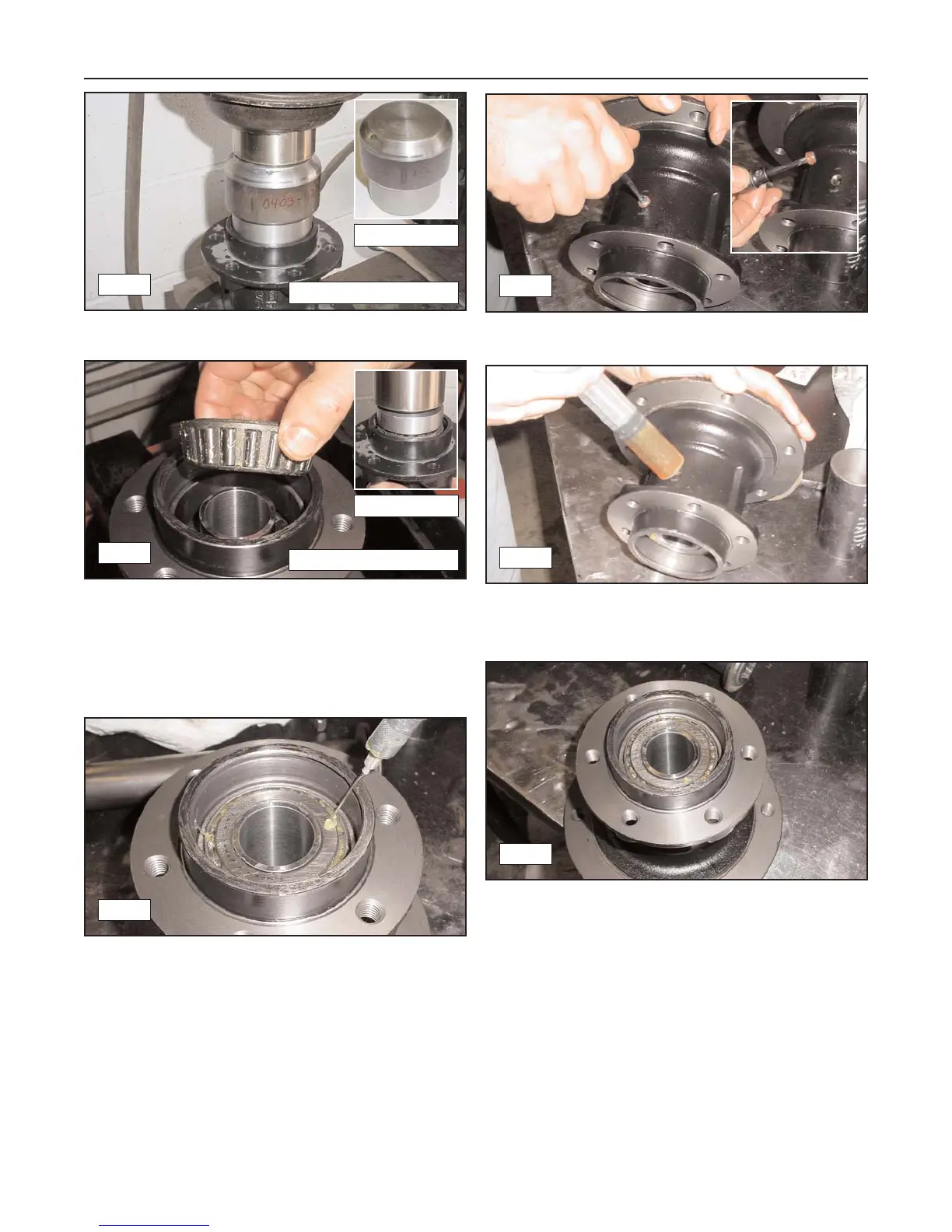

22. Press the outer bearing race into the hub with tool
# 0403-330 until it seats. (fig. 13-58)
23. Pack the bearing with ASV Multi-Purpose EP
Lithium Grease and then install it onto the bearing
sleeve using tool 0403-333. (fig. 13-59)
24. Press it into the assembly until it gently seats into
the bearing race. (fig. 13-59)
25. If necessary, use a needle dispenser to fill any
places in the bearing that are not full of grease to
ensure adequate lubrication. (fig. 13-60)
26. Remove the allen plug in the center portion of the
hub. (fig. 13-61)
27. Add 2 oz. (1 oz. PT-70) of ASV 10W-30 Heavy
Duty Engine Oil to the hub as shown, then reinstall
the plug and tighten. (fig. 13-62)
28. The hub assembly is now ready to be reinstalled.
To install it onto the machine, reverse steps 1-3 on
page 13-8 of this procedure. Make sure to read
the note below step 3 prior to reinstalling.
(fig. 13-63)
29. Repeat this procedure throughout the undercar-
riage as necessary to repair worn or damaged
components and restore proper function.
