async A1 - 1.3 ASSEMBLE YOUR A1

To Next Page

To Previous Page

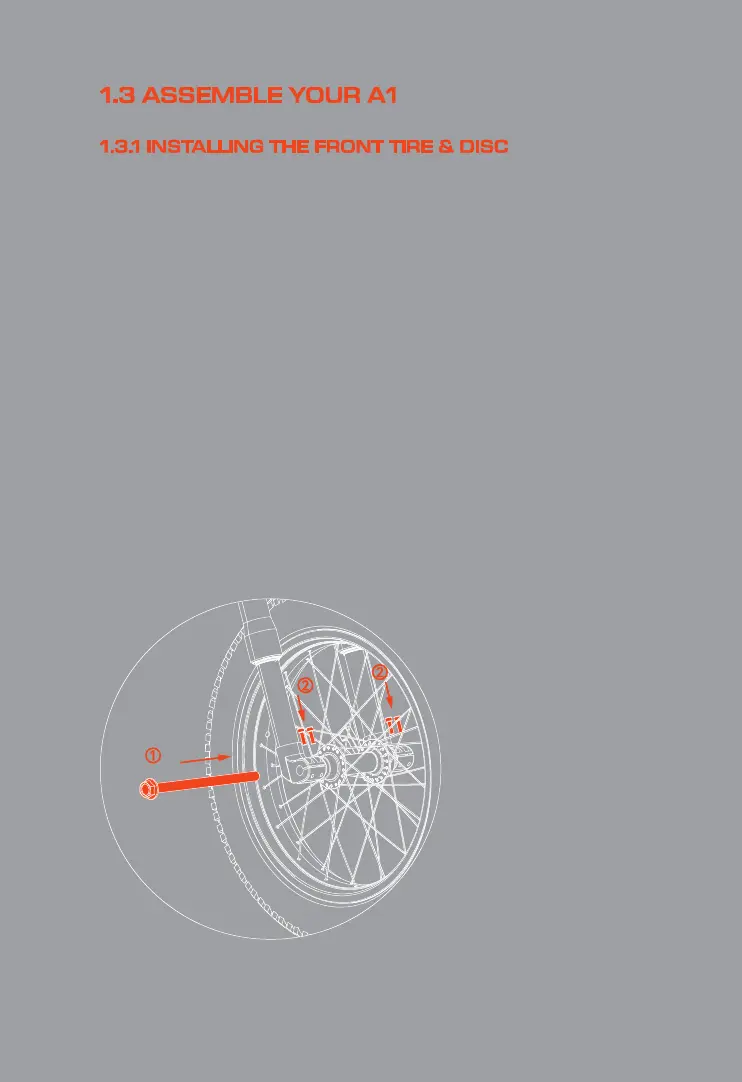

1.You will need to elevate the A1 to install the front tire. It's best

to use a 15" bike stand or an object that can suppo at least 130

lbs.

2. With assistance, lift A1 out of the box from the rear wheel and

set the underay on a bike stand.

3. Once A1 is held in place on a bike stand, loosen the 4 clamp-

ing screws with a hex screwdriver and remove the front axle

bolt using a hexagon wrench.

4. Put the front wheel in place and inse the axle. Make sure the

brake discs are seated in the calipers.

5.Once inseed, tighten the axle to 50 Nm.

6.Tighten the 4 clamping screws to 10 Nm.

7.Check all bolts (x4 bolts).
