Asyril Asycube 380 - Purge Connector (Asycube 380 Only)

Asycube 380 & 530
Operating Manual
000.101.151
Version: B
20/50
Purge connector (Asycube 380 only)
A standard M8 four-pin male cable is used to transmit the signals with the purge system.
Pin
Waveform
(1)
24 VDC
(2)
Digital input
24 VDC
(3)
0 V GND
(4)
Digital output
24 V DC 500 mA
Connector type (on Asycube side):
M8, 4P, female

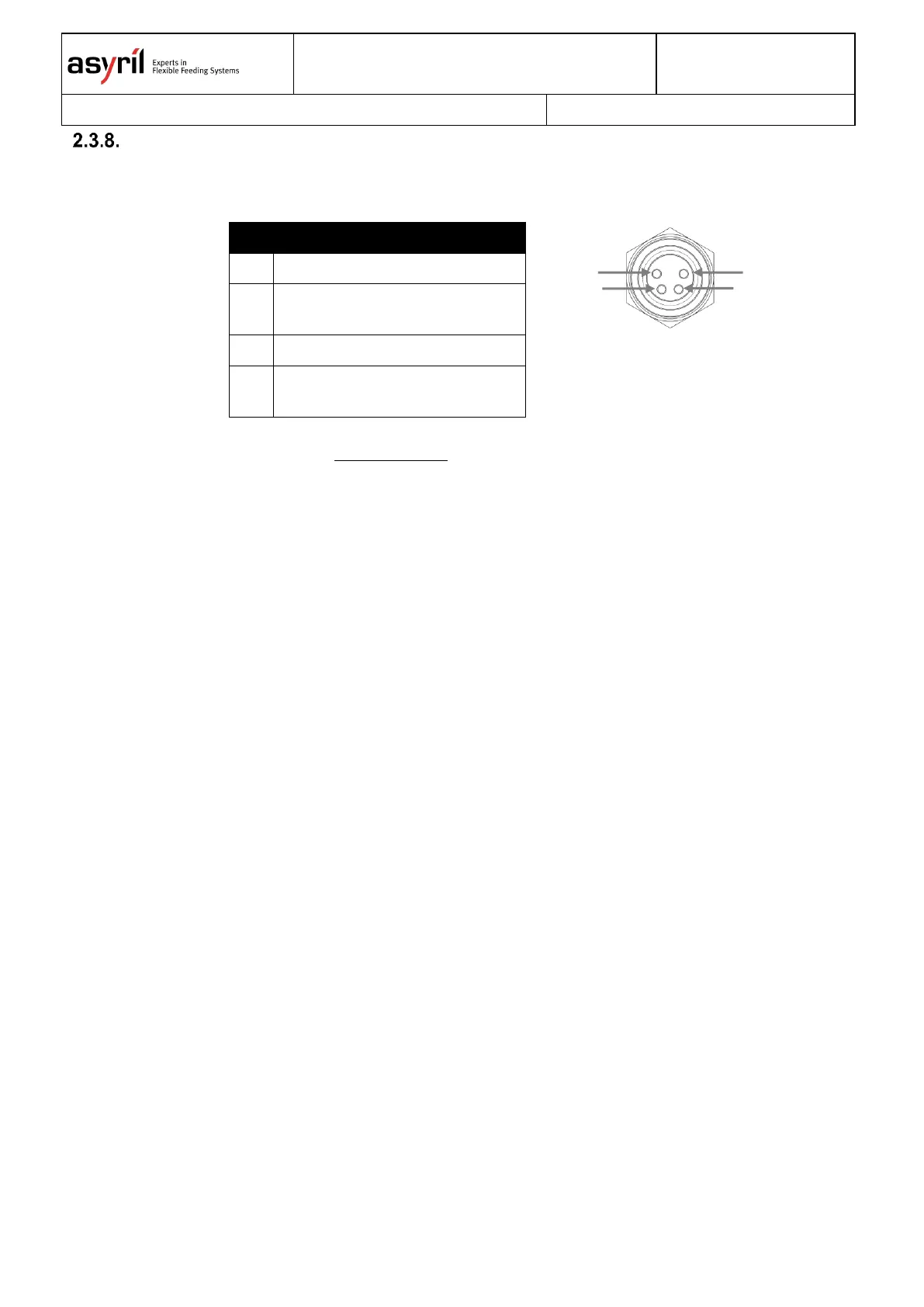

Figure 2-16: Purge connector
Asycube 380
(1)
(2)
(3)
(4)
