Asyril Asycube 380 - Platform in Purge Configuration

Asycube 380 & 530
Operating Manual
000.101.151
Version: B
35/50

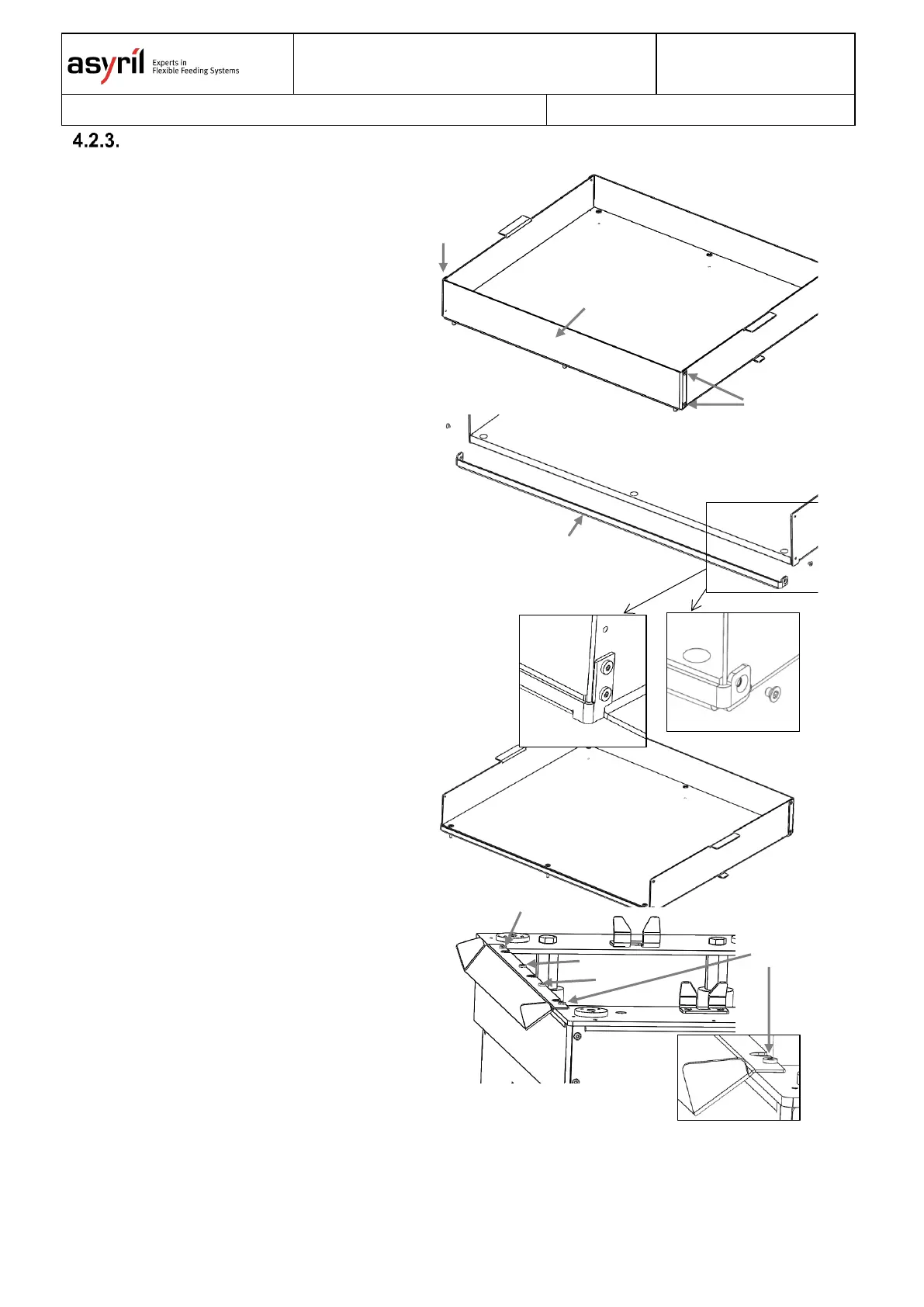

Platform in purge configuration
Step 1
Completely unscrew the four
M2.5 screws (A) using a Torx 8
screwdriver and remove the flank
(B)
Steps Step 2
Asycube 530: Fit the adapter
piece (C) and secure it using 2
screws (0.6 Nm)
Asycube 380: Fit the adapter
piece (C) and secure it using 4
screws (0.6 Nm)
The part (C) is available as an
option.
Asycube 380 only: Option to
attach a purge tip to the base of
the Asycube using 4 screws (D)
(0.6 Nm)
Figure 4-2: Platform in purge configuration.
(A)
(A)
(B)
(C)
380
530
(D)
