Step 3
Take the platform out of the
frame
Step 4
Assembly:
Position the platform in the
frame.
Position the assembly on the
Asycube:
Asycube 530: Tighten the 8
bolts (2.2 Nm).
Asycube 380: Tighten the 4
handle screws securely by hand

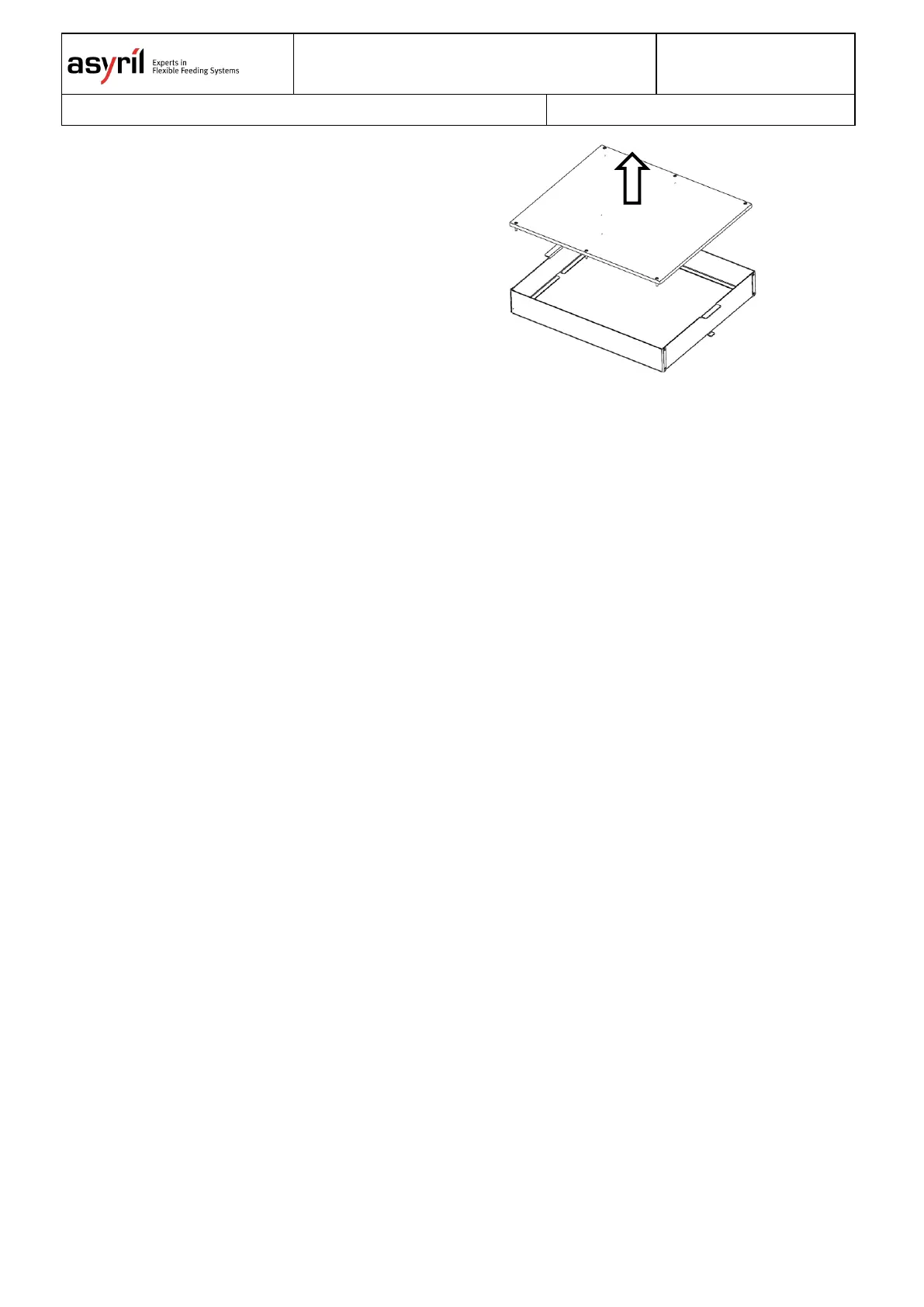

Figure 4-1: Remove the platform
