Removing/replacing the platform
DANGER!
Make sure that the backlight is off
before removing the platform module.
Risk of crushing. Be sure that the
backlight is off before removing the
platform module

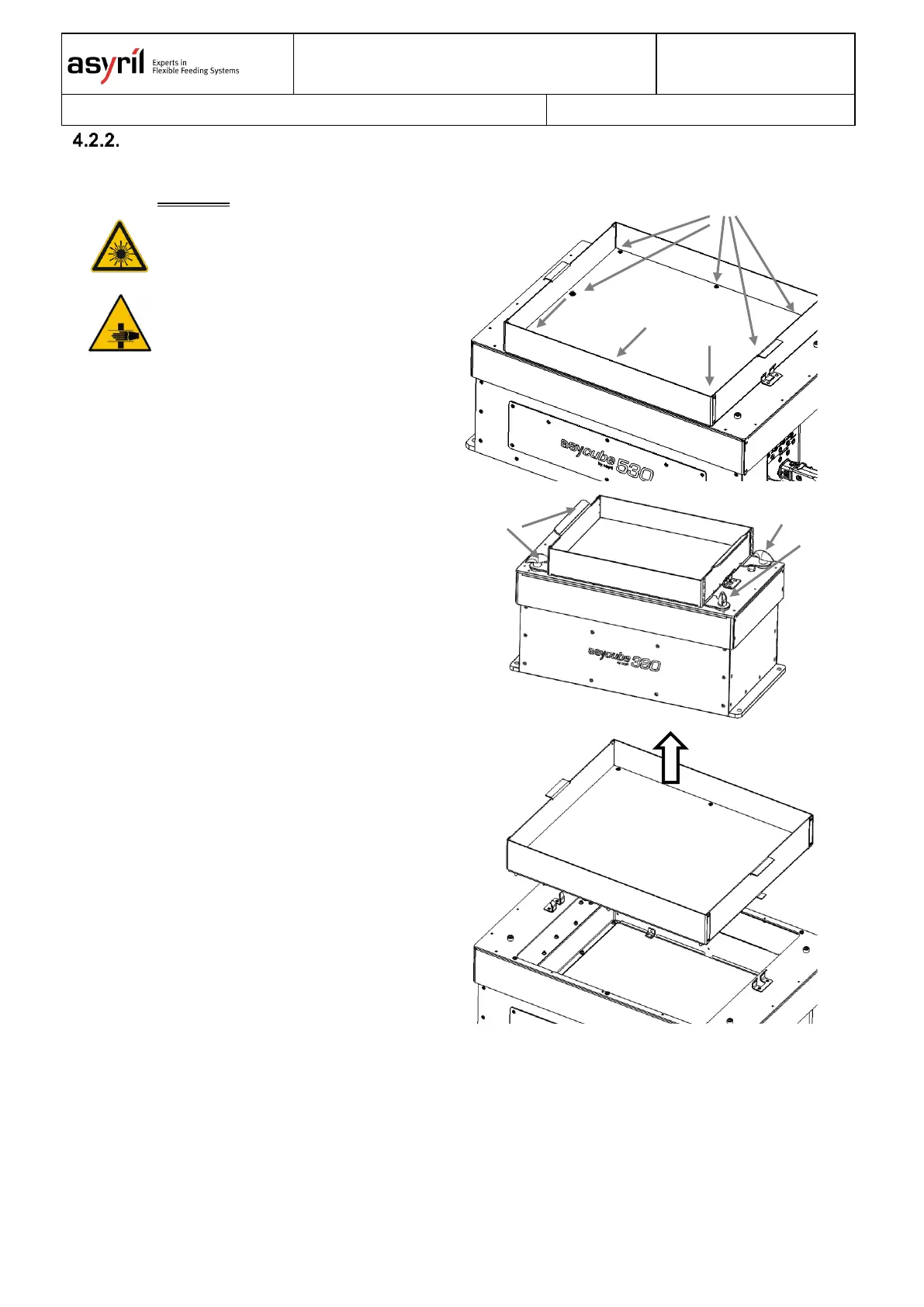

Step 1
Asycube 530: Unscrew the 8 M4
Allen screws completely (A)
Asycube 380: Unscrew the 4
handle screws (B)
Step 2
Remove the Asycube platform
assembly.
(A)
(B)
