Atag HI6071G User Manual

installation
electrical connection
GB 31
installation
possibilities for building in
attention
Ensure that the connection cables hang freely. If there
is a drawer underneath the hob, make sure that the
contents do not project above the edge of the drawer
and interfere with the ventilation.
installation of the induction hob above a combi-
microwave oven, a 90 cm ATAG oven or an oven of a
different brand
e
Saw out the ventilation opening(s), making sure
that the total surface of the holes is a minimum
of 100 cm
2
. See the drawing, for example,
showing 2 holes of 50 cm
2
.
r
Fit a protective plate between the oven and the
hob. The plate should be at least 10 mm thick
and heat-resistant (85 °C). The space between
the underside of the hob and the protective plate
must be at least 50 mm.
t
To protect the air flow, fit a protective panel - of
the same material as the protective plate -
between the protective plate and the hob.
Ventilation is via the adjoining cupboards.
GB 30
2
50 cm
e
r
t
e
e
r
t
50
200
52
min.
560 x 6 mm
1N a.c. 230V
1
3
2
4
5
L
N
1
1
L
N
L
N
1
1
2
2
2 2N a.c. 230V
1
3
2
4
5
L
N
L
1
2
1
2N a.c. 400V
1
3
2
4
5
L
L
1
2
L
3
3 a.c. 230V
1
3
2
4
5
3
1
5
2
4

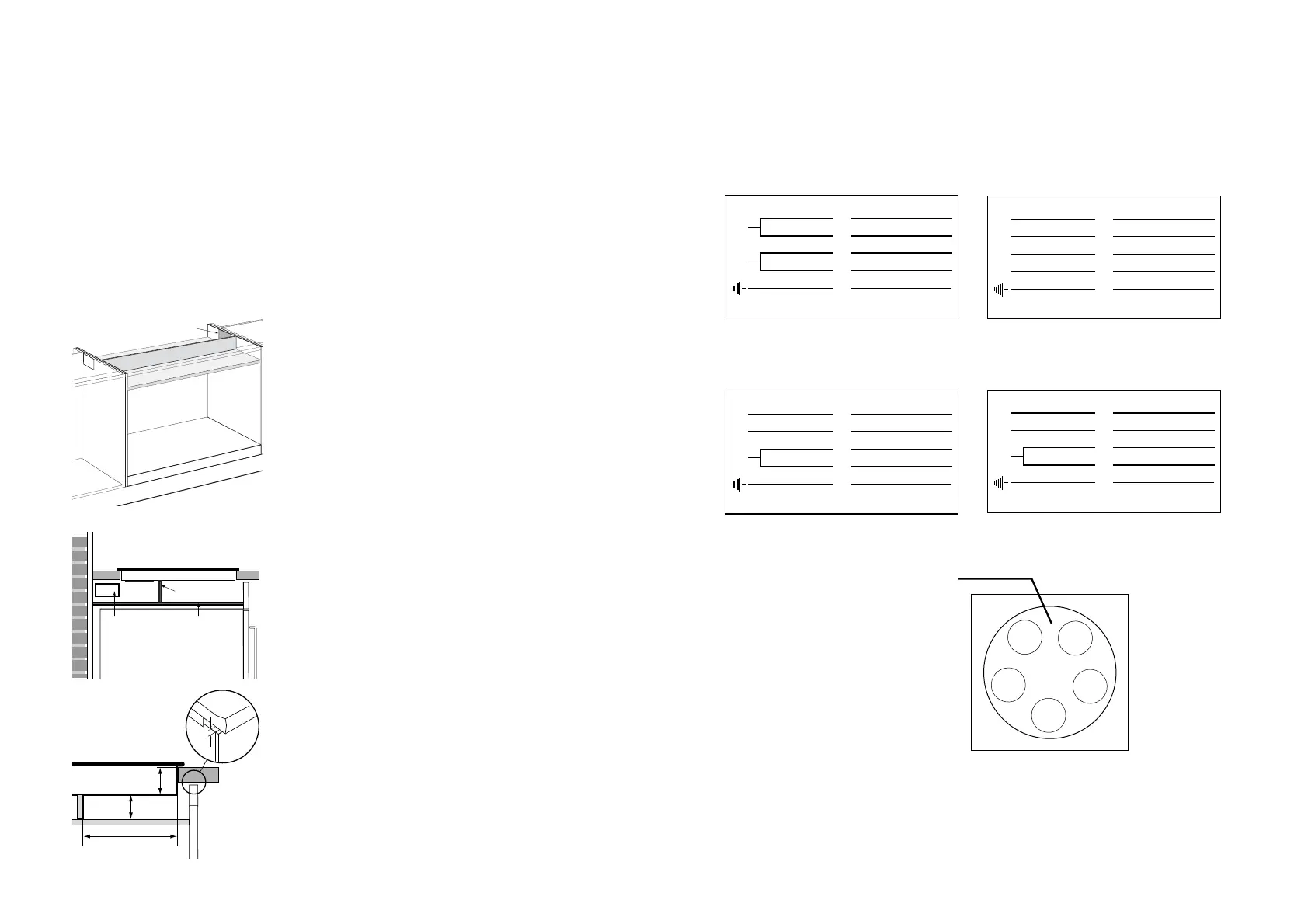

Refer to the figure below for the wiring diagram, which can
also be found on the underside of the appliance.
➀
➁
➂
➃
➄
Black
Black
Blue
Brown
Green
and
Yellow
