AT&T Business in a Box BIB NextGen User Manual

The AT&T Business in a Box® router may be wall mounted on a
¾” or thicker plywood backing. The unit is too heavy to be
mounted to drywall. Use the rack-mount brackets, bracket
screws (included) and 1½” wood screws (not included).
Complete the following steps:

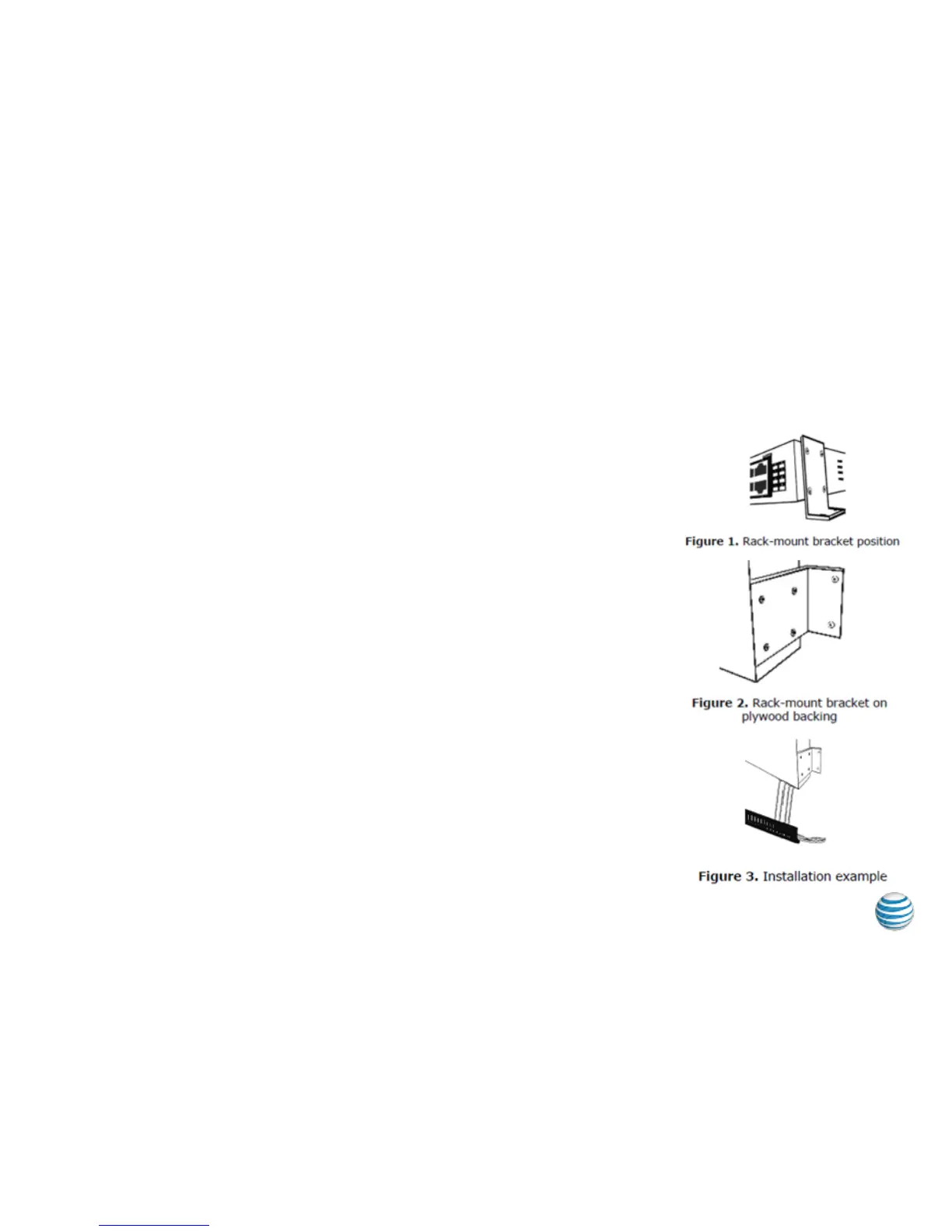

1) Position the device so that the front panel is facing down
and apply the rack-mount brackets with bracket screws to
each side as shown in Figure 1. Rack-mount bracket
position.
2) Attach the bracket to ¾” or thicker plywood backing using
four (4) 1 ½” wood screws as shown in Figure 2. Rack-
Mount bracket on plywood backing.
3) Optionally, attach the black Breakout Box with included rack
mount hardware.
Important: Cables will flow down and should be dressed using a
wire minder. The unit should be mounted high enough that the
technician can see the status lights**. See Figure 3 Installation
example.
Step 1 – Wall Mounting Instructions (optional to Rack Mounting)
4
** It is recommended, but not required that a skilled technician mount the router on the wall.
