Getting started
5
Installation options
Your telephone base is ready for tabletop use. If you want to mount your
telephone on a wall, use the provided wall mount bracket to connect with
a standard dual-stud telephone wall mounting plate. If you do not have this
mounting plate, you can purchase one from many hardware or consumer
electronics retailers. You might need a professional to install the mounting plate.

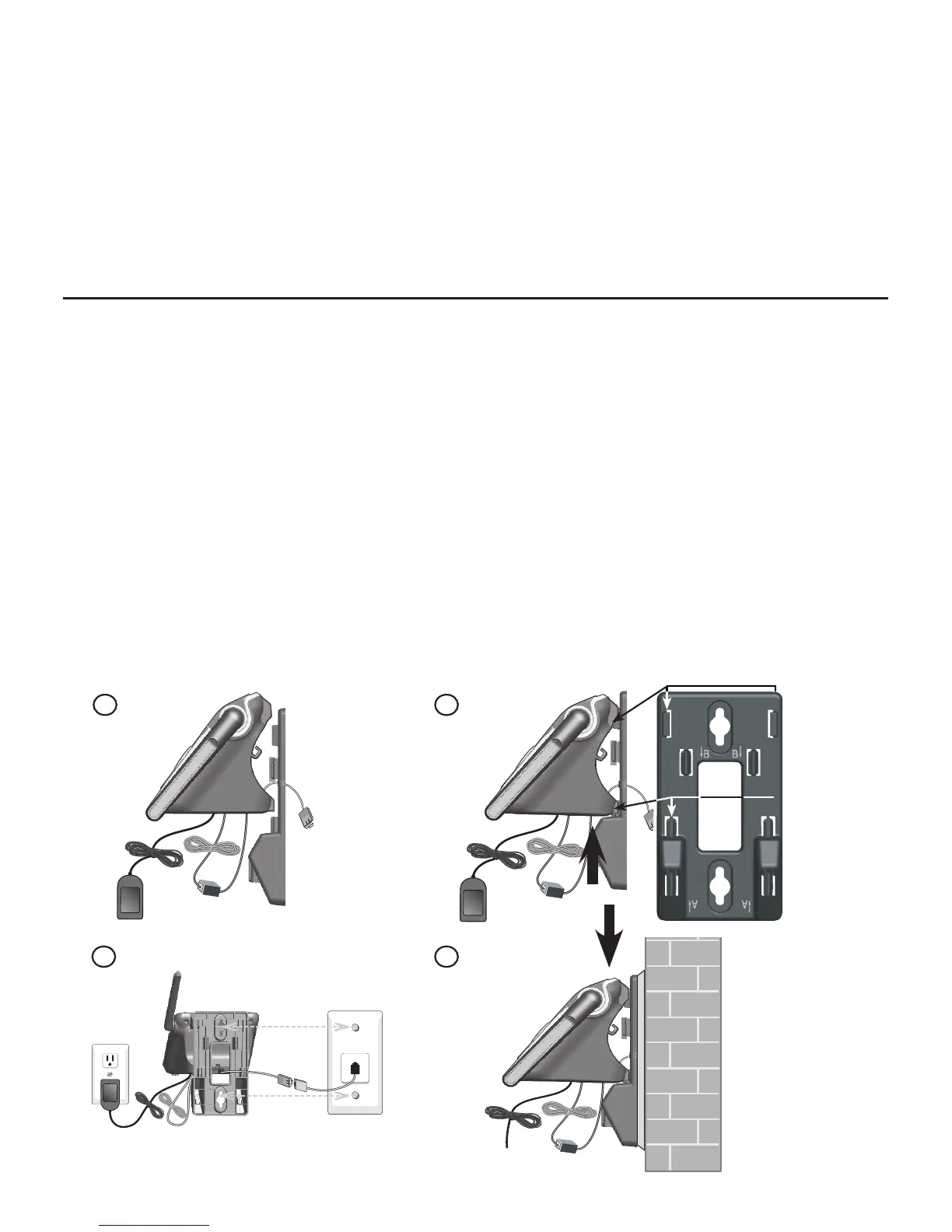

Tabletop to wall mount installation
1. Plug the power cord and telephone line into the telephone base. If you
are using a DSL filter, plug the other end of the telephone line into the
filter. Route the telephone line cord (or DSL filter) through the wall mount
bracket hole.
2. Position the telephone base as shown below. Insert the extended tabs (see
below figure 2) of the wall mount bracket into the slots on the back of
the telephone base (marked B). Push the telephone base down until it is
securely in place.
3. Plug the telephone line cord (or DSL filter) into the wall jack. Plug the power
adapter into a power outlet not controlled by a wall switch.
4. Align the holes on the wall mount bracket with the standard wall plate
and slide the wall mount bracket down until it locks securely. Bundle the
telephone line cord and power adapter cord neatly with twist ties.
2
4
1
3
