4
Battery installation

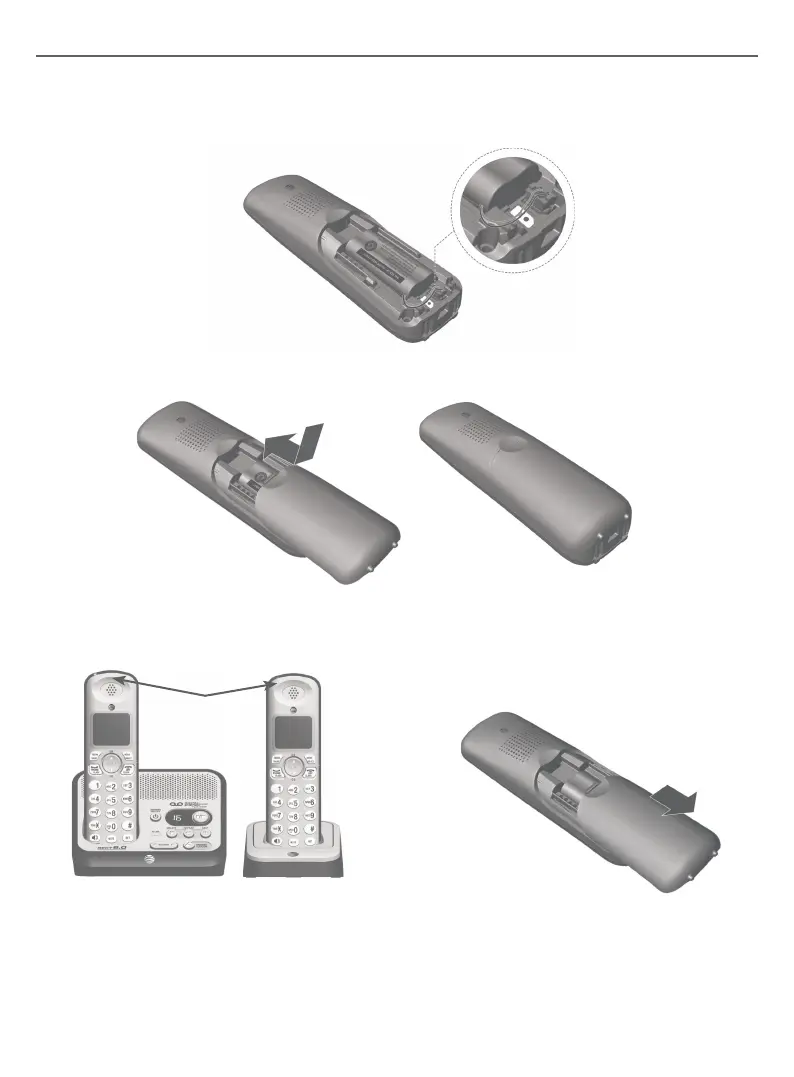

Install the battery, as shown below.
IMPORTANT INFORMATION:
Use only the supplied rechargeable battery or replacement battery (model BT162342/
BT166342). To order, visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
Plug the battery connector securely into the socket inside the handset battery compartment,
matching the color-coded label. Insert the supplied battery with the label THIS SIDE UP facing
up, as indicated.
1.
Align the cover at against the battery compartment, then slide it upwards until it clicks
into place.
2.
Charge the handset by placing it face up in the
telephone base or charger. The CHARGE light
is on when charging.
3.
To replace the battery, press the tab and slide
the battery compartment cover downwards.
Li out the old battery and disconnect it from
the handset. Follow the instructions to install
and charge the new battery.
CHARGE light
