236 User's Handbook to the Atari 400 / 800 Computers
operation.

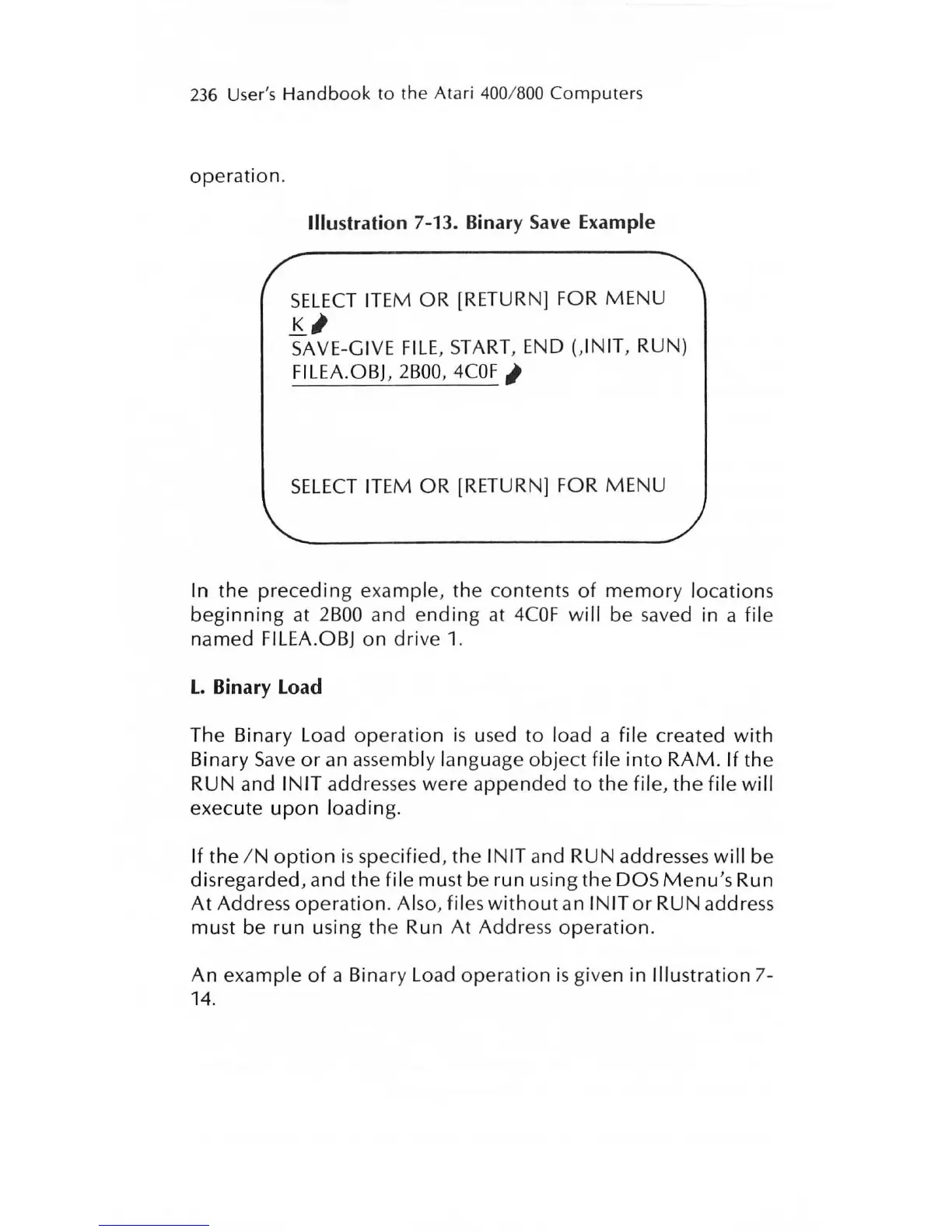

Illustration 7-13. Binary Save Example
SELECT ITEM OR [RETURN] FOR MENU
K,
SAVE-GIVE FILE, START, END (,INIT, RUN)
FILEA.OB], 2BOO, 4COF ,
SELECT ITEM OR [RETURN] FOR MENU
In the preceding example, the contents of memory locations
beginning at 2BOO and ending at 4COF will be saved in a file
named FILEA.OBJ on drive 1.
L. Binary Load
The Binary Load operation is used to load a file created with
Binary Save or an assembly language object file into RAM. If the
RUN and
INIT addresses were appended to the file, the file will
execute upon loading .
If the I N option is specified, the INIT and RUN addresses will be
disregarded, and the file must be run using the DOS Menu's Run
At Address operation . Also, files without an INIT or RUN address
must be
run using the Run At Address operation.
An example of a Binary Load operation is given in Illustration 7-
14.

Atari 400 Specifications

General

Manufacturer	Atari
Model	400
Type	Home Computer
Release Year	1979
CPU	MOS Technology 6502
CPU Speed	1.79 MHz
ROM	10 KB
Operating System	Atari OS
Keyboard	Membrane keyboard
RAM	8 KB (expandable to 48 KB)
Graphics	ANTIC and GTIA chips
Sound	4 channels
Display	RF output for connection to TV
Storage	Optional cassette tape drive or floppy disk drive
Ports	Cartridge
Display Resolution	320x192 (16 colors)
