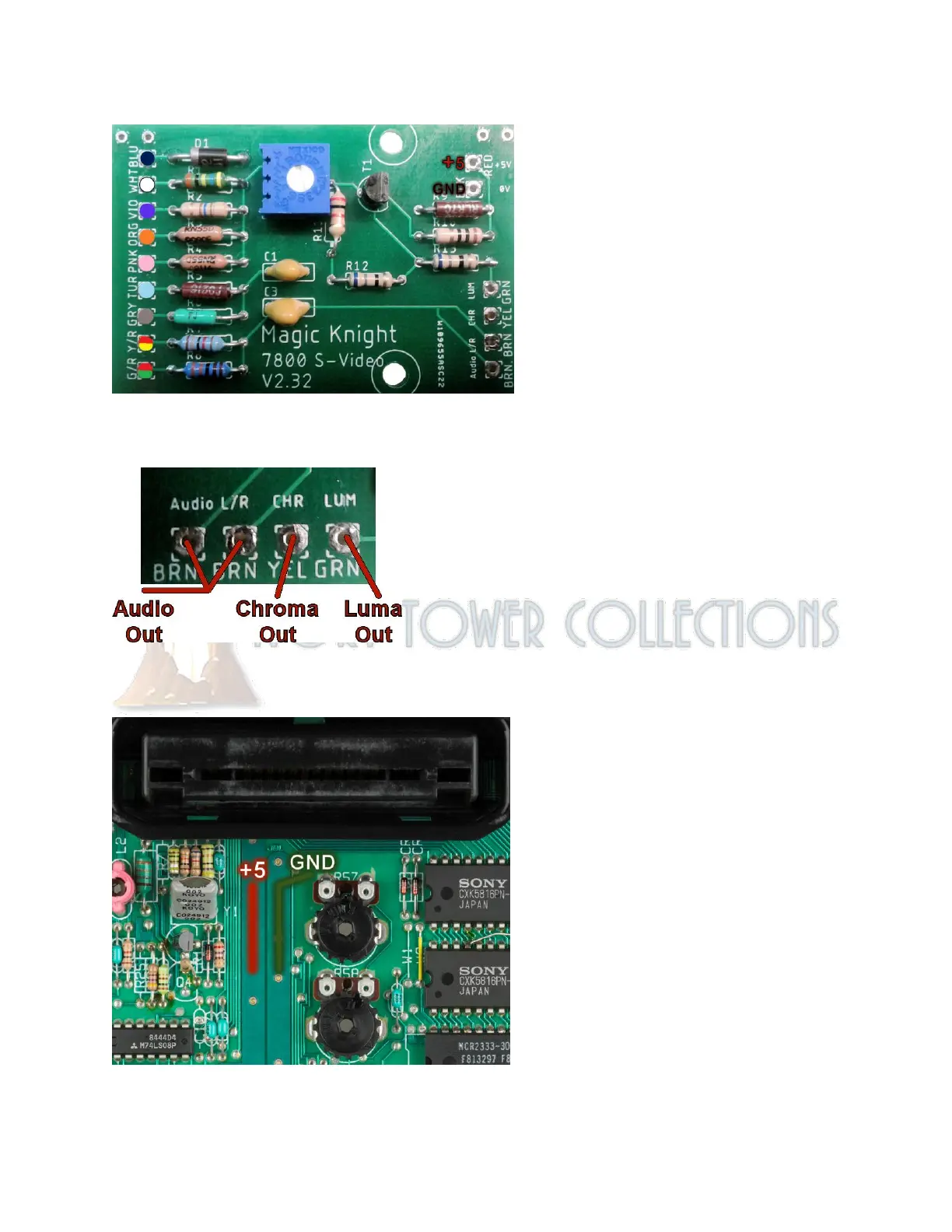

6. Solder your wires onto the MK AV board first to make it easier. Solder your wires that will go to the resistor
section along with your +5 and Gnd as marked on the MK AV board:
7. Solder your wires from the MK AV Video out section that will be connected to your AV out connections: (Chroma
& Luma are for S-Video, Audio L/R is designed dual mono not Stereo!)
8. Now solder the other ends of your +5 and Gnd wires from the MK AV board to the +5 and GND rails as labeled in
the upper center below: You can attach +5 and ground anywhere along these large traces on the board
