Asteroids

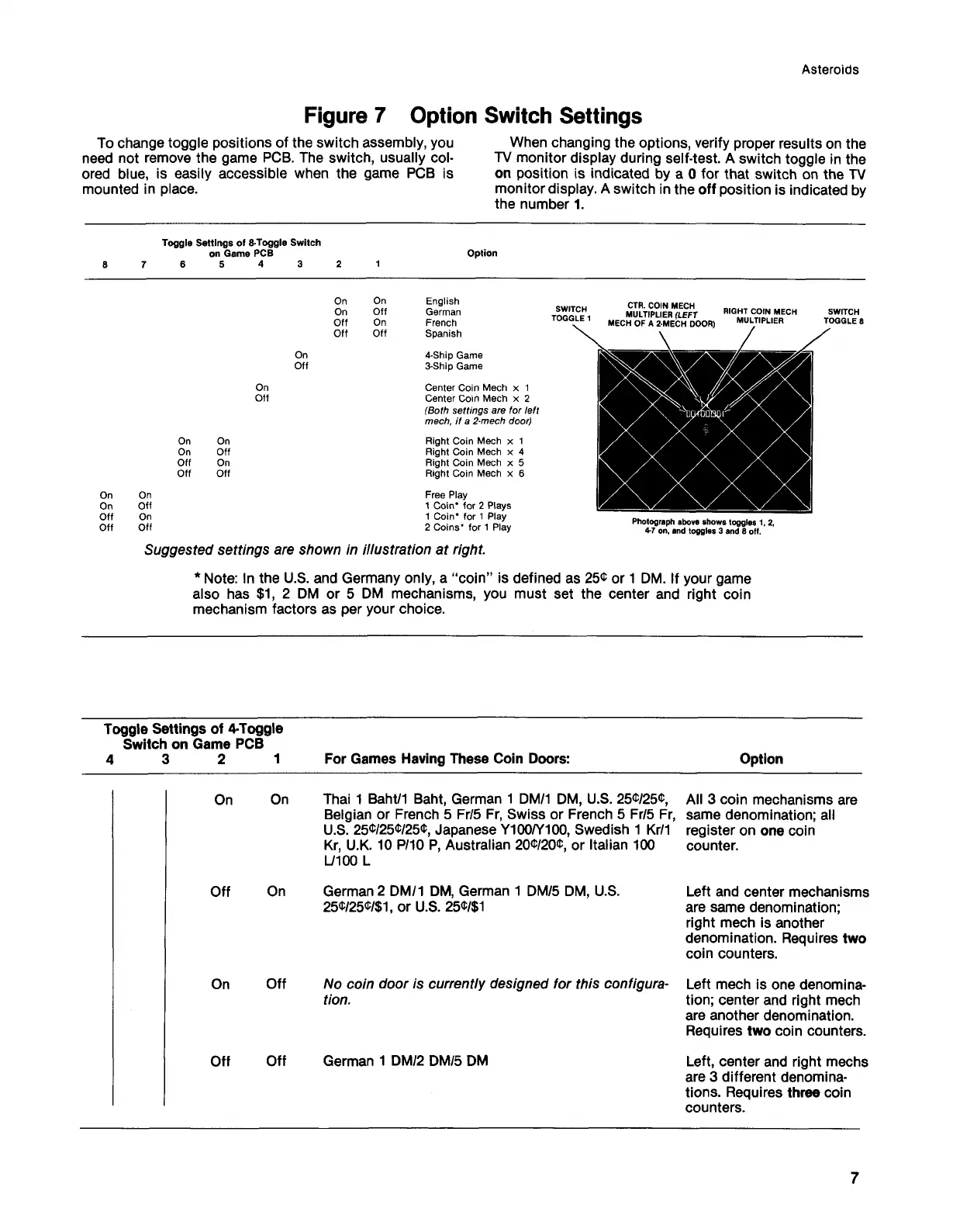

Figure 7 Option Switch Settings
To change toggle positions of the switch assembly, you
need not remove the game PCB. The switch, usually col
ored blue, is easily accessible when the game PCB is
mounted in place.
When changing the options, verify proper results on the
TV monitor display during self-test. A switch toggle in the
on position is indicated by a 0 for that switch on the TV
monitor display. A switch in the off position is indicated by
the number 1.
Toggle Settings of 8-Toggle Switch
on Game PCB
7 6 5 4 3 2
Option
On
On
Off
Off
On
Off
On
Off
On
Off
On
011
English
German
French
Spanish
4-Ship Game
3-Ship Game
Center Coin Mech x 1
Center Coin Mech x 2
(Both settings are for left
mech, if a 2-mech door)
SWITCH CTR· C 0IN MECH
TO GGLE 1 MULTIPLIER (LEFT
MECH OF A 2-MECH DOOR)
RIGHT COIN MECH
MULTIPLIER
On On Right Coin Mech x 1
On Off Right Coin Mech x 4
Off On Right Coin Mech x 5
Off Off
Right Coin Mech x 6
On
On
Free Play
On
Off
1 Coin* for 2 Plays
Off
On 1 Coin* for 1 Play
Off Off
2 Coins* for 1 Play
Suggested settings are shown in illustration at right.
Photograph above shows toggles 1, 2,
4-7 on, and toggles 3 and β off.
* Note: In the U.S. and Germany only, a “coin” is defined as 25® or 1 DM. If your game
also has $1, 2 DM or 5 DM mechanisms, you must set the center and right coin
mechanism factors as per your choice.
Toggle Settings of 4-Toggle
Switch on Game PCB
4 3 2 1
For Games Having These Coin Doors:
Option
On On Thai 1 Baht/1 Baht, German 1 DM/1 DM, U.S. 25Φ/25Φ,
Belgian or French 5 Fr/5 Fr, Swiss or French 5 Fr/5 Fr,
U.S. 25Φ/25Φ/25Φ, Japanese Y100/Y100, Swedish 1 Kr/1
Kr, U.K. 10 P/10 P, Australian 201/20®, or Italian 100
L/100 L
Off On German 2 DM/1 DM, German 1 DM/5 DM, U.S.
25<t/25<t/$1, or U.S. 25<t/$1
On Off No coin door is currently designed for this configura
tion.
Off Off German 1 DM/2 DM/5 DM
All 3 coin mechanisms are
same denomination; all
register on one coin
counter.
Left and center mechanisms
are same denomination;
right mech is another
denomination. Requires two
coin counters.
Left mech is one denomina
tion; center and right mech
are another denomination.
Requires two coin counters.
Left, center and right mechs
are 3 different denomina
tions. Requires three coin
counters.
7
