Asteroids

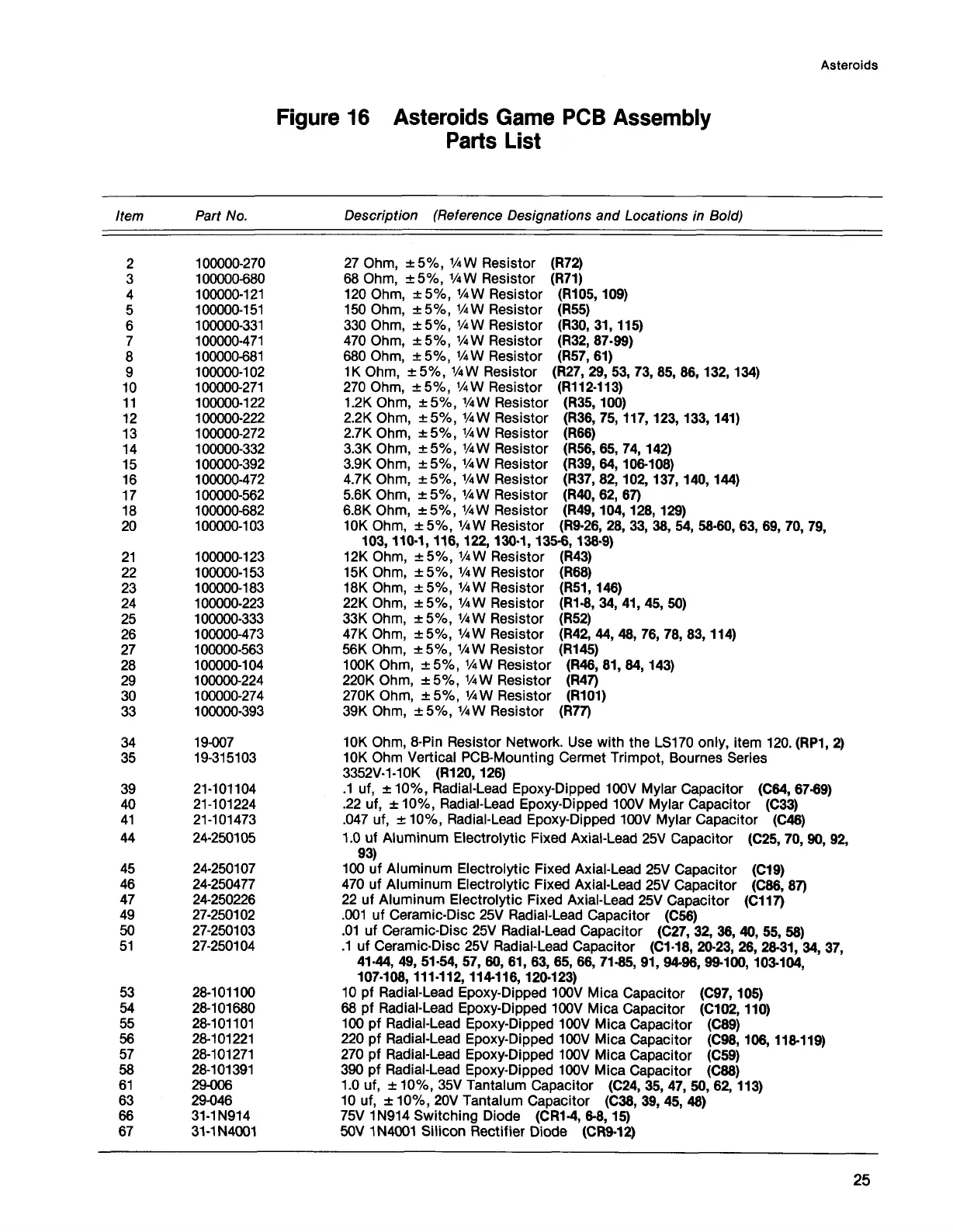

Figure 16 Asteroids Game PCB Assembly
Parts List
Part No. Description (Reference Designations and Locations in Bold)
100000-270
100000-680
100000-121
100000-151
100000-331
100000-471
100000-681
100000-102
100000-271
100000-122
100000-222
100000-272
100000-332
100000-392
100000-472
100000-562
100000-682
100000-103
100000-123
100000-153
100000-183
100000-223
100000-333
100000-473
100000-563
100000-104
100000-224
100000-274
100000-393
19-007
19-315103
21-101104
21-101224
21-101473
24-250105
24-250107
24-250477
24-250226
27-250102
27-250103
27-250104
28-101100
28-101680
28-101101
28-101221
28-101271
28-101391
29-006
29-046
31-1N914
31-1N4001
27 Ohm, ±5% , 1AW Resistor
68 Ohm, ±5% , 1AW Resistor
120 Ohm, ±5% , WW Resistor
150 Ohm, ±5% , 1AW Resistor
330 Ohm, ±5% , 1AW Resistor
470 Ohm, ±5% , 1AW Resistor
680 Ohm, ±5% , V4 W Resistor
1K Ohm, ±5% , 1AW Resistor
270 Ohm, ±5% , 1AW Resistor
1.2K Ohm, ±5% , 1AW Resistor
2.2K Ohm, ±5% , 1AW Resistor
2.7K Ohm, ±5% , 1AW Resistor
3.3K Ohm, ±5% , 1AW Resistor
3.9K Ohm, ±5% , 1AW Resistor
4.7K Ohm, ± 5% , 1AW Resistor
5.6K Ohm, ±5% , 1AW Resistor
6.8K Ohm, ±5% , 1AW Resistor
10K Ohm, ±5% , 1AW Resistor
103,110-1,116,122,130-1,135-6,138-9)
12KOhm, ± 5% , 1AW Resistor (R43)
15K Ohm, ±5% , 'AW Resistor
18K Ohm, ±5% , 1AW Resistor
22K Ohm, ±5% , 1/4 W Resistor
33K Ohm, ±5% , 1AW Resistor
47K Ohm, ±5% , 1AW Resistor
56K Ohm, ±5% , Va \ N Resistor
100K Ohm, ±5% , 1AW Resistor
220K Ohm, ±5% , 1AW Resistor
270K Ohm, ±5% ,
1/4 W Resistor
39K Ohm, ±5% , 1AW Resistor
(R72)
(R71)
(R105,109)
(R55)
(R30, 31,115)
(R32, 87-99)
(R57, 61)
(R27, 29, 53, 73, 85, 86, 132, 134)
(R112-113)
(R35, 100)
(R36, 75, 117,123, 133, 141)
(R66)
(R56, 65, 74, 142)
(R39, 64,106-108)
(R37, 82,102, 137, 140, 144)
(R40, 62, 67)
(R49,104, 128, 129)
(R9-26, 28, 33, 38, 54, 58-60, 63, 69, 70, 79,
(R68)
(R51, 146)
(R1-8, 34, 41, 45, 50)
(R52)
(R42, 44, 48, 76, 78, 83,114)
(R145)
(R46, 81, 84, 143)
(R47)
(R101)
(R77)
10K Ohm, 8-Pin Resistor Network. Use with the LS170 only, item 120. (RP1, 2)
10K Ohm Vertical PCB-Mounting Cermet Trimpot, Bournes Series
3352V-1-10K (R120, 126)
.1 uf, ± 10%, Radial-Lead Epoxy-Dipped 100V Mylar Capacitor (C64, 67-69)
.22 uf, ±10%, Radial-Lead Epoxy-Dipped 100V Mylar Capacitor (C33)
.047 uf, ± 10%, Radial-Lead Epoxy-Dipped 100V Mylar Capacitor (C46)
1.0 uf Aluminum Electrolytic Fixed Axial-Lead 25V Capacitor (C25, 70, 90, 92,
93)
100 uf Aluminum Electrolytic Fixed Axial-Lead 25V Capacitor (C19)
470 uf Aluminum Electrolytic Fixed Axial-Lead 25V Capacitor (C86, 87)
22 uf Aluminum Electrolytic Fixed Axial-Lead 25V Capacitor (C117)
.001 uf Ceramic-Disc 25V Radial-Lead Capacitor (C56)
.01 uf Ceramic-Disc 25V Radial-Lead Capacitor (C27, 32, 36, 40, 55, 58)
.1 uf Ceramic-Disc 25V Radial-Lead Capacitor (C1-18, 20-23, 26, 28-31, 34, 37,
41-44, 49, 51-54, 57, 60, 61, 63, 65, 66, 71-85, 91, 94-96, 99-100, 103-104,
107-108, 111-112, 114-116, 120-123)
10 pf Radial-Lead Epoxy-Dipped 100V Mica Capacitor
68 pf Radial-Lead Epoxy-Dipped 100V Mica Capacitor
100 pf Radial-Lead Epoxy-Dipped 100V Mica Capacitor
220 pf Radial-Lead Epoxy-Dipped 100V Mica Capacitor
270 pf Radial-Lead Epoxy-Dipped 100V Mica Capacitor
390 pf Radial-Lead Epoxy-Dipped 100V Mica Capacitor
1.0 uf, ± 10%, 35V Tantalum Capacitor (C24, 35, 47, 50, 62,113)
10 uf, ± 10%, 20V Tantalum Capacitor (C38, 39, 45, 48)
75V 1N914 Switching Diode (CR1-4, 6-8,15)
50V 1N4001 Silicon Rectifier Diode (CR9-12)
(C 97,105)
(C102,110)
(C89)
(C 98,106,118-119)
(C59)
(C88)
25
