Asteroids
NOTICE TO ALL PERSONS RECEIVING THIS DRAWING
CONFIDENTIAL Reproduction forbidden without the
specific written permission of Atari. Inc. Sunnyvale,
California. This drawing is only conditionally issued, and
neither receipt nor possession thereof confers or transfers
any right in. or license to use. the subject matter of the
drawing or any design or technical inform ation shown
thereon, nor any right to reproduce this drawing or any part
thereof, except for manufacture by vendors of Atari. Incor
porated and for manufacture under the corporation's w rit
ten license, no right to reproduce this drawing is granted
or the subject matter thereof unless by written agreement
with or written perm ission from the corporation
- 0 2 O N LY
— E>N & BN

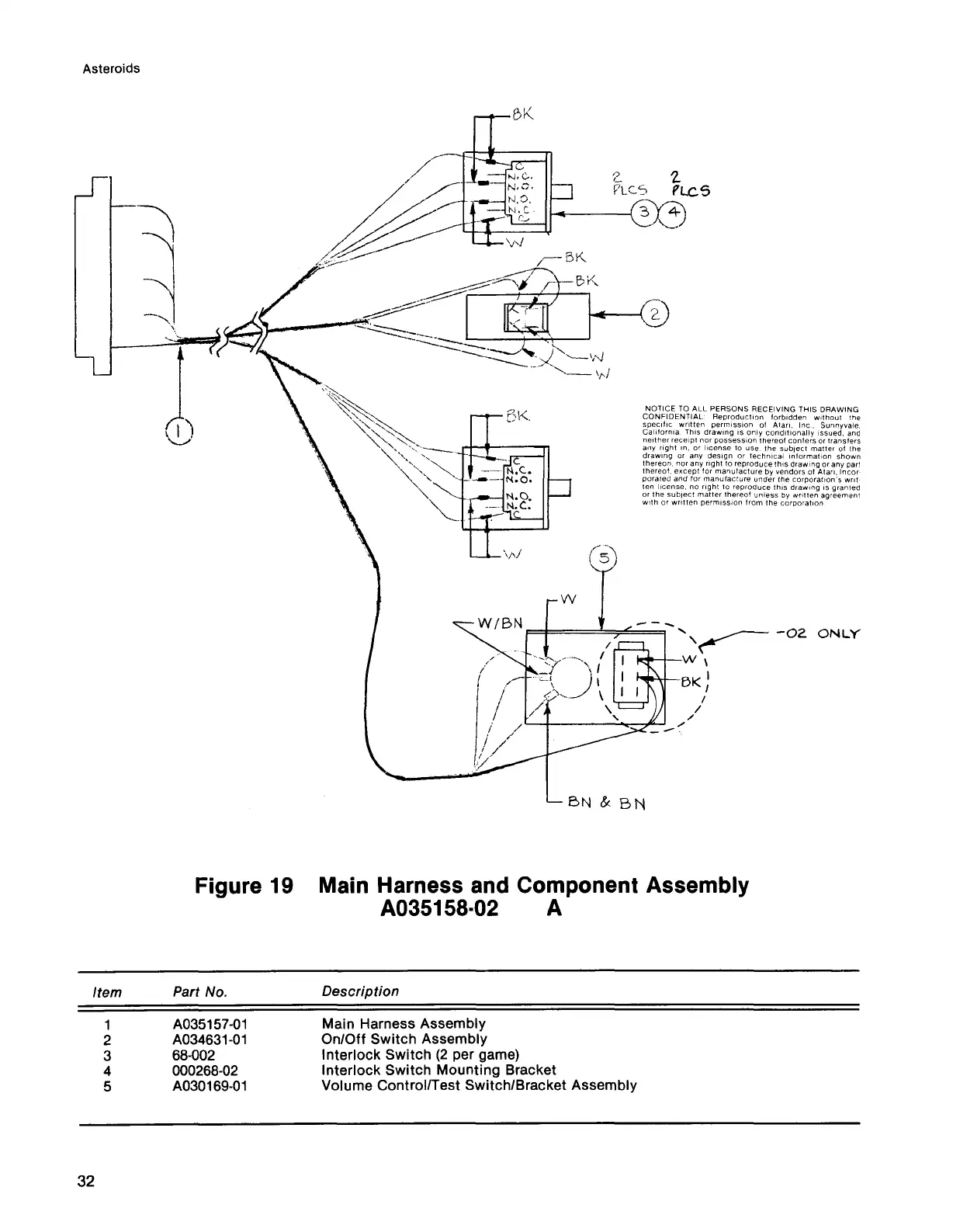

Figure 19 Main Harness and Component Assembly
A035158-02 A
Item
Part No.
Description
1
A035157-01
Main Harness Assembly
2
A034631-01
On/Off Switch Assembly
3
68-002
Interlock Switch (2 per game)
4
000268-02
Interlock Switch Mounting Bracket
5
A030169-01
Volume Control/Test Switch/Bracket Assembly
32
