Asteroids

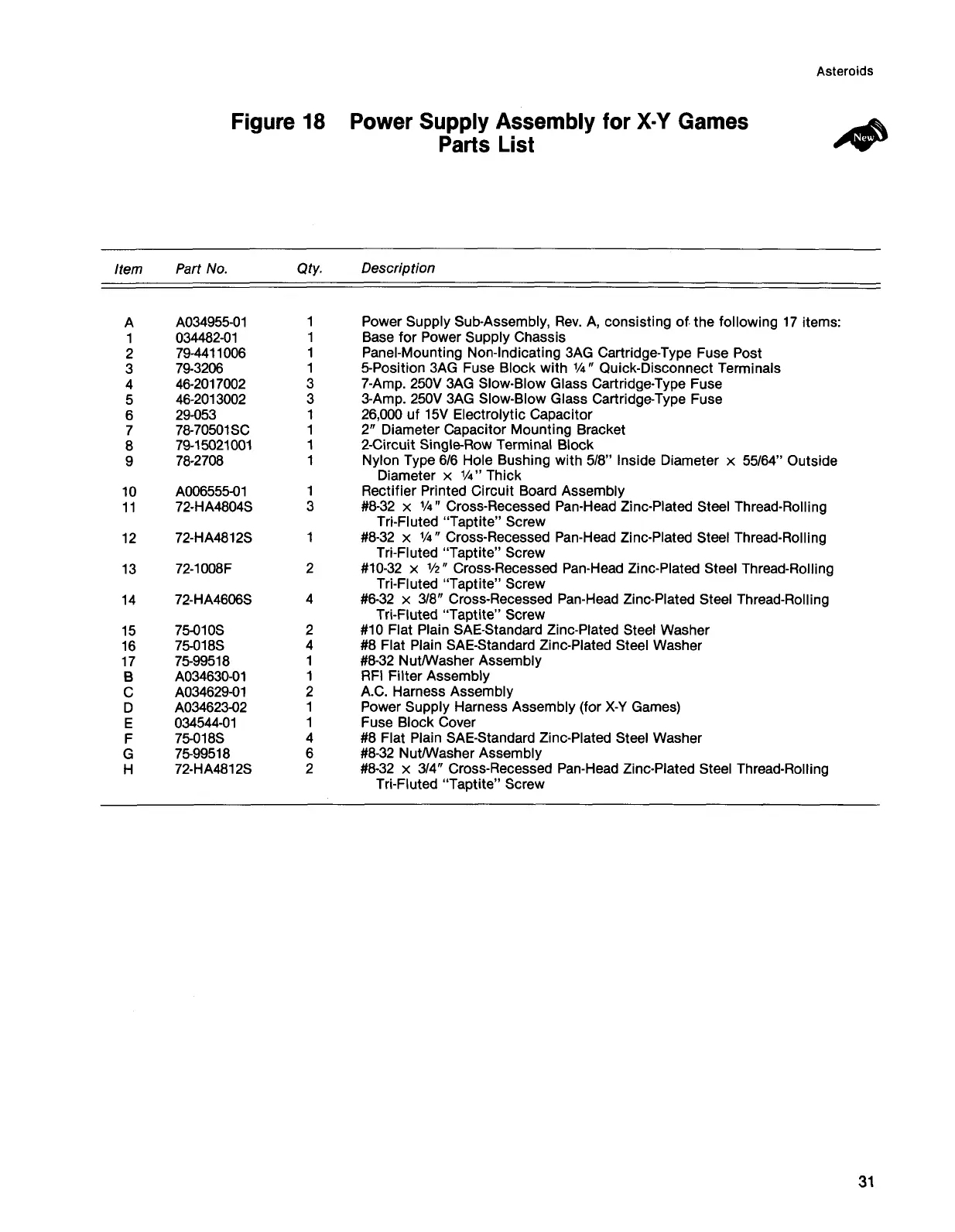

Figure 18 Power Supply Assembly for X-Y Games
Parts List
Item
Part No.
Qty.
Description
A
A034955-01
1
Power Supply Sub-Assembly, Rev. A, consisting of the following 17 items:
1
034482-01
1
Base for Power Supply Chassis
2
79-4411006
1
Panel-Mounting Non-Indicating 3AG Cartridge-Type Fuse Post
3
79-3206
1
5-Position 3AG Fuse Block with 1A " Quick-Disconnect Terminals
4
46-2017002
3 7-Amp. 250V 3AG Slow-Blow Glass Cartridge-Type Fuse
5
46-2013002
3 3-Amp. 250V 3AG Slow-Blow Glass Cartridge-Type Fuse
6
29-053
1
26,000 uf 15V Electrolytic Capacitor
7 78-70501 SC
1 2" Diameter Capacitor Mounting Bracket
8
79-15021001
1 2-Circuit Single-Row Terminal Block
9
78-2708
1
Nylon Type 6/6 Hole Bushing with 5/8” Inside Diameter x 55/64” Outside
Diameter x 1A " Thick
10
A006555-01
1
Rectifier Printed Circuit Board Assembly
11
72-HA4804S
3
#8-32 x 1A " Cross-Recessed Pan-Head Zinc-Plated Steel Thread-Rolling
Tri-Fluted “Taptite” Screw
12
72-HA4812S
1
#8-32 x V*" Cross-Recessed Pan-Head Zinc-Plated Steel Thread-Rolling
Tri-Fluted “Taptite” Screw
13
72-1008F
2 #10-32 x Vi" Cross-Recessed Pan-Head Zinc-Plated Steel Thread-Rolling
Tri-Fluted “Taptite” Screw
14 72-HA4606S
4
#6-32 x 3/8" Cross-Recessed Pan-Head Zinc-Plated Steel Thread-Rolling
Tri-Fluted “Taptite” Screw
15
75-01 OS
2 #10 Flat Plain SAE-Standard Zinc-Plated Steel Washer
16
75-018S
4
#8 Flat Plain SAE-Standard Zinc-Plated Steel Washer
17 75-99518
1 #8-32 Nut/Washer Assembly
B
A034630-01
1
RFI Filter Assembly
C
A034629-01 2
A.C. Harness Assembly
D
A034623-02
1
Power Supply Harness Assembly (for X-Y Games)
E
034544-01
1 Fuse Block Cover
F
75-018S
4 #8 Flat Plain SAE-Standard Zinc-Plated Steel Washer
G
75-99518
6
#8-32 Nut/Washer Assembly
H
72-HA4812S
2 #8-32 x 314" Cross-Recessed Pan-Head Zinc-Plated Steel Thread-Rolling
Tri-Fluted “Taptite” Screw
31
