Asteroids
TOP VIEW
NOTE:
The four available voltage selection plugs are listed in
Figure 14, Final Assembly.
NOTICE TO ALL PERSONS RECEIVING THIS DRAWING
CONFIDENTIAL: Reproduction forbidden without the
specific written permission of Atari, Inc.. Sunnyvale.
California. This drawing is only conditionally issued, and
neither receipt nor possession thereof confers or transfers
any right m. or license to use. the subject m atter of the
drawing or any design or technical information shown
thereon, nor any right to reproduce this drawing or any part
thereof, except for m anufacture by vendors of Atari. Incor
porated and for manufacture under the corporation s writ
ten license, no right to reproduce this drawing is granted
or the subject m atter thereof unless by written agreement
with or w ritten perm ission from the corporation
BOTTOM VIEW

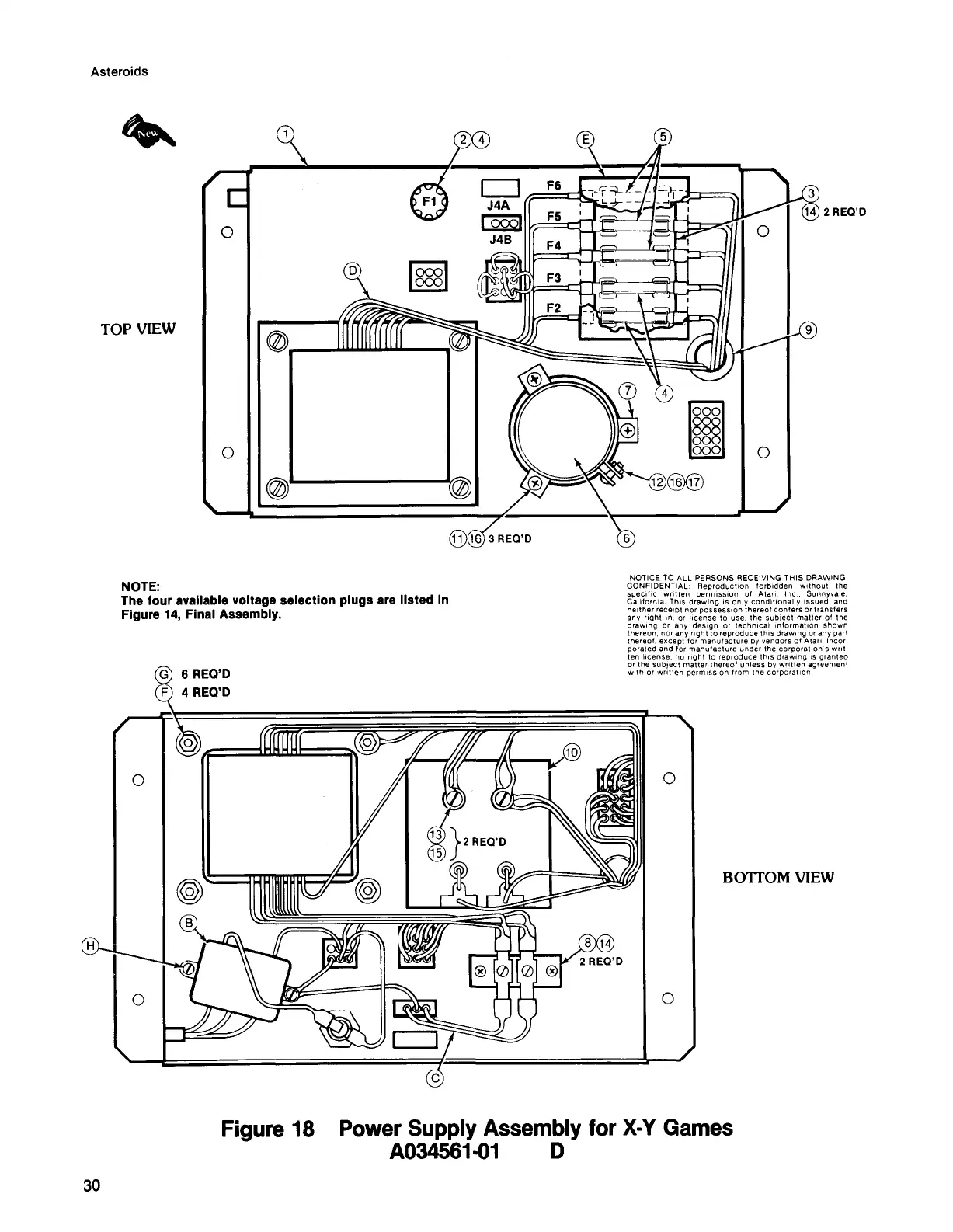

Figure 18 Power Supply Assembly for X-Y Games
A034561-01 D
30
