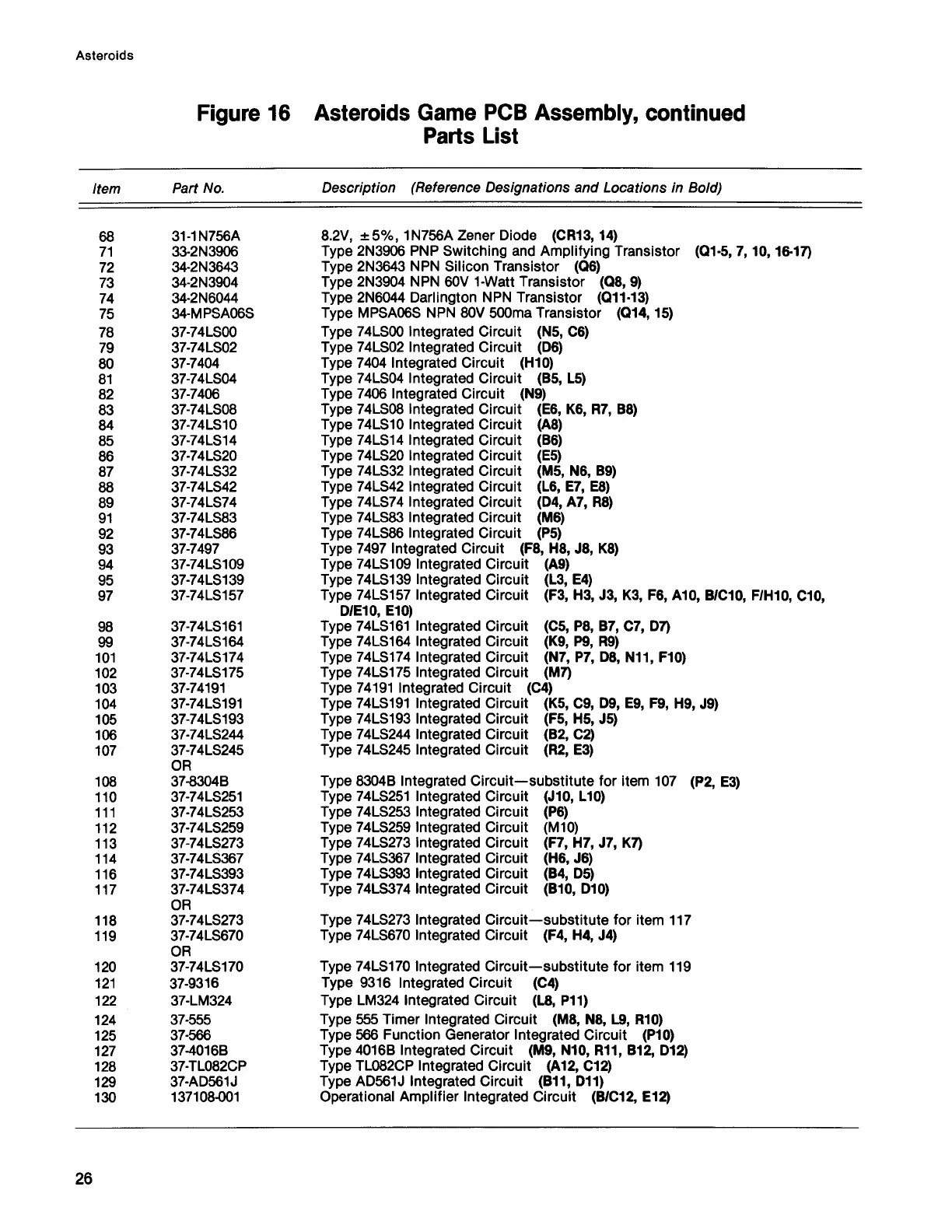

Figure 16 Asteroids Game PCB Assembly, continued
Parts List
Item
Part No.
Description (Reference Designations and Locations in Bold)
68
31-1N756A
8.2V, ± 5%, 1N756A Zener Diode (CR13,14)
71
33-2 N3906
Type 2N3906 PNP Switching and Amplifying Transistor (Q1-5, 7,10,16-17)
72
34-2 N3643
Type 2N3643 NPN Silicon Transistor (Q6)
73
34-2 N 3904
Type 2N3904 NPN 60V 1-Watt Transistor (Q8, 9)
74
34-2N6044
Type 2N6044 Darlington NPN Transistor (Q11-13)
75
34-MPSA06S
Type MPSA06S NPN 80V 500ma Transistor (Q14,15)
78
37-74LS00
Type 74LS00 Integrated Circuit (N5, C6)
79
37-74LS02 Type 74LS02 Integrated Circuit (D6)
80
37-7404
Type 7404 Integrated Circuit (H10)
81
37-74LS04 Type 74LS04 Integrated Circuit (B5, L5)
82
37-7406
Type 7406 Integrated Circuit (N9)
83
37-74LS08
Type 74LS08 Integrated Circuit (E6, K6, R7, B8)
84
37-74LS10 Type 74LS10 Integrated Circuit (A8)
85
37-74LS14 Type 74LS14 Integrated Circuit (B6)
86
37-74LS20 Type 74LS20 Integrated Circuit (E5)
87
37-74LS32 Type 74LS32 Integrated Circuit (M5, N6, B9)
88
37-74LS42
Type 74LS42 Integrated Circuit (L6, E7, E8)
89
37-74LS74 Type 74LS74 Integrated Circuit (D4, A7, R8)
91
37-74LS83
Type 74LS83 Integrated Circuit (M6)
92
37-74LS86
Type 74LS86 Integrated Circuit (P5)
93
37-7497
Type 7497 Integrated Circuit (F8, H8, J8, K8)
94
37-74LS109
Type 74LS109 Integrated Circuit (A9)
95
37-74LS139 Type 74LS139 Integrated Circuit (L3, E4)
97
37-74LS157 Type 74LS157 Integrated Circuit (F3, H3, J3, K3, F6, A10, B/C10, F/H10, C10,
D/E10, E10)
98
37-74LS161
Type 74LS161 Integrated Circuit (C5, P8, B7, C7, D7)
99
37-74LS164
Type 74LS164 Integrated Circuit (K9, P9, R9)
101
37-74LS174 Type 74LS174 Integrated Circuit (N7, P7, D8, N11, F10)
102
37-74LS175
Type 74LS175 Integrated Circuit (M7)
103
37-74191
Type 74191 Integrated Circuit (C4)
104
37-74LS191
Type 74LS191 Integrated Circuit (K5, C9, D9, E9, F9, H9, J9)
105
37-74LS193
Type 74LS193 Integrated Circuit (F5, H5, J5)
106
37-74LS244 Type 74LS244 Integrated Circuit (B2, C2)
107
37-74LS245
OR
37-8304B
Type 74LS245 Integrated Circuit (R2, E3)
108
Type 8304B Integrated Circuit— substitute for item 107 (P2, E3)
110
37-74LS251
Type 74LS251 Integrated Circuit (J10, L10)
111
37-74LS253
Type 74LS253 Integrated Circuit (P6)
112
37-74LS259
Type 74LS259 Integrated Circuit (M10)
113
37-74LS273
Type 74LS273 Integrated Circuit (F7, H7, J7, K7)
114
37-74LS367 Type 74LS367 Integrated Circuit (H6, J6)
116
37-74LS393
Type 74LS393 Integrated Circuit (B4, D5)
117
37-74LS374
OR
37-74LS273
Type 74LS374 Integrated Circuit (B10, D10)
118
Type 74LS273 Integrated Circuit— substitute for item 117
119
37-74LS670
OR
37-74LS170
Type 74LS670 Integrated Circuit (F4, H4, J4)
120
Type 74LS170 Integrated Circuit— substitute for item 119
121
37-9316 Type 9316 Integrated Circuit (C4)
122
37-LM324 Type LM324 Integrated Circuit (L8, P11)
124
37-555
Type 555 Timer Integrated Circuit (M8, N8, L9, R10)
125
37-566
Type 566 Function Generator Integrated Circuit (P10)
127
37-4016B Type 4016B Integrated Circuit (M9, N10, R11, B12, D12)
128
37-TL082CP
Type TL082CP Integrated Circuit (A12, C12)
129
37-AD561J
Type AD561J Integrated Circuit (B11, D11)
130
137108-001
Operational Amplifier Integrated Circuit (B/C12, E12)
