Asteroids

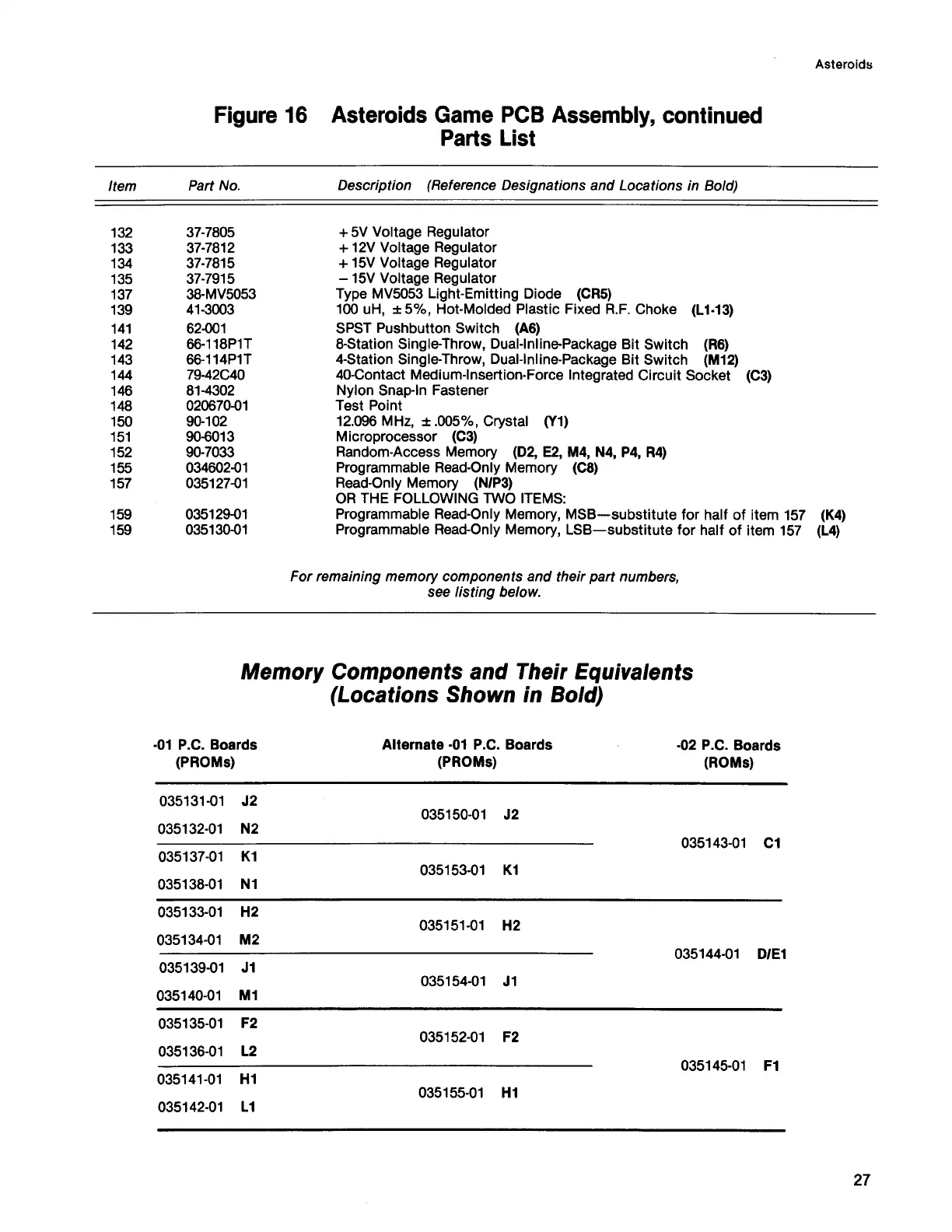

Figure 16 Asteroids Game PCB Assembly, continued
Parts List
Part No. Description (Reference Designations and Locations in Bold)
37-7805
+ 5V Voltage Regulator
37-7812
+ 12V Voltage Regulator
37-7815
+ 15V Voltage Regulator
37-7915
- 15V Voltage Regulator
38-MV5053
Type MV5053 Light-Emitting Diode (CR5)
41-3003
100 uH, ±5% , Hot-Molded Plastic Fixed R.F. Choke (L1-13)
62-001
SPST Pushbutton Switch (A6)
66-118P1T
8-Station Single-Throw, Dual-lnline-Package Bit Switch (R6)
66-114P1T 4-Station Single-Throw, Dual-lnline-Package Bit Switch (M12)
79-42C40 40-Contact Medium-lnsertion-Force Integrated Circuit Socket (C3)
81-4302
Nylon Snap-In Fastener
020670-01 Test Point
90-102
12.096 MHz, ±.005%, Crystal (Y1)
90-6013
Microprocessor (C3)
90-7033
Random-Access Memory (D2, E2, M4, N4, P4, R4)
034602-01
Programmable Read-Only Memory (C8)
035127-01
Read-Only Memory (N/P3)
OR THE FOLLOWING TW O ITEMS:
035129-01
Programmable Read-Only Memory, MSB— substitute for half of item 157
(K4)
035130-01 Programmable Read-Only Memory, LSB— substitute for half of item 157
(L4)
For remaining memory components and their part numbers,
see listing below.
Memory Components and Their Equivalents
(Locations Shown in Bold)
-01 P.C. Boards Alternate -01 P.C. Boards -02 P.C. Boards
(PROMs)
(PROMs)
(ROMs)
035131-01 J2
035132-01 N2
035150-01 J2
035143-01 C1
035137-01 K1
035138-01 N1
035153-01 K1
035133-01 H2
035134-01 M2
035151-01 H2
035144-01 D/E1
035139-01 J1
035140-01 M1
035154-01 J1
035135-01 F2
035136-01 L2
035152-01 F2
035145-01 F1
035141-01 H1
035142-01 L1
035155-01 H1
27
To Next Page
