ATB AQUAmax BASIC series - ATBcontrol 3 Technical Data

Operation and maintenance manual AQUAmax
®
BASIC/CLASSIC
ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com /
Art.-No.: 9060 0210 / Status: 30.01.2019 / Page 22 from 40
ATBcontrol
©
3 – Technical data
Casing
Material: ABS with CR sealing material
Type of protection: IP 54
Dimensions: 205 x 150 x 70 mm (W x H x D), incl. fixing attachments and screwed
connections
Power supply
Input voltage : 230VAC, 50/60 Hz ± 10%
Overvoltage protection: 300 V AC
Input fuse: PTC (thermal fuse activates at 130°C, not resettable)
Power consumption: type 2.0W
(with unilluminated display and potential-free contact switched OFF)
Inputs
1 Digital input: 230V AC, opto-decoupled
Outputs
Output voltage: 230 V AC, 50/60 Hz ± 10%
Nominal load current: 16.0 A (contact rating), ohmic load
Output fuse: T 6.3 A (max. !)

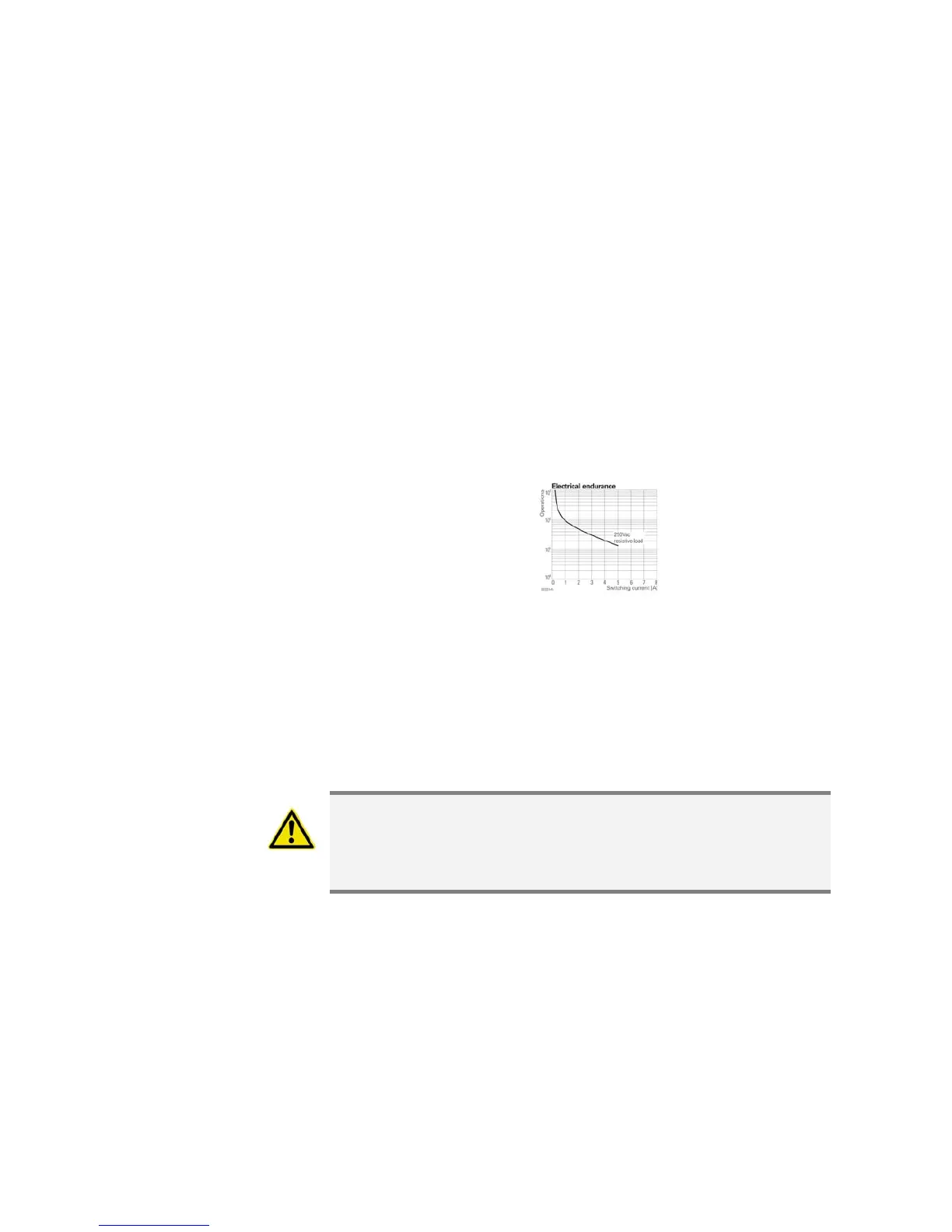

Potential-free contact
Contact voltage: 250 V AC / 30 V DC
Contact rating: 5A, ohmic load
Temperature range
Equipment function: 0°C to +50°C
Display indicator: 0°C to +50°C
Accumulators: 2xNiMH, 1.2V, Type AA, 2,100 mAH; Service life: 1000
charge/discharge cycles
with trickle charge: min. 6 years
|
25°
with trickle charge: min. 3 years
|
45°
ATTENTION!
It is recommended to have the accumulators exchanged every two
years by an authorised specialist firm.
The exchange of the accumulators with batteries is forbidden due to
the danger of explosion!
