Atek ALC 77-C User Manual

73,5 mm
73,5 mm
69 mm
69 mm
ELECTRICAL CHARACTERISTICS
SUPPLY VOLTAGE
24 VAC/DC 50/60 Hz
85-265 VAC 50/60 Hz
POWER CONSUMPTION
5.5 VA / 4.4 W Max
SENSOR SUPPLY
VOLTAGE
5 VDC 100 mA (for TTL Sensor)
12 VDC 100 mA (for Push-Pull Sensor)
CONNECTION
2,5 mm² screw-clemens
INPUTS
A/B Encoder Pulse Inputs (600 KHz speed reading)
Z (external reset) Input
Hold Input
OUTPUTS
2 pieces 250 VAC 3A (for Resistive Load) Relay
SERIAL
COMMUNICATION
RS-232 (Optional)
PHYSICAL CHARACTERISTICS
DIMENSIONS
73,5 x 73,5 x 96 mm
WEIGHT
300 gr.
MOUNTING
Upper and lower legs are fixed to the clipboard.
RELATIVE HUMIDITY
%80 up to 31 °C , %50 up to 40 °C
STORAGE TEMPERATURE
-10 UP TO 60 °C
OPERATING
TEMPERATURE
0 UP TO 50 °C
PROTECTION CLASS
IP 60 Front Panel, IP 20 Back panel
DIMENSIONS

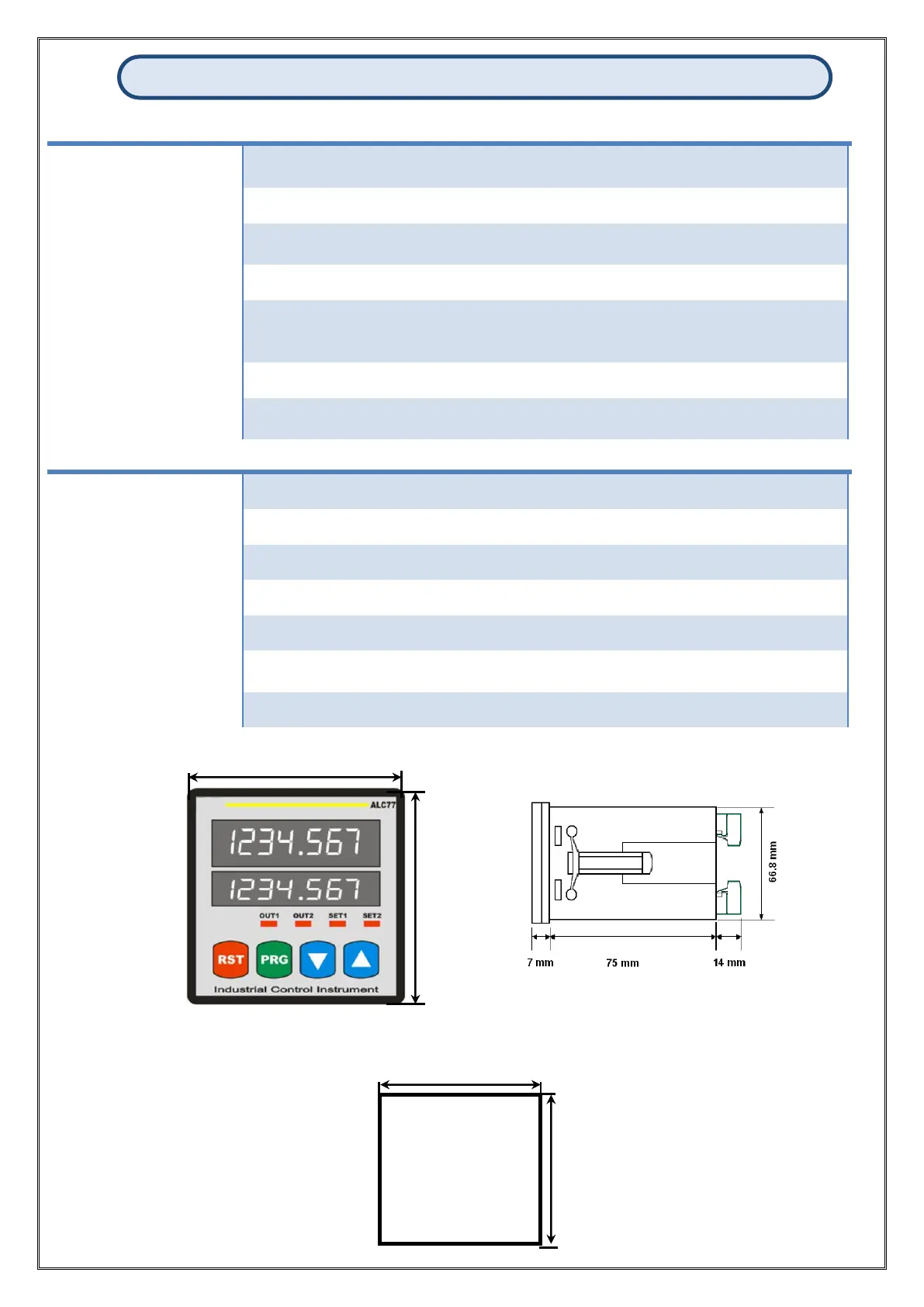

Pano Dimensions:
1. TECHNICAL FEATURES
- 1 -

Atek ALC 77-C Specifications

General

Brand	Atek
Model	ALC 77-C
Category	Control Unit
Language	English
