ATH 2.32H2 - Hydraulikaggregat; Hydraulikschema

26

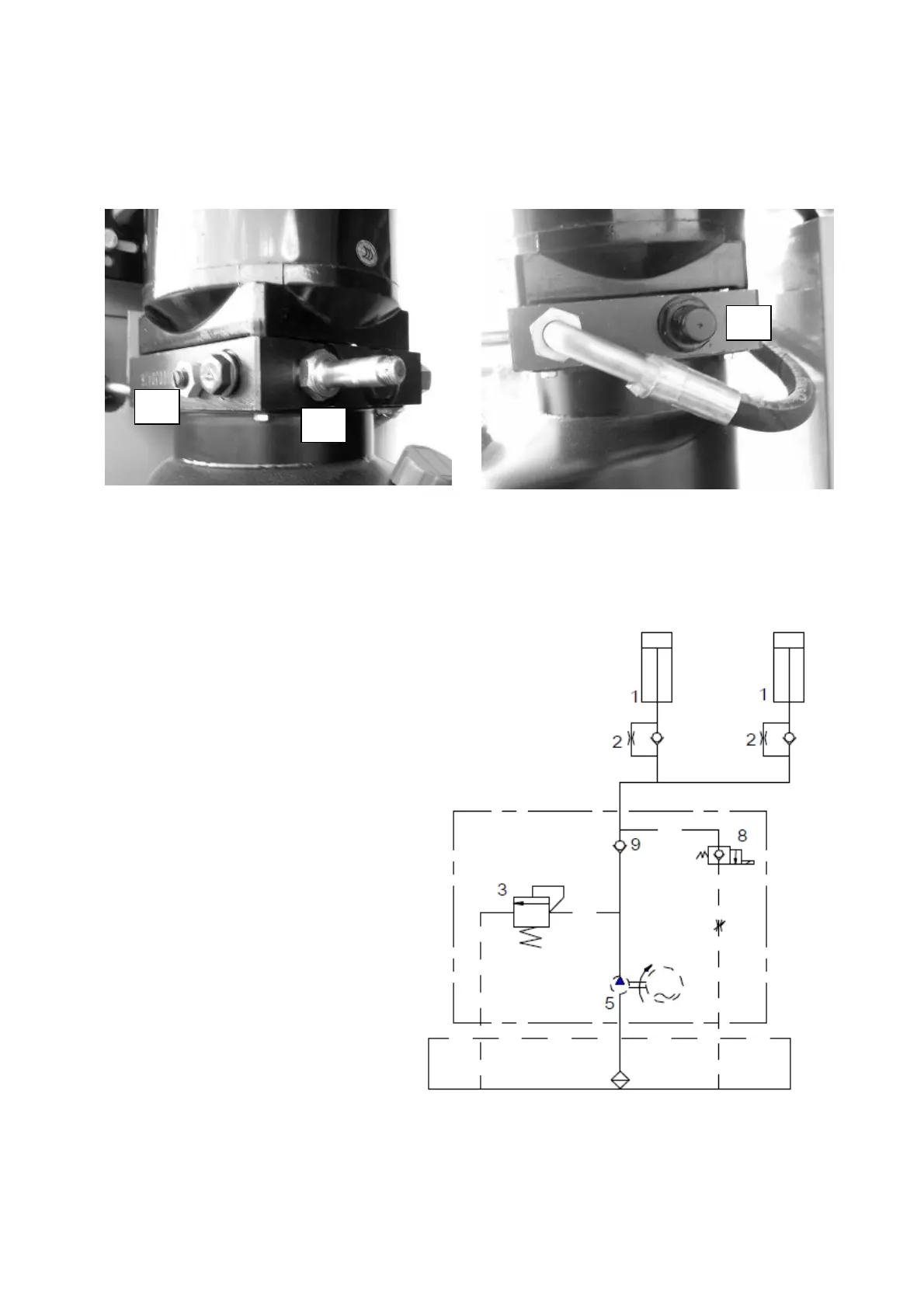

3.6 Hydraulik-Aggregat
Hydraulic aggregate
3.7 Hydraulikschema
Hydraulic scheme
1 Hydraulikzylinder/
Hydraulic cylinder
2 Schlauchbruchsicherung/
Safety against hose breakage
3 Druckbegrenzungsventil/
Blow-off valve
4 Senkgeschwindigkeit/
Lowering time
5 Hydraulikpumpe/
Hydraulic pump
8 Senkventil/
Lowering valve
9 Rückschlagventil/
Non-return valve
4
3
8
4
