Installing the ATI-TV Card
2-4

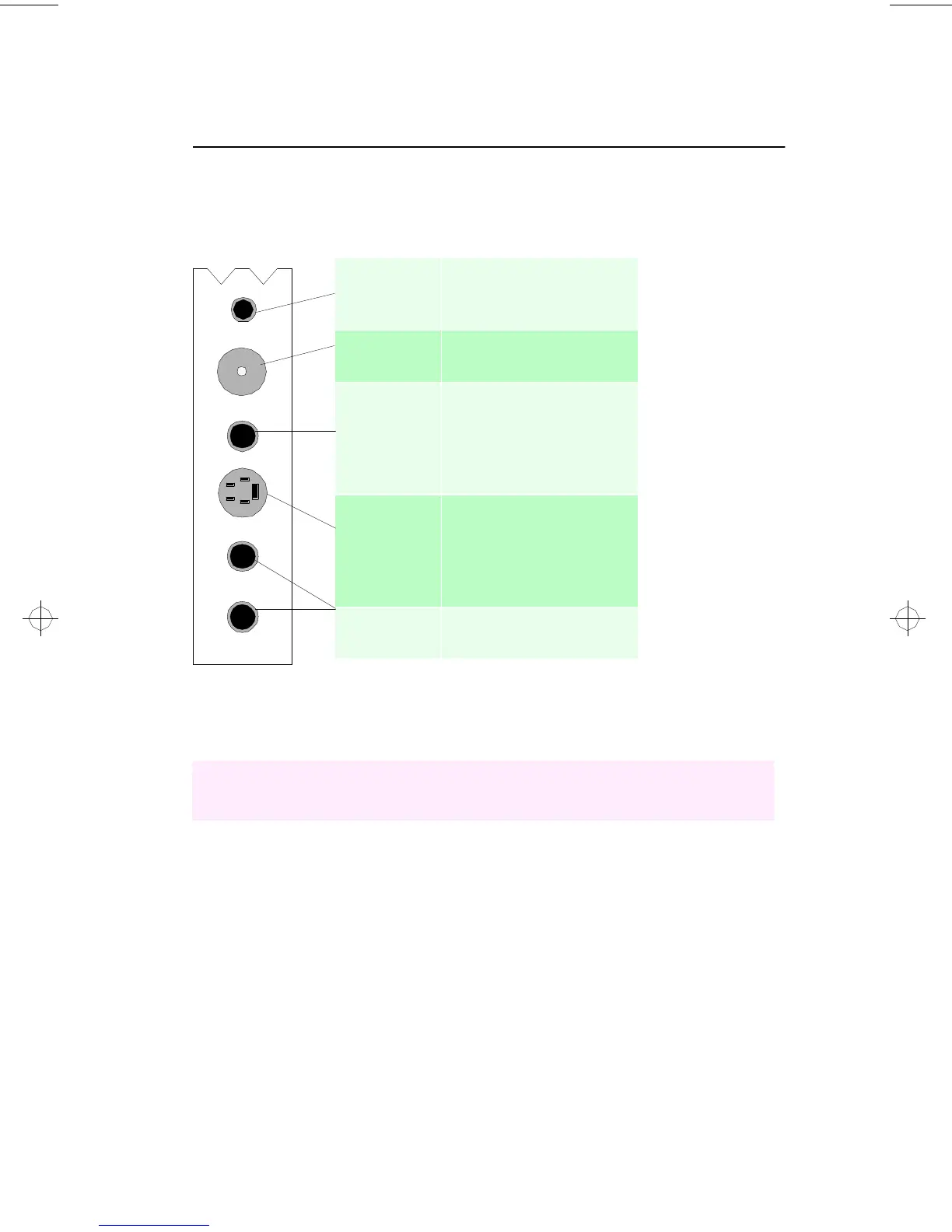

ATI-TV Connectors
The TV Tuner provides stereo audio input, audio output, and three video
input connectors:
TIP: If your video source provides Composite video and
S-Video, S-Video will produce better results.
Audio Out
For audio output to your
sound card or powered
speakers
CATV
For input from cable TV
or antenna.
Composite
Video
Input
Use a standard cable
fitted with RCA phono
plugs to attach your
video camera, VCR, or
laser disk player.
S-Video
Input
For input from S-VHS
sources. The enhanced
connector (with its
7 pins) adds control and
power pins.
Stereo
Audio Input
For stereo audio input
from external sources.
