In addition, below is a Profitrace sceenshot of the actual datatypes set. Note that “address” is
shown starting at address zero in an implied array (20 bytes from address 0 to address 19.) The
data bytes shown in the Q46H table is simply listed as the actual first received data byte to the
last, or 1-20. So, when parsing in a particular PLC/PC master, be aware that the first data byte
showing in the master may start at “address 0.”

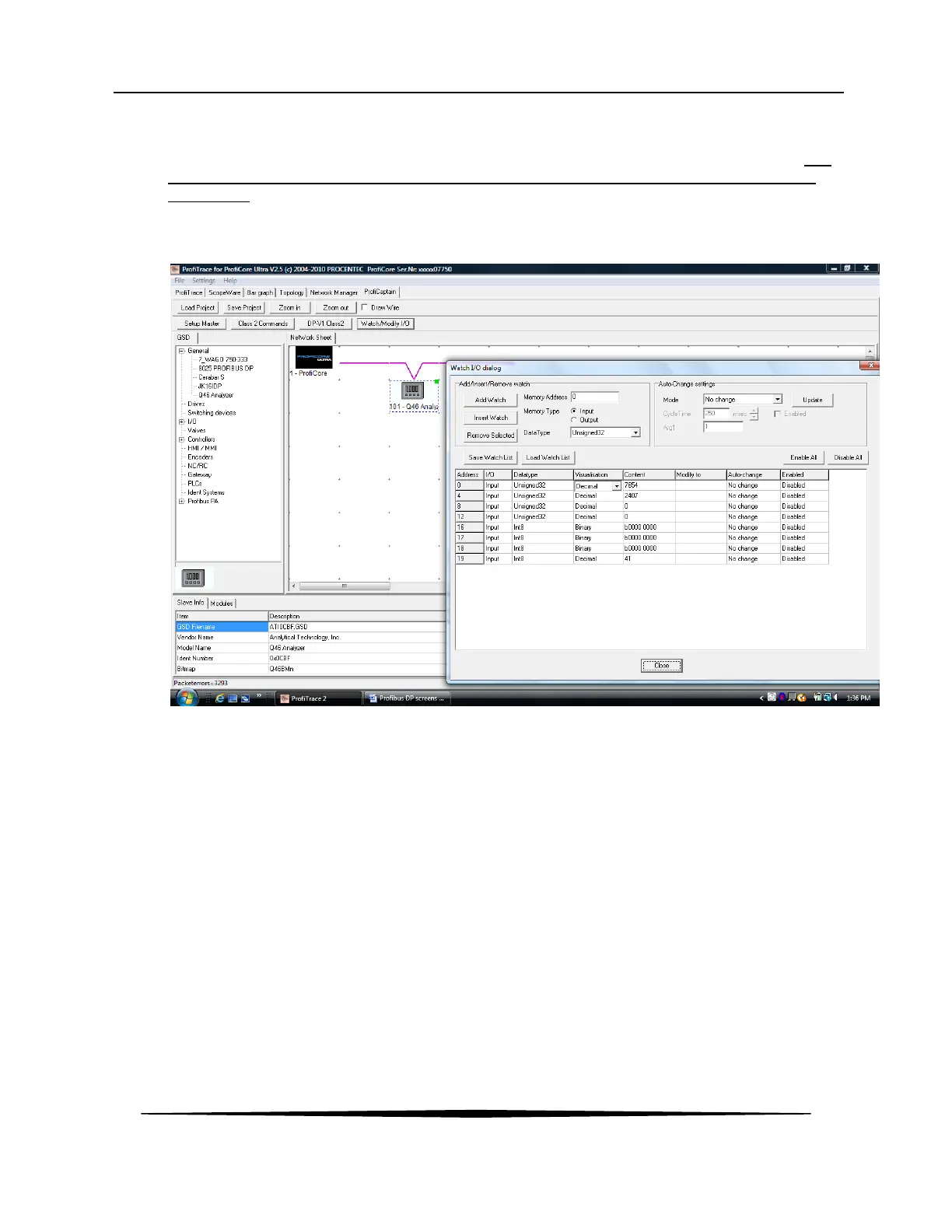

Figure 7 - Q46H ProfiTrace Raw Data Parse
1.8 Commissioning and Start-up, Data Tables
To allow very quick and simple network connections, the Q46 accepts a standard Profibus DP
DB-9 adapter on the side of the enclosure. Details involving wiring this connector into the
network, and commissioning the instrument are to be done by certified network installers. The
details involving full commissioning of the instrument are too specialized and too vast to cover in
this document.
