ATI Technologies Q46 - Figure 1 - Profibus Connection

ATI Q46 Profibus Communications Manual
4
O&M Manual
Rev-E (2/16)
Q46 monitors equipped with the Profibus option board contain a DB-9 connector on the side of
the enclosure. It is the responsibility of the system installer to provide the mating Profibus
compliant connector.

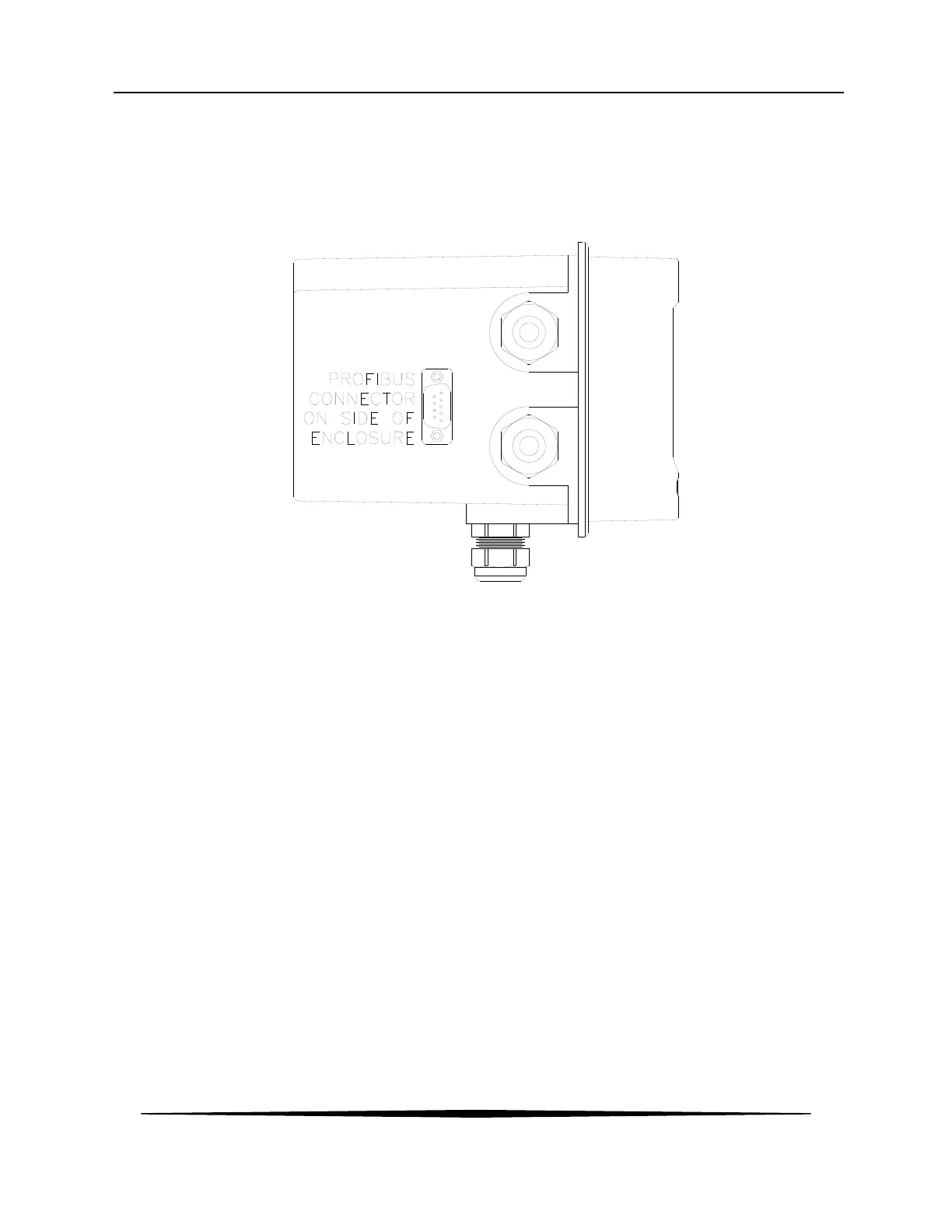

Figure 1 - Profibus Sealed/IP67 Connection
