Atlantic Technology 4.5 PBM User Manual

○○○○○○○○○○○○○○○○○○○○○○○○○○
6
○○○○○○○○○○○○○○○○○○○○○○○○○○
Model 4.5 PBM

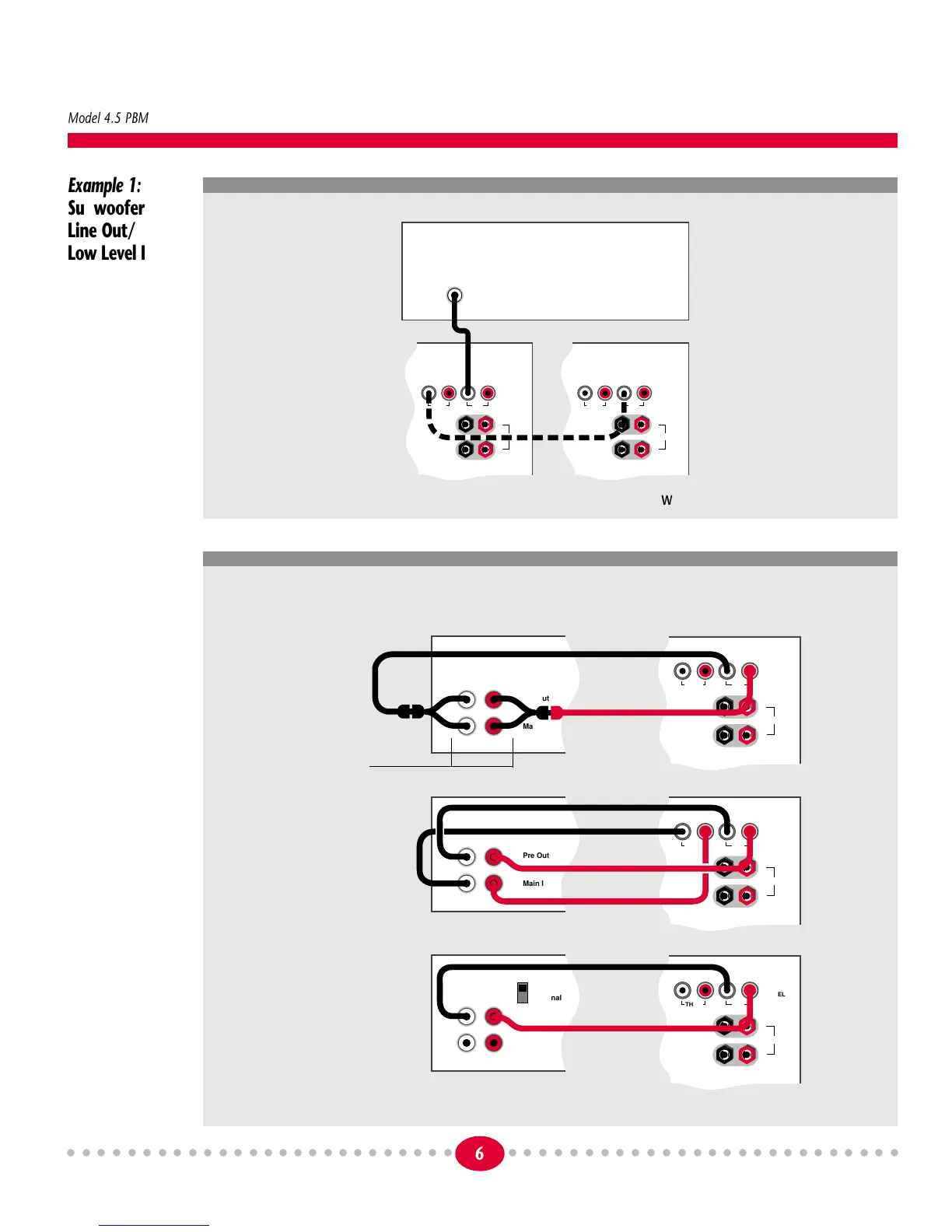

Example 1:
Subwoofer
Line Out/
Low Level In
Before using this
connection
method, please
see the Important
Note on page 4.
Example 2:
Preamp Line
Out/Low
Level In for
1 Subwoofer
This arrangement
is for owners of
stereo receivers/
amplifiers with
Preamp outputs.
If your receiver/
amplifier uses
jumper links be-
tween the Pre-out
and Main In, then
you must remove
them and use
option 1 or 2. If
your receiver/
amplifier uses a
switch instead of
connectors, then
use option 3.
Option 1
Option 3
Option 2
L/
MONO
R
HIGH
LEVEL
LOW
LEVEL
THRU
IN
IN
L/
MONO
R
HIGH
LEVEL
LOW
LEVEL
THRU
IN
IN
L/
MONO
R
HIGH
LEVEL
LOW
LEVEL
THRU
IN
IN
Single Sub Woofer
Pre Out
Main In
LR
Receiver/Amplifier/Processor
Pre Out
Main In
LR
Pre Out
Main In
LR
Internal
Pre Amp
External
Pre Out
Main In
LR
Y-adapters
L/
MONO
R
HIGH
LEVEL
LOW
LEVEL
THRU
IN
IN
L/
MONO
R
HIGH
LEVEL
LOW
LEVEL
THRU
IN
IN
Sub Woofer Out
Single Sub Woofer Optional Second Sub Woofer
Receiver/Amplifier/Processor

Atlantic Technology 4.5 PBM Specifications

Audio Specifications

variable low pass output	50-150 Hz, 12 dB/Octave
fixed low-pass filter	24 dB/Octave 180 Hz
frequency response	35-180 Hz ±3 dB
peak output (SPL)	105 dB

Amplifier

amplifier power	150 Watts RMS
amplifier distortion	<0.01 %
amplifier class	G

Weight and Dimensions

dimensions	17.48in x 11.81in x 15.57in; 440mm x 300mm x 395mm
weight	37 lbs.; 16.8 kg
