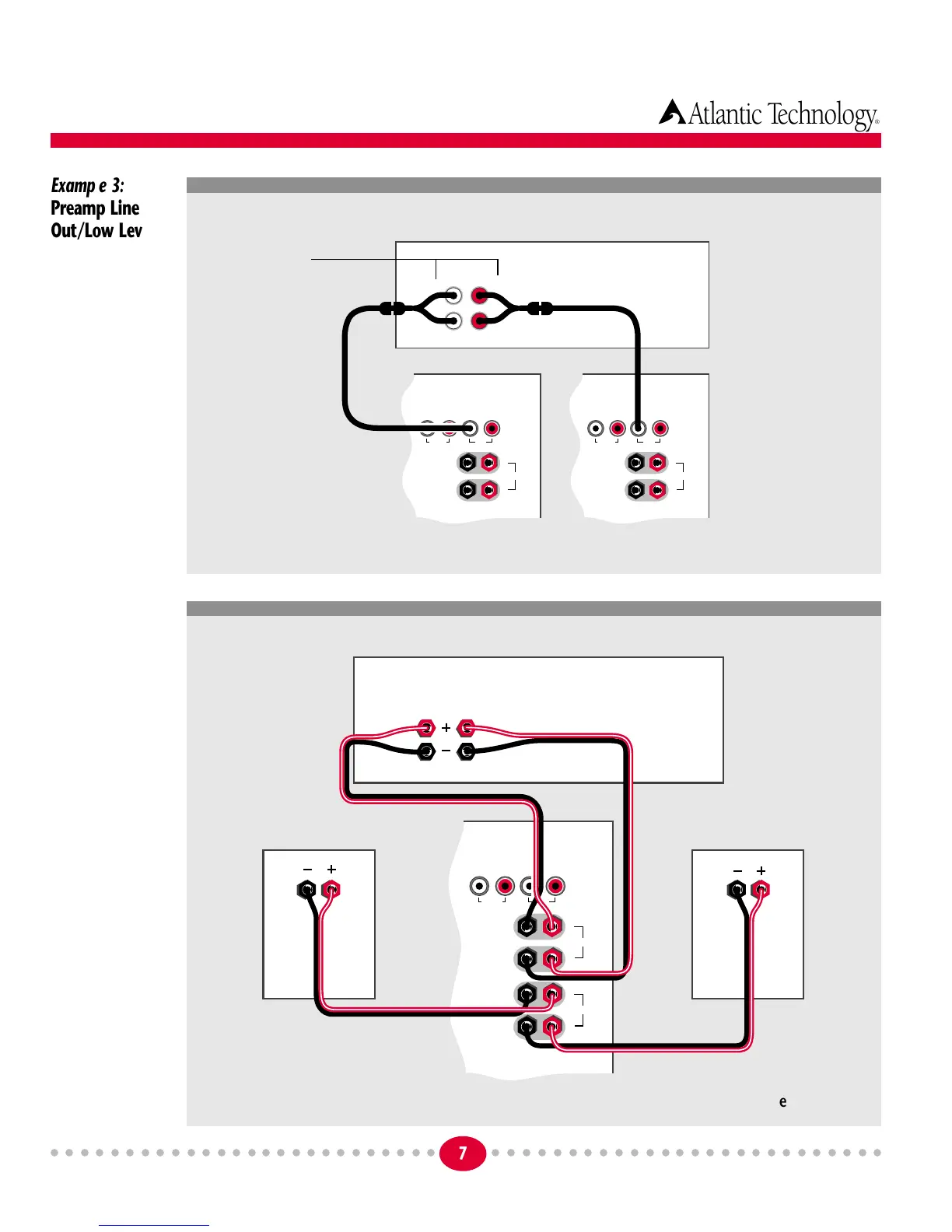

Example 3:
Preamp Line
Out/Low Level
In for
2 Subwoofers
Note that the
L/MONO input is
used on both sub-
woofers. Instead
of Y-adapters, you
may also use the
THRU outputs to
connect back to
the Main Inputs as
shown in Option
2 of Example 2.
L/
MONO
R
HIGH
LEVEL
LOW
LEVEL
THRU
IN
IN
L/
MONO
R
HIGH
LEVEL
LOW
LEVEL
THRU
IN
IN
Pre Out
Main In
LR
Left Sub Woofer Right Sub Woofer
Receiver/Amplifier/Processor
Y-adapters
Left Right
Main Speakers
L/
MONO
R
HIGH
LEVEL
LOW
LEVEL
THRU
IN
IN
L
R
THRU
Sub Woofer
Left Front Speaker
Right Front Speaker
Receiver/Amplifier
Example 4:
Speaker Out/
High Level In for
1 Subwoofer
This is the
recommended
method for
connecting the
4.5 PBM to a
discrete 5.1
channel. Please
the the Important
Note on page 4.

Atlantic Technology 4.5 PBM Specifications

Audio Specifications

variable low pass output	50-150 Hz, 12 dB/Octave
fixed low-pass filter	24 dB/Octave 180 Hz
frequency response	35-180 Hz ±3 dB
peak output (SPL)	105 dB

Amplifier

amplifier power	150 Watts RMS
amplifier distortion	<0.01 %
amplifier class	G

Weight and Dimensions

dimensions	17.48in x 11.81in x 15.57in; 440mm x 300mm x 395mm
weight	37 lbs.; 16.8 kg
