14

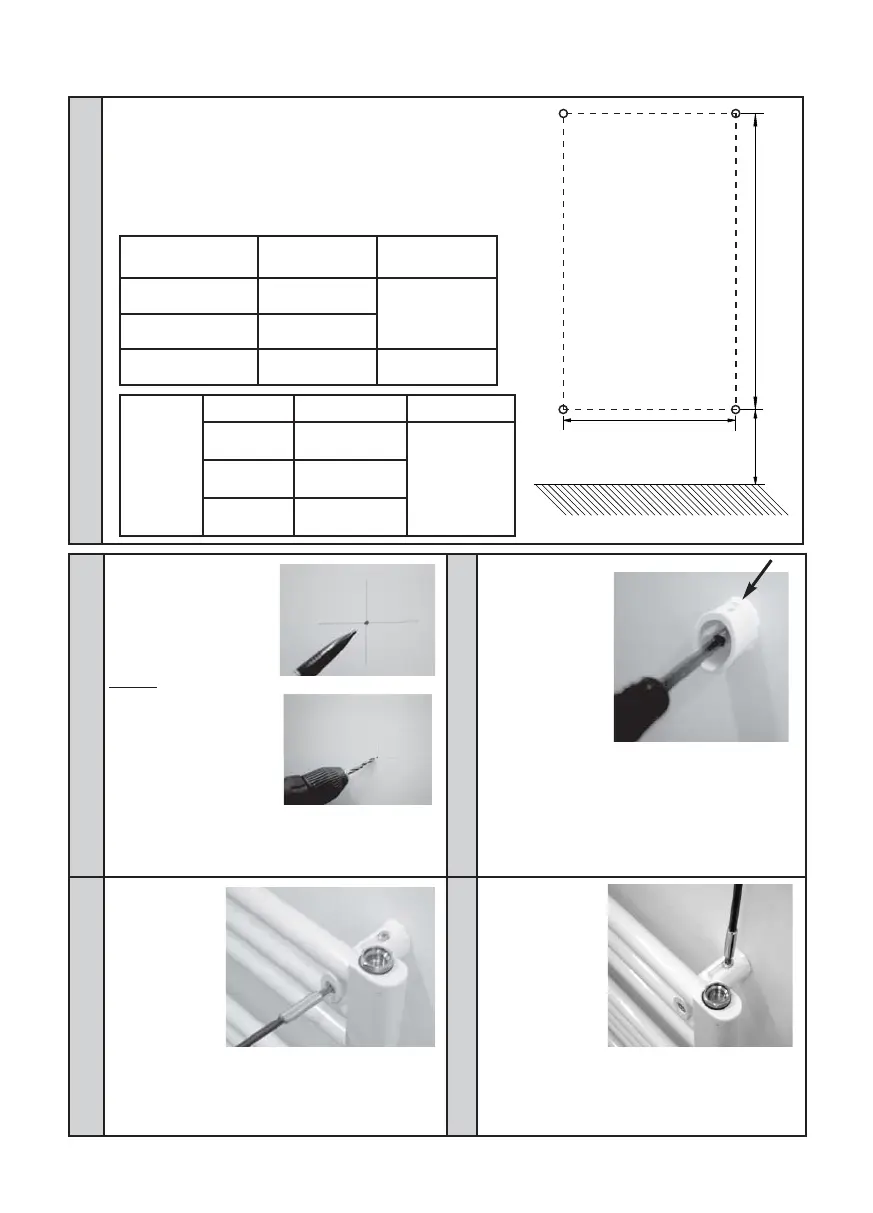

2) How to install the device ?
1
Unfasten the flaps on the lid and position it against the
wall with the lower flap folded back and placed on the
floor or at the desired installation height. Mark off the 4
drill holes through the packaging, without drilling them,
and then remove the packaging.
B
361 mm
A
SOL
Power
Measurement (A) Measurement (B)
500 W 779
350
750 W 1230
1000 W 1599 400
2
Carefully mark the 4
drilling points with a
pencil (draw a cross,
2cm wide).
Drill the 4 holes.
Note:
The pins sup-
plied with the device
are of the standard
type. In case of a parti-
cular stand, use appro-
priate pins.
3
Screw the
sleeve in place.
Fit the screws
with the
washers provi-
ded.
4
Screw the
pins on the
tubes
without
locking them.
Check they
are correctly
positioned
by inserting them in the sleeves, with the
device. After finding the right position, tighten
the screws on each pin.
5
Place the
device on the
wall, in the
sleeves.
Tighten all the
locking
screws. Fit the
caps on the
ends of the pins.
Model
width
400 mm
Power
Measurement (A) Measurement (B)
300 W 574
270500 W 1025
750 W 1476
