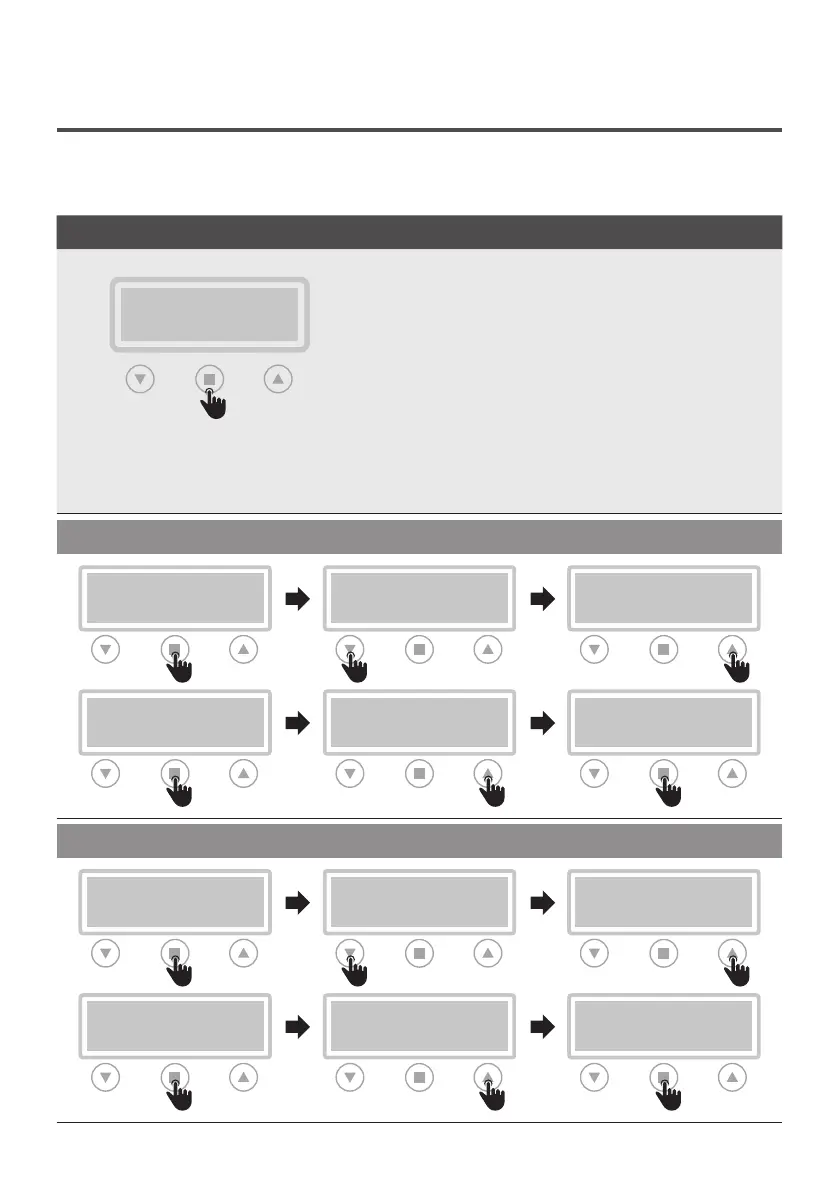

OPERATION (EMPTY/FILL)
OPERATION
>FILL
M06 PROGRAM
>OPERATION
>EXIT
M06 PROGRAM
>OPERATION
>OPERATION
EMPTY
OPERATION
>EMPTY
M06 PROGRAM
TYPE (POTABLE/WASTE WATER)
TYPE
>WASTE
M06 PROGRAM
>TYPE
>EXIT
M06 PROGRAM
>TYPE
>TYPE
POTABLE
TYPE
>POTABLE
ACCESS TO FUNCTION MODIFIED PARAMETERS
M05 PUMP 2
>M06 PROGRAM
SELF HOLDING OPERATION
If the self holding is ON and the water level is going up, G1
is up, G2 goes up and starts pump 1, G3 goes up and starts
pump 2. If the water level is going down, G3 goes down
but does not stop pump 2, G2 goes down but it does not
stop pump 1, G1 goes down and stops both pumps.
OPERATION
Emptying selection “EMPTY” or filling ”FILL“
TYPE
Selection of clear or dirty water types
SELF HOLDING
Mostly used for waste water applications: 4 floating switches
has been used (G1 stop the pumps, G2 start pump 1, G3
start pump 2, G4 max level alarm and start both pumps)
BMS (remote emergency start/stop)
Possibility to start/stop the control panel by remote button
MULTI TANK
Possibility of use with 2 pumps in separate tanks
