Atlantic EPIC 2D Series - Epic 2 D 400

7

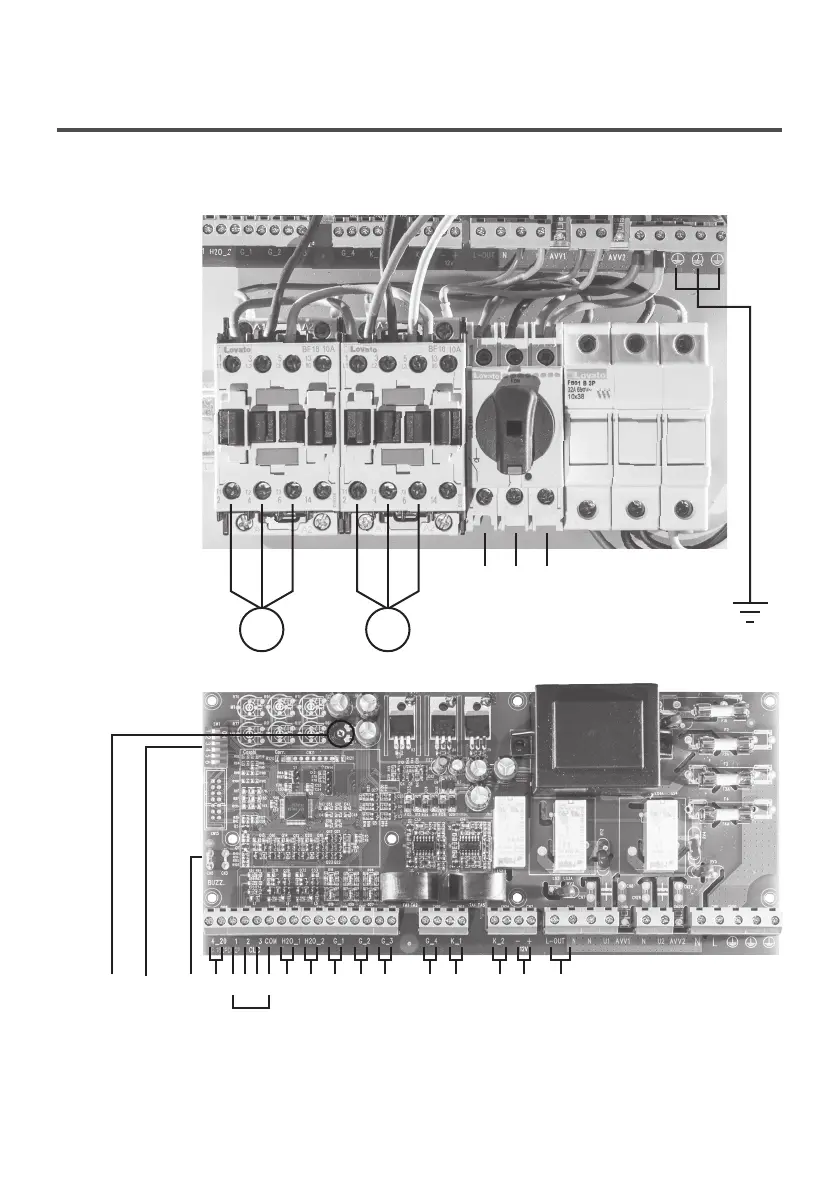

EPIC 2DInstallation
EPIC 2D 400
400 V
50÷60 Hz
TR SU V W
M1
U V W
M2
H2O water in oil chamber 1
G1 float switch min level
G2 float switch 2 G3 float switch 3
G4 float switch max level
K1 klixon 1
12 V output alarm
230 V output alarm
2 3 C
CLC
buzzer alarm
SW1 dip-switch
trimmer 1
1
H2O water in oil chamber 2
K2 klixon 2
4÷20 mA sensor
