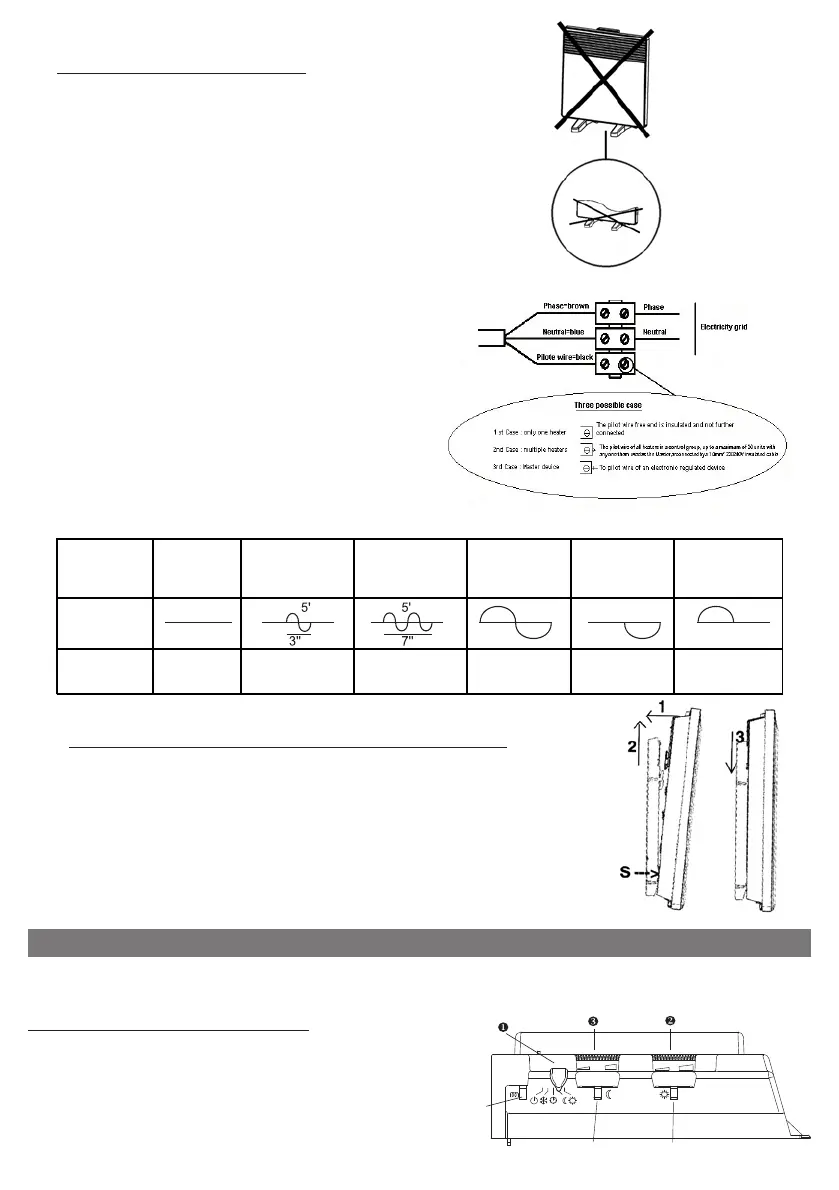

2-2) Connect the panel heater :
44
44
4
- The panel heater must be powered with 220-240V 50Hz
- The panel heater must be connected to the mains by a 3-
wire cable (Brown= Phase, Blue=Neutral, Black=Pilot wire)
by means of a connection box. In humid areas such as
bathrooms and kitchens the connection box must be installed
at least 25 cm above the floor.
- Earthing is prohibited.
Do not connect the pilot wire ( black ) to earth.
- The heater must be installed by a qualified electrician in
accordance with the local regulations. The heater and the
pilot (black) wire must NOT be connected to earth. If the
heater wire is damaged, it must be replaced by a qualified
person to avoid hazard.
- If a pilot or piloted panel heater is protected by a 30mA
differential (e.g. bathroom) the pilot wire’s power supply.
Table of commands the panel heater can receive on its pilot wire. To be measured between the pilot wire and the neutral.
44
44
4
USING THE PANEL HEATER
2-3) Locking the panel heater onto its wall mounting :
- Mount the panel heater on mounting S as shown in the diagram.
- To bring back the panel heater towards the support then to raise (arrow 1 and 2).
- To introduce the legs of the support into the holes of the panel heater, to lower
(arrow 3), your panel heater is fixed.
1) Description of the control unit :
55
55
5
➔ Mode switch knob.
➔ COMFORT temperature set value adjustment knob.
➔ ECO temperature set value adjustment knob.
V1 ➔ Heating light.
V2 ➔ COMFORT mode light.
V3 ➔ ECO light.
Commands
Received
No current
Alternation no
current (4'57 '')
phase 230V (3'')
Alternation no
current (4'53 '')
phase 230V (7'')
Complete
alternation 230V
Negative half-
alternation-115V
Positive half-
alternation +115V
Oscilloscope
Réf/Neutral
Mode
obtained
Comfort Comfort-1°C Comfort- 2°C Eco Anti-freeze
Stop heating -
Load shedding
33
33
3bis
V3
V2
V1
5
-3,5
55
55
5
