Atlantic Oniris RAF3P-i2g - Identification of the Appliance

24
23
instructions from the
pilot wire.
Instructions
received
Oscilloscope Ref./
Neutral
Mode obtained
0 Volt
COMFORT
230 V
3 s/5 min
COMFORT – 1° C
230 V
7 s/5 min
COMFORT – 2° C
230 V
ECO
– 115 V negative FROST
PROTECTION
+ 115 V positive STOP HEATING
Within the context of programming using the pilot wire or a carrier
current, the frost protection or power-cut off instructions have
priority.
The delay for switching from the Comfort mode to the Eco mode is
approximately 12 seconds.
If you have been unable to resolve your problem, contact a professional with the details of the
appliance readily available. Record the room temperature and provide details of any programming
system you use. You may also need to provide the information included in the Information section of
the Expert Menu.

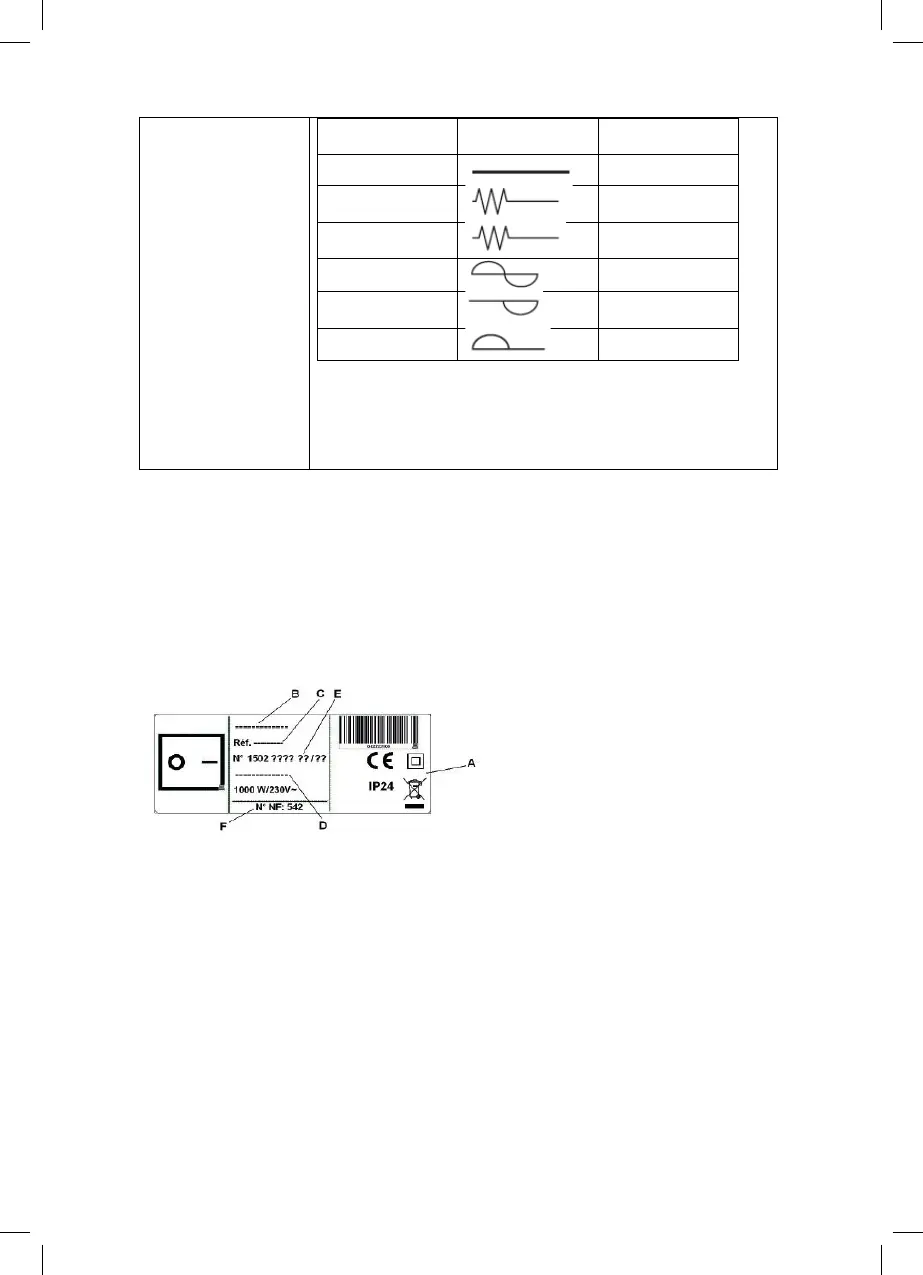

IDENTIFICATION OF THE APPLIANCE
Before contacting our pre-sales and after-sales department, please note the appliance's reference and
serial number. This information is written on the identification plate located on the right-hand side
of the appliance.
A Standards, quality labels
B Commercial name
C Commercial code
D Manufacturer's reference
E Serial No.
F Manufacturer's No.
(Non-contractual image)
