6
7B
For drywall mounting, using a stud finder, level and a tape
measure, mark four holes xx inches apart. Drill four 3/16 inch
holes. Use a Phillips screwdriver to attach the wall mount (J)
with four screws (CC).
For masonry mounting, use a level and a tape measure, mark
four holes xx inches apart. Drill four 3/8 inch holes. Use a
hammer to pound in four (GG) wall anchors. Use a Phillips
screwdriver to attach the wall mount (J) with four screws (CC).
HH
x4
JJ
x4

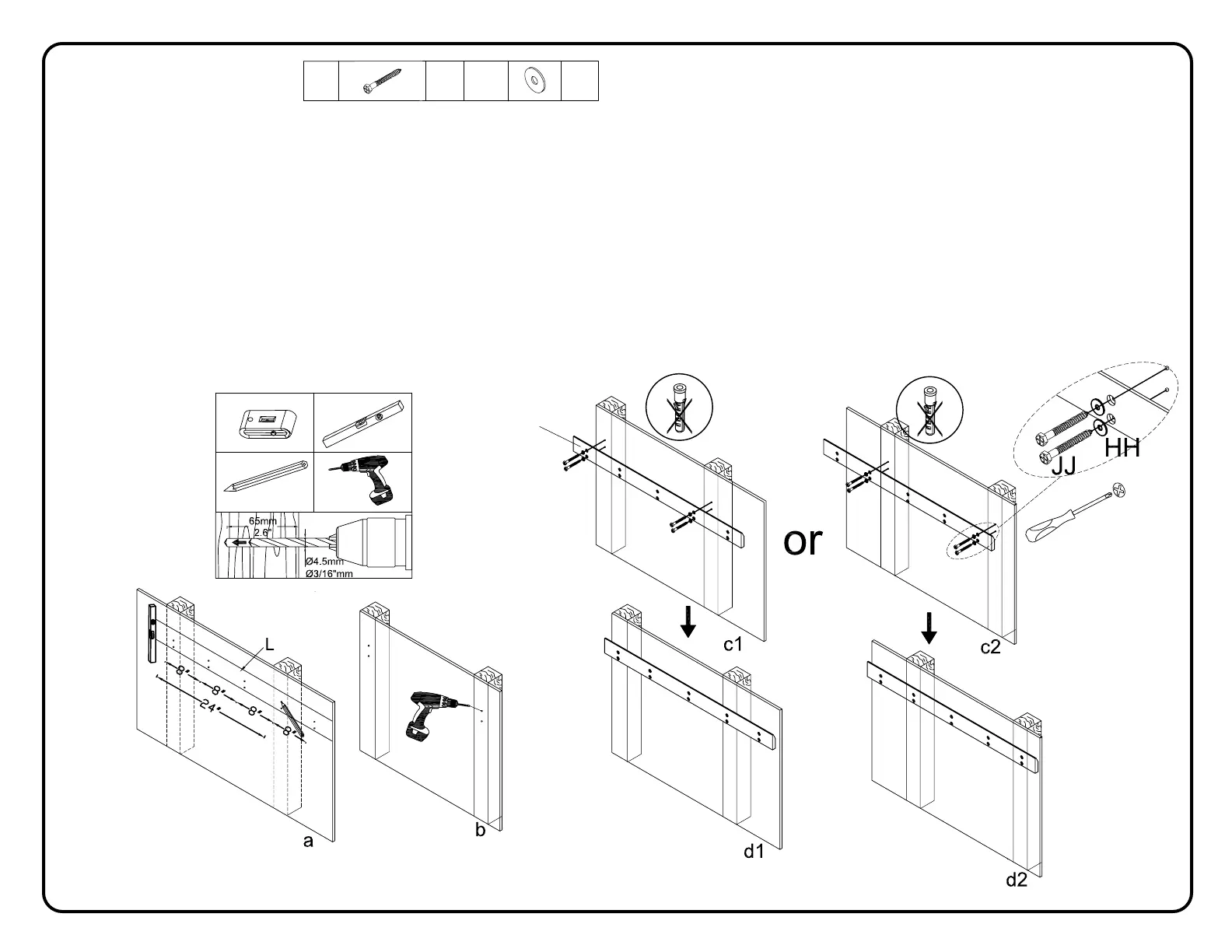

Locate two adjacent studs with a stud finder. Hold the
paper template (L) against the wall to mark four holes.
Check level with the bubble level and drill holes with a
3/16” (4.5mm) drill bit to a depth of 2.6” (65mm). Attach
wall cleat (J) with four bolts (JJ) and washers (HH) using
a Phillips screwdriver. Note two options for horizontal
mounting position shown in c1 and c2.
Mount on Drywall Studs 24” Apart
Montaje en Panel de Yeso
Vigas de 24” Separación
Localice dos vigas con un detector de vigas. Sostén la
plantilla de papel (L) contra la pared para marcar cuatro
agujeros. Comprobar el nivel con el nivel de burbuja y
taladar los orificios con una broca de 3/16" (4,5 mm) a una
profundidad de 2,6" (65 mm). Fije la soporte de pared (J)
con cuatro pernos (JJ) y arandelas (HH) usando un
destornillador Phillips. Observe las dos opciones de posición
de montaje horizontal que se muestran en c1 y c2.
J
