7
7C
For drywall mounting, using a stud finder, level and a tape
measure, mark four holes xx inches apart. Drill four 3/16 inch
holes. Use a Phillips screwdriver to attach the wall mount (J)
with four screws (CC).
For masonry mounting, use a level and a tape measure, mark
four holes xx inches apart. Drill four 3/8 inch holes. Use a
hammer to pound in four (GG) wall anchors. Use a Phillips
screwdriver to attach the wall mount (J) with four screws (CC).
HH
x5
JJ
x5

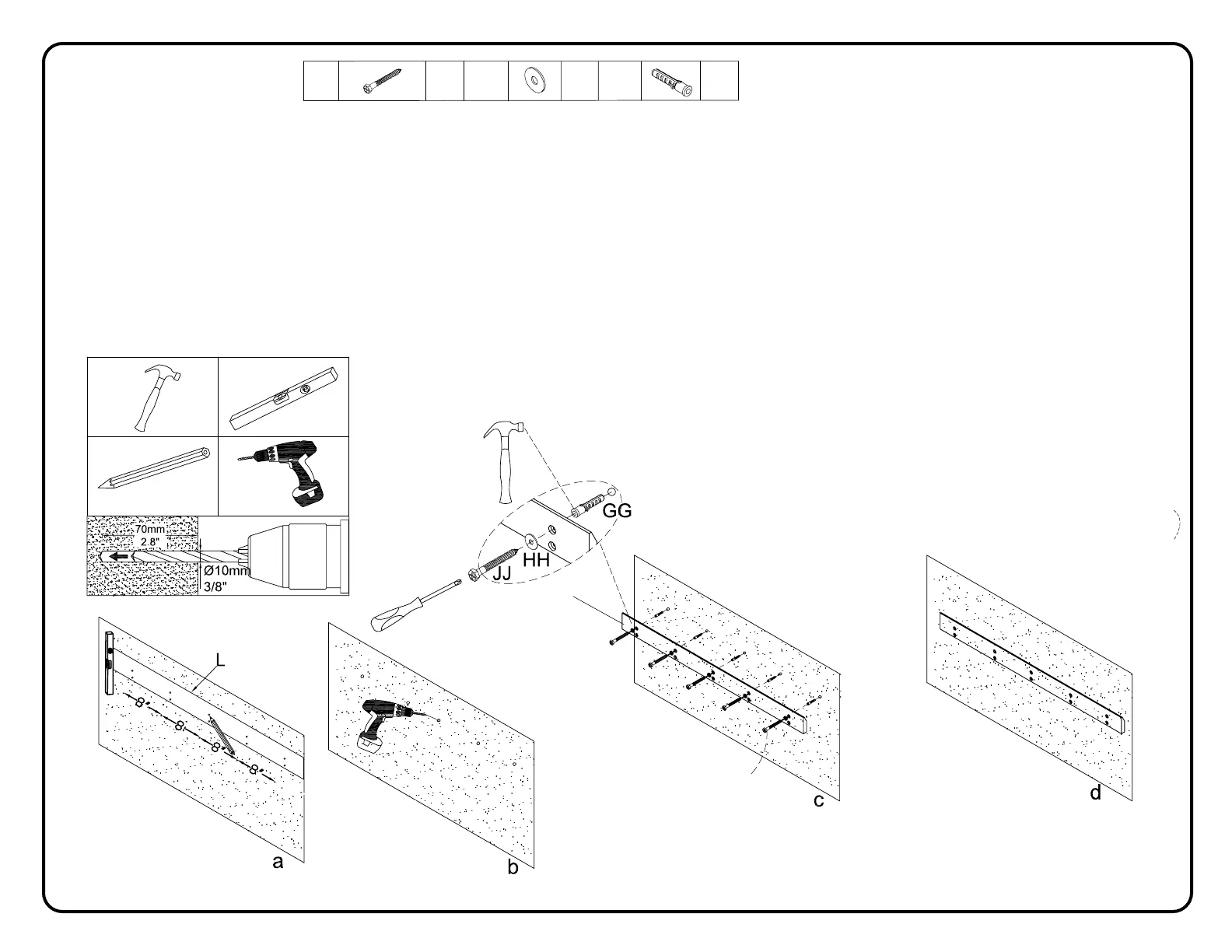

Hold the paper template (L) against the wall to mark five
holes. Check level with the bubble level and drill holes
with a 3/8” (10mm) drill bit to a depth of 2.8” (70mm). Tap
five wall anchors (GG) into the wall using a hammer.
Attach wall cleat (J) with five bolts (JJ) and washers (HH)
using a Phillips screwdriver.
Mount on Masonry
Montaje en Mamposteria
Sostén la plantilla de papel (L) contra la pared para marcar
cinco agujeros. Comprobar el nivel con el nivel de burbuja y
taladar los orificios con una broca de 3/8" (10 mm) a una
profundidad de 2,8" (70 mm). Golpee cinco anclajes de
pared (GG) en la pared con un martillo. Fije la soporte de
pared (J) con cinco pernos (JJ) y arandelas (HH) usando un
destornillador Phillips.
GG x5
J
