CONNECTING THE APPLIANCE
Connection rules
-The appliance must be connected to a 230 V, 50 Hz single-phase power
supply.
-The appliance’s power supply must be connected directly to the
network after the circuit-breaker without an intermediate switch.
-The appliance will be connected to the mains by means of the appliance
cable via a connection box.
-The power supply must be connected directly to the network after
the all-pole cut-off device in accordance with the installation rules.
-If the power supply cable is damaged, it must be replaced by the
manufacturer, their after-sales service or an individual with a similar
qualication in order to avoid any danger.

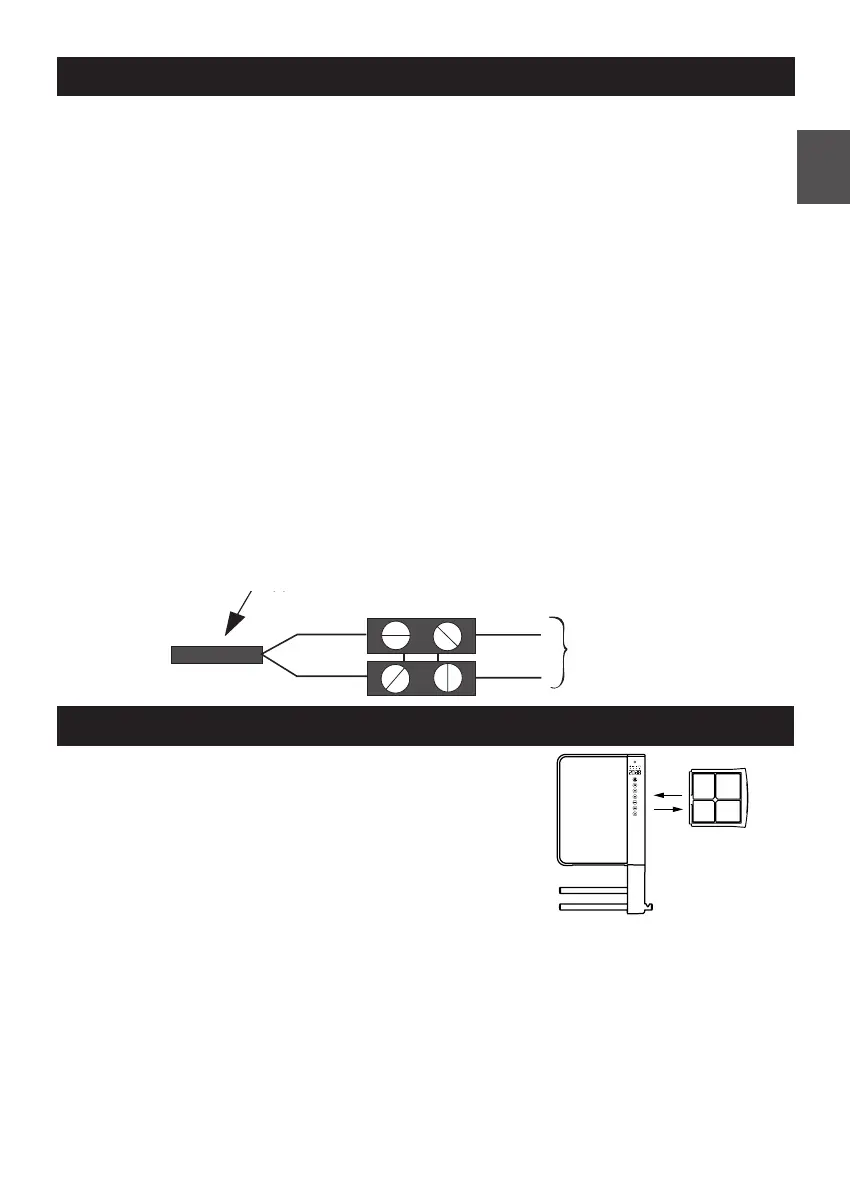

Appliance wiring diagram
Switch the power off and connect the wires as shown in the wiring
diagram below:
Câble de l'appareil
Phase=marron
Neutre=bleu
PHASE
NEUTRE
Réseau
Electrique
MAINTENANCE
This appliance is tted with a lter to
protect the heating element against dust
and dirt.
The lter can be removed for easy cleaning
with water.
To keep the appliance in perfect condition,
clean the lter once every six months, making sure you replace it.
About once a month, a message will tell you to “Clean lter”. You must
then clean it.
Even when the screen displays the message indicated above, the
appliance continues to work in active mode.
If you press a button, the integrated counter is reset and the display
indicates 1 additional month of operation.
Appliance cable
Live-brown
Neutral-blue
LIVE
NEUTRAL
Electricity
network
