9. After-Sales service

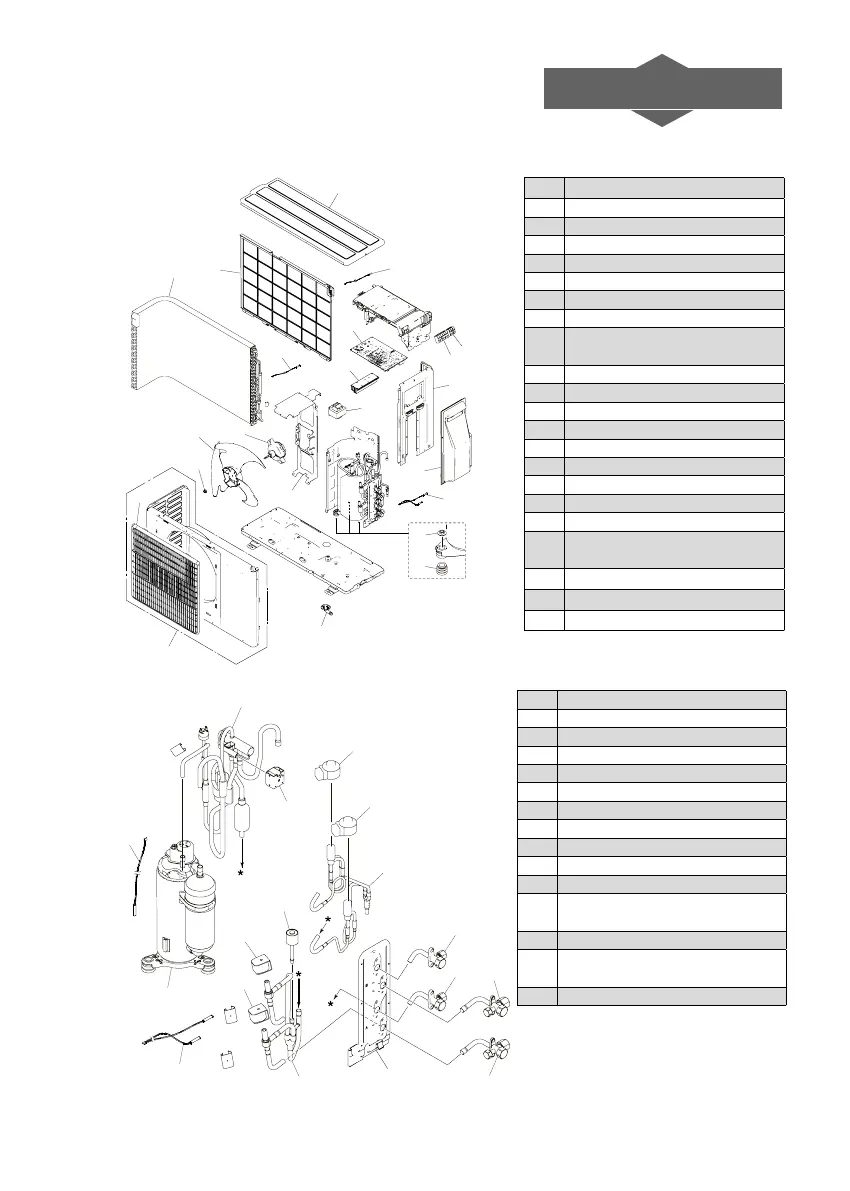

Compressor:
1 
2 Outside temperature sensor
3 
4 
5 Control board
6 Heat sink
7 Reactor coil
9 Terminal block access hatch
10 Discharge and exchanger
sensors
11 Nut
12 Silent block
13 Condensate connection
15 Front panel
16 Ventilation grille
17 Nut
18 Propeller fan
19 Fan motor
20 Motor mounting
21 Heat exchanger temperature
sensor
22 Heat exchanger
23 Protective grille
a control box
1
23
9
20
7
15
8
16
18
19
22
10
21
2
17
11
12
13
5
4
3
6
50
51
61
65
66
52
53
54
55
56
62
67
63
64
56
55
B
a
A
A
B
B
50 
51 Valve coil
52 Expansion valve (L=500)
53 Expansion valve (L=650)
54 Expansion valve assembly
55 
56 
61 Solenoid valve assembly
62 Pressure sensor
63 Solenoid coil (L = 330)
64 Solenoid coil (L = 450)
65 Outgoing gas line temperature
sensors
66 Compressor
67 Compressor temperature
sensor
a Valve holder
