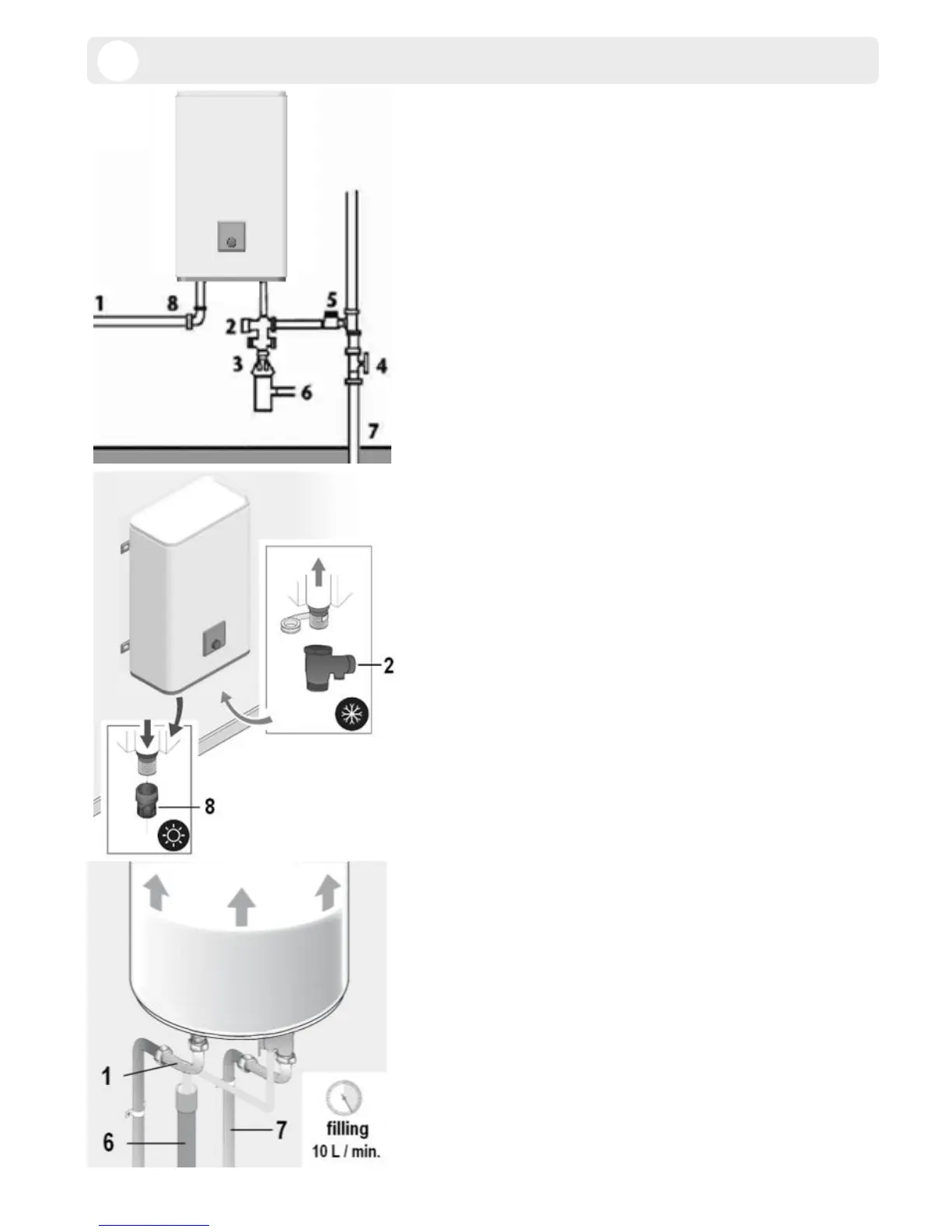

1. Hot water tube
2. Safety relief valve
3. Funnel
4. Pressure reducer
recommended if pressure >
0,5 MPa (5 bar)
5. Stop valve
6. Drain to sewage
7. Cold water pipe
8. Dielectric union
